Page 1

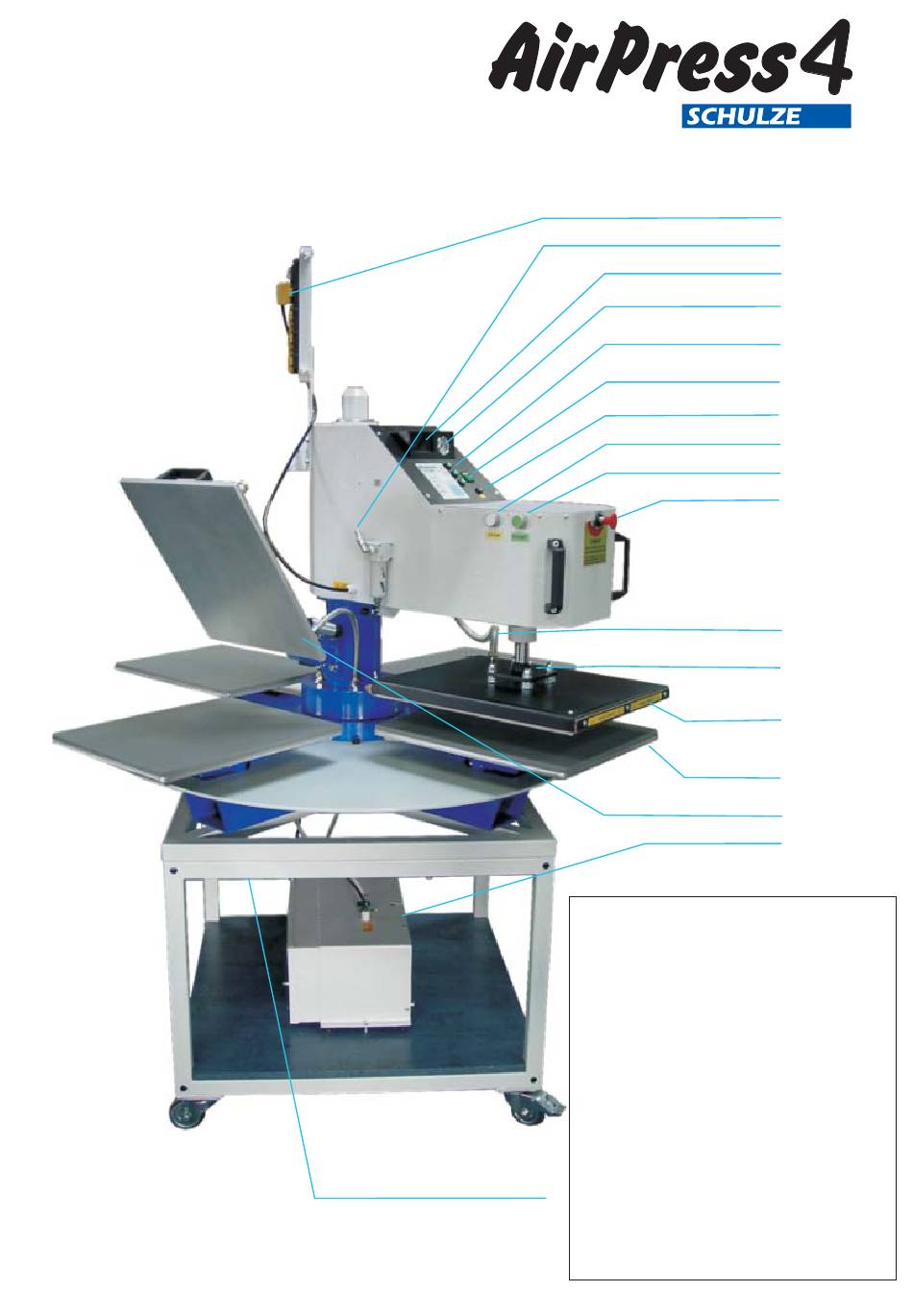

USE INSTRUCTIONS Pneumatical Press with 4 working platen power connection cable compressed air adatper display pressure display temperature and time adjustor main switch fuse 12amp pressure switch OFF pressure switch ON emergency OFF switch power cord of the heat plate fastening screw of the heat plate heat plate...
Page 2
Switch ON The press should be operated by trained staff only and, of course, after acknoledging these manual intsructions. Before the press to be switched on first time, please check the plugin's proper conditions and also the safe connection of the neutral cable. The press has to be switched on with the green rocker switch.
Operation instructions The press should be operated by trained staff only. PROGRAMMING Temperature 1. Press button 1 and hold for 5sec until LED flashes. 2. Upon the flashing LED the display shows the adjusted temperature. Pressure The programming mode has been switched on. Time 0,3 bar max.0,6 bar...
Page 5
Controlling unit of the Airpress´s pneumatic red/czerwony blue/niebieski Micro switch Activates the control above the work plate only. blue/niebieski red/czerwony pressure switch ON Electromagnet red/czerwony red/czerwony pressure switch ON red/czerwony Moving of the red/czerwony heat plate red/czerwony Micro switch white/bialy white/bialy white/bialy red/czerwony...
Page 6
Cooling unit to be filled with water. 1. Unscrew but air deventilation valves and swing the cooling board slightly up. 2. Unplug the cooling pump and then unscrew the cover of the pump. 3. Remove the connection hose carefully. 4. Open up the water valve for filling up the unit. Closed Open Fill up the cooling unit by a water hose or a...
Page 7
Temperature tolerance upon 180°C - /+ °C Series number ....EG conformity declaration according EG-rules for machines 89/37 EC Die Walter Schulze GmbH Schmalenbachstr.15 D-12057 Berlin...
