Bedienungsanleitung
Version 17.03
Transferpresse
BluePRESSLine
DTG-4-S
DTG Basic S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BluePRESSLine DTG-4-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Schulze BluePRESSLine DTG-4-S

  • Page 1 Bedienungsanleitung Version 17.03 Transferpresse BluePRESSLine DTG-4-S DTG Basic S...
  • Page 3: Table Of Contents

    Einführung Inhalt Einführung Inhalt Abbildung der Presse Technische Daten Sicherheitsvorkehrungen der Presse Sicherheitsvorkehrungen am Arbeitsplatz Inbetriebnahme Hinweise für den Transport Installation der Presse Stromversorgung Inbetriebnahme der Presse Arbeiten mit der Presse Programmierung der Elektronik Fehlermeldungen der Elektronik „ECO”Modus Vorpressen Anwendungsbereich und Beispieleinstellungen der Presse Druckeinstellung Spanneinstellung der Federn Einstellung des Elektromagneten...
  • Page 4: Abbildung Der Presse

    Abbildung der Presse 1. Spanneinstellung der Federn 8. Aufsatz für Elektromagnet 2. Basisplatte perforiert 9. Druckhebel mit Gummigriff 3. Heizplatte 10. Elektronik 4. Griff ( nur in DTG-4-S) 11. Hauptsicherung 5. STOP – Taste 12. Hauptschalter 6. Elektromagnet 13. Spiralenschlauch 7.
  • Page 5: Sicherheitsvorkehrungen Am Arbeitsplatz

    Sollte diese Prüfung Abweichungen von der Funktionalität oder Sicherheit der Maschine aufweisen, muss das aufgezeichnet werden und innerhalb von 7 Tagen in einer schriftlichen Form der Firma Walter Schulze mitgeteilt werden. Arbeitgeber, Sicherheitsingenieur oder eine andere dazu befähigte Person muss diese Prüfung aufzeichnen. Bis zur Aufklärung dieser Situation ist es verboten die Presse zu benutzen.
  • Page 6: Inbetriebnahme

    Inbetriebnahme Hinweise für den Transport Die BluePRESSLine DTG Presse wird für den Transport in einen Karton eingepackt und auf die Palette gestellt. Prüfen Sie gleich nach dem Erhalten der Presse, ob die Verpackung im ordnungsgemäßen Zustand ist und ob die Presse nicht beschädigt ist. Wenn Sie die Presse zu einem späteren Zeitpunkt versenden müssen, bitten wir Sie die Presse genauso zu verpacken, wie Sie sie erhalten haben.
  • Page 7: Fehlermeldungen Der Elektronik

    Fehlermeldungen der Elektronik Die Elektronik der Presse überwacht die wichtigsten Funktionen der Presse. Hier eine Liste möglichen Meldungen: ERR.1 – keine Verbindung von der Elektronik zu dem Temperaturfühler auf der Heizplatte, (Temperaturfühler ist defekt) (Leitung unterbrochen) ERR.2 – Verbindung von der Elektronik zu dem Temperaturfühler auf der Heizplatte kurzgeschlossen, (Temperaturfühler defekt) ERR.3 –...
  • Page 8: Wartung

    Wartung Tägliche Wartung Die Arbeitsoberfläche der Heizplatte und der Basisplatte müssen sauber gehalten werden. Die Heizplatte können Sie mit einem sauberen trockenen Tuch reinigen. Vermeiden Sie den direkten Kontakt mit der Heizplatte - Verbrennungsgefahr. Das Silikongummi können Sie mit einem weichen Tuch reinigen.
  • Page 9: Austausch Der Silikonmatte

    Austausch der Silikonmatte Beim Austausch der Silikonmatte müssen Sie die Presse ausschalten, den Stecker aus der Steckdose ziehen und abwarten bis die Presse abgekühlt ist. Für den Austausch brauchen Sie eine neue Silikonmatte, Silikonkleber und eine Malerwalze zum Auftragen von dem Kleber. 1.
  • Page 10: Fehlerbehebung

    Temperatur auf dem Display - Temperatur Störung der Elektronik Elektronik reseten nach der Meldung bei Walter zu hoch/niedrig. Schulze GmbH Presse heizt sehr langsam hoch - 30 Minuten eine Hälfte der Heizplatte erreicht Eine der zwei Heizspiralen auf der Heizplatte ist...
  • Page 11: Schaltplan

    4.10 Schaltplan Version 17.03...
  • Page 12: Garantiebestimmungen

    4.11 Garantiebestimmungen Schulze Transferpressen und Maschinen zum Farbdruck haben eine Garantie von 24 Monaten. Diese Garantie betrifft die gesamte Konstruktion der Maschine, mechanische Teile, Elektronik und Verkleidung. Verschleißteile wie Silikongummi, Sicherungen und Schutzbezüge sind von der Garantie ausgenommen. Thermosicherungen, Temperaturfühler, Tasten und Knöpfe, Heizelemente für Transferpressen (wie BluePressLine Mug, Mug 4) und alle Federn in den Transferpressen und Maschinen zum Farbdruck bestimmt, haben eine Garantie von 6 Monaten oder 500 Pressvorgängen.
  • Page 13 Instruction Manual Version 17.03 Heat press BluePRESSLine DTG-4-S DTG Basic S...
  • Page 15: Introduction

    Introduction Content Introduction Content Illustration of the heat press Technical data Safety arrangements of the heat press Safety arrangements at the workplace Initiation Notes regarding transportation Installation of the heat press Power supply Initiation of the press Working with the heat press Programming of electronic devices Error codes „ECO”...
  • Page 16: Illustration Of The Heat Press

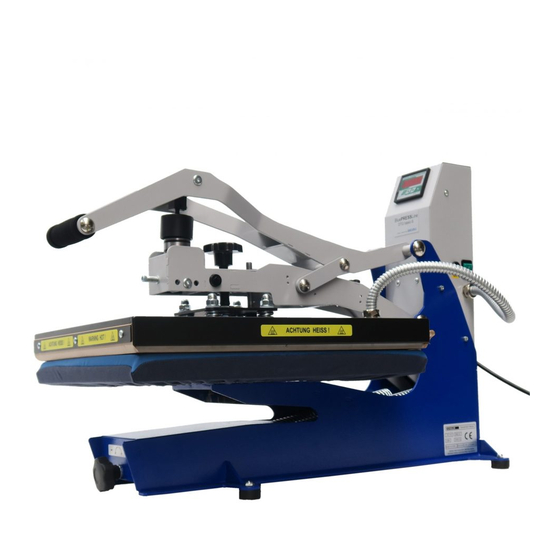

    Illustration of the heat press 1. Regulating knob for pressure adjustment of the springs 8. Coil stopper 2. Base plate with silicone foam 9. Pressing arm 3. Heating plate 10. Electronic 4. Grip (only in DTG-4-S) 11. Main fuse 5. STOP switch 12.
  • Page 17: Safety Arrangements At The Workplace

    After receiving the machine, check the packaging. The testing should be protocoled. If any irregularities regarding functionality or safety are found during the testing, these has to be noted and reported to Walter Schulze GmbH in written form within 7 days. Until the clarification the machine can not be used.
  • Page 18: Initiation

    Initiation Notes regarding transportation The machine is covered with a cardboard for transport and fixed with the pallet. Right after receiving you should check, if the cardboard and the machine are in good condition without damages. Do this just after receiving from the transportation company the goods and in accompany of a responsible person.
  • Page 19: Error Codes

    Error codes The heat press is equipped with an electronic, which is informing about incorrectly operating of the machine and shows up the error codes. The error codes mean as follows: ERR.1 – No connection of the electronic devices to the temperature sensor, (Temperature sensor defect/ cable not connected) ERR.2 –...
  • Page 20: Maintenance

    Maintenance Daily maintenance The surface of the base plate and heat plate needs to be clean all the time. The heat plate has to be cleaned with a clean and dry cloth. Do not touch the heat plate- danger of burns. Clean the silicon foam with a soft cloth. Use mild household cleaners. It is not allowed to use solvents or naphtha. Monthly maintenance Before starting the maintenance procedure, first turn off the heat press, remove the plug from the socket and wait, till the heat press gets cold.
  • Page 21: Instruction For The Replacement Of The Silicone Mat

    Instruction for the replacement of the silicone mat To replace the silicone mat the press has to be cold and disconnected from the electricity. For the replacement you need a new silicone mat, silicone glue, acetone and a paint roller. 1.
  • Page 22: Troubleshooting

    Troubleshooting Problem Possible reason Solution The green switch glows 1. Blown main fuse 12A 1. Replace the main fuse Display is not working 2. If fuse is ok, electronic failure 2. Replace the eletronic device Heizplatte heizt nicht Display shows Err. 5 Thermal fuse on heat plate is defect or Relay Replace thermal fuse (in DTG 4-S 2 fuses) CRYDOM is defect...
  • Page 23: Wiring Diagram

    4.10 Wiring diagram Version 17.03...
  • Page 24: Warranty Terms And Conditions

    Warranty terms and conditions Schulze heat presses and machine used for printings have a warranty for 24 month. This warranty includes the whole construction of the machine, mechanical elements, electronic device and covers. Expandable parts, fuses and safety covers are not included in the warranty terms. Thermo fuses, temperature sensor, switches and buttons, heating elements for transfer-presses (like BluePressLine Mug, Mug 4) and all springs in the machines have a warranty for 6 months or 500 pressing procedures.
  • Page 25 Instrukcja obsługi Instrukcja użytkowania Wersja 17.03 Prasa Transferowa BluePRESSLine DTG-4-S DTG Basic S Producent: ROMANIK Andrzej Romanik, ul. Przemysłowa 10, 84-240 Reda, Polska...
  • Page 27: Wstęp

    Wstęp Spis treści Wstęp Spis treści Budowa prasy Dane techniczne Zabezpieczenia prasy Bezpieczeństwo w miejscu pracy Czynności przygotowawcze Uwagi dotyczące transportu Instrukcja montażu prasy Napięcie zasilania Przygotowanie prasy do pracy Praca na prasie Programowanie elektroniki Kody błędów Tryb ekonomiczny „ECO” Funkcja przeprasowania Zastosowane prasy i przykładowe ustawienia Regulacja nacisku...
  • Page 28: Budowa Prasy

    Budowa prasy 1. Pokrętło regulacji naciągu sprężyn 8. Kielich elektromagnesu 2. Płyta dolna perforowana 9. Ramię dociskowe 3. Pyta grzewcza 10. Elektronika 4. Uchwyt ( tylko w DTG-4-S) 11. Główny bezpiecznik 5. Przycisk STOP 12. Włącznik główny 6. Elektromagnes 13. Wąż spiralny 7.
  • Page 29: Bezpieczeństwo W Miejscu Pracy

    Bezpieczeństwo w miejscu pracy Przygotowanie i montaż Montaż i przygotowanie prasy musi się odbywać pod nadzorem osoby upoważnionej. Ze względu na dużą wagę prasy, montaż musi być przeprowadzony przez dwie lub więcej osób. Prasa powinna być ustawiona na równej, niepalnej powierzchni w pomieszczeniu o stałej temperaturze i wilgotności.
  • Page 30: Czynności Przygotowawcze

    Czynności przygotowawcze Uwagi dotyczące transportu Prasa BluePRESSLine DTG pakowana jest w karton i przytwierdzana do palety. Zaraz po otrzymaniu prasy należy sprawdzić, czy opakowanie jest w dobrym stanie, a prasa nie jest uszkodzona. Należy wykonać to przy kurierze. Należy również odkręcić sklejkę transportową, przykręconą do prasy dwoma śrubami.
  • Page 31: Kody Błędów

    Kody błędów Prasa jest wyposażona w elektronikę, która sygnalizuje nieprawidłowości w funkcjonowaniu prasy, wyświetlając kody błędów. Poszczególne kody oznaczają: ERR.1 – brak czujnika temperatury (awaria czujnika) ERR.2 – zwarty czujnik temperatury (awaria czujnika) ERR.3 – zmierzona rezystancja czujnika poza zakresem (za mała rezystancja, przekroczona minimalna wartość tabeli) ERR.4 –...
  • Page 32: Konserwacja

    Konserwacja Codzienna konserwacja Powierzchnia robocza płyty grzewczej oraz płyty dolnej muszą być utrzymywane w czystości. Płytę grzewczą należy czyścić czystą i suchą ściereczką. Należy unikać bezpośredniego kontaktu z płytą grzewczą – niebezpieczeństwo poparzenia. Piankę silikonową należy czyścić miękką ściereczką. Do czyszczenia pianki można zastosować łagodne środki czyszczące. Zabrania się stosowania rozpuszczalników i benzyny do czyszczenia prasy.
  • Page 33: Instrukcja Wymiany Pianki Silikonowej

    Instrukcja wymiany pianki silikonowej W celu wymiany pianki silikonowej należy wyłączyć prasę z sieci i poczekać do całkowitego wystudzenia płyty grzewczej. 1. Starą piankę usunąć przy pomocy noża lub szpachelki. Wyczyścić płytę z pozostałości silikonu (można użyć papieru ściernego), a następnie przemyć...
  • Page 34: Usuwanie Awarii

    Usuwanie awarii Objawy Rodzaj awarii Sposób naprawy Zielony włącznik świeci 1. Przepalony bezpiecznik główny 12 A 1. Wymienić bezpiecznik główny 12 A Wyświetlacz nie działa 2. Jeżeli bezpiecznik jest dobry, awaria elektroniki 2. Wymienić elektronikę Prasa nie grzeje Wyświetlacz pokazuje Err. 5 Uszkodzony bezpiecznik temperatury na płycie Wymienić...
  • Page 35: Schemat Połączeń

    4.10 Schemat połączeń Version 17.03...
  • Page 36: Warunki Gwarancji

    4.11 Warunki gwarancji Sprzedawca udziela 24 miesięcznej gwarancji na poprawną pracę sprzętu zgodnie z przeznaczeniem i warunkami eksploatacji, na który wydana jest specjalna Karta Gwarancyjna. Należy się zapoznać z warunkami oraz zwrócić podpisaną kopię do producenta „ROMANIK”. Version 17.03...
  • Page 37: Testing Report

    Geschäftsführer Alle SCHULZE Transferpressen sind gem. Registriernummer DE 231060054 vom Abfallentsorgungsgesetz befreit All SCHULZE heat presses are exempt from the waste disposal law under reg. no. DE 231060054. Manufacturer ROMANIK, ul. Przemysłowa 10, 84-240 Reda, www.romanik.pl Distributor: Walter Schulze GmbH Haberstraße 15-19, 12057 Berlin, www.schulzeshop.com Für die technische Dokumentation ist Romanik Andrzej Romanik ul.
  • Page 38: Ce- Deklaracja Zgodności

    4.13 CE- Deklaracja zgodności Firma ROMANIK z siedzibą w Redzie ul. Przemysłowa 10 84 - 240 Reda Polska stwierdza na swoją odpowiedzialność, że nasz produkt: Rodzaj ......Typ .
