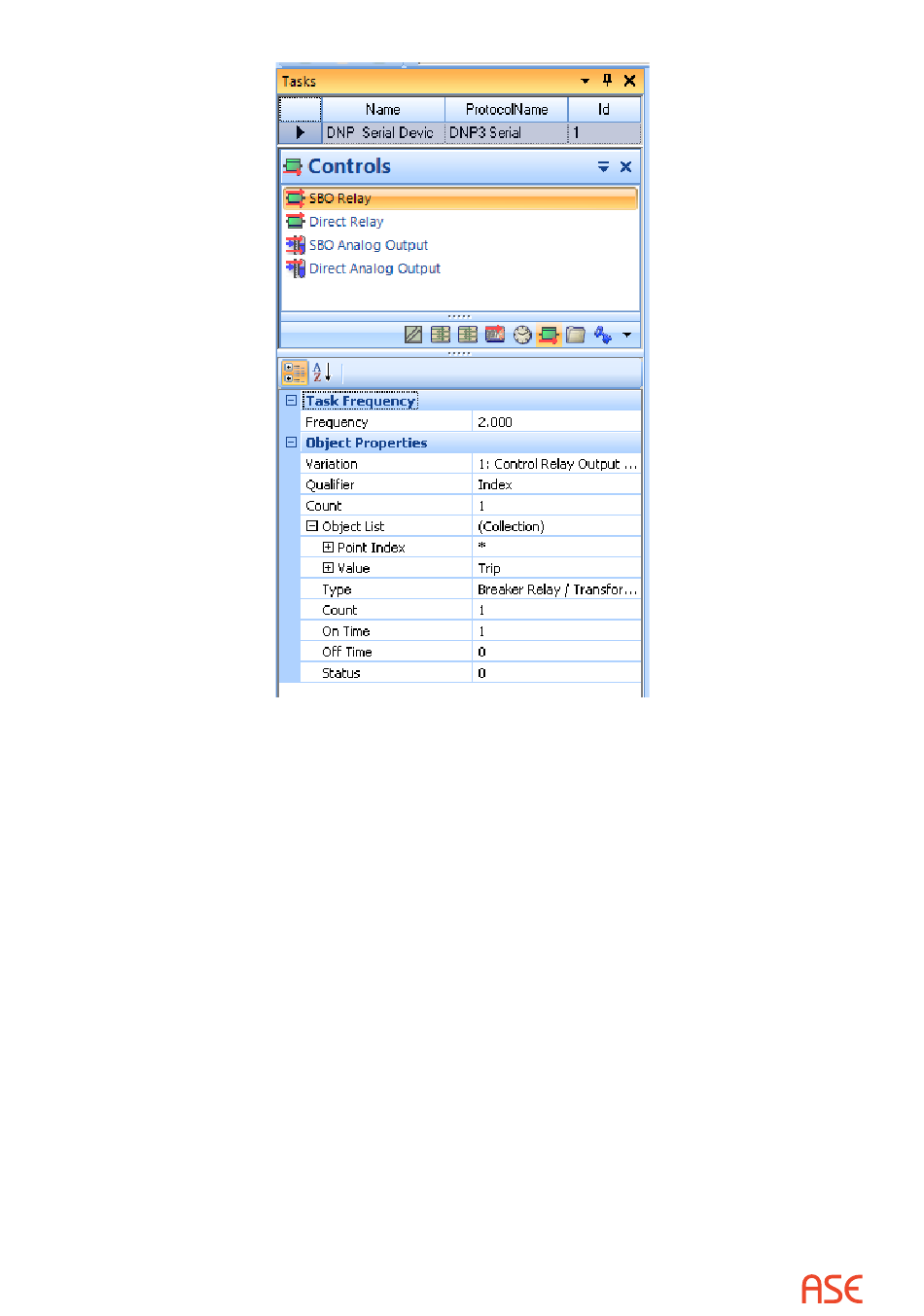

Control properties are more involved than those for most other exchanges. In this example for
DNP3 (and the same for many other protocols) the user must enter:
• Point index: The default, '*', indicates that no index has been entered. The ASE2000 will
reject an attempt to start a control action until a valid address is entered
• Value: Choices in this example are trip and close. Names adjust as appropriate to the active
protocol and control type.
• On Time is part of a DNP3 control: It is also part of many other protocols, but not all. The field
does not appear if not applicable to the active protocol. The default is 1 millisecond.
Once correct values are entered for the above properties, the control task can be activated.
This will control a single point. If the Start icon is selected, the same point will be controlled
multiple times.
