28.4. IEC 60870-5 – Protocol Tab
Certain protocol specific properties can entered from the Protocol Tab in the Properties menu.
This menu is accessed by selecting the Tools pull-down list and the properties option.

28.4.1. IEC 60870-5-101 Protocol Tab

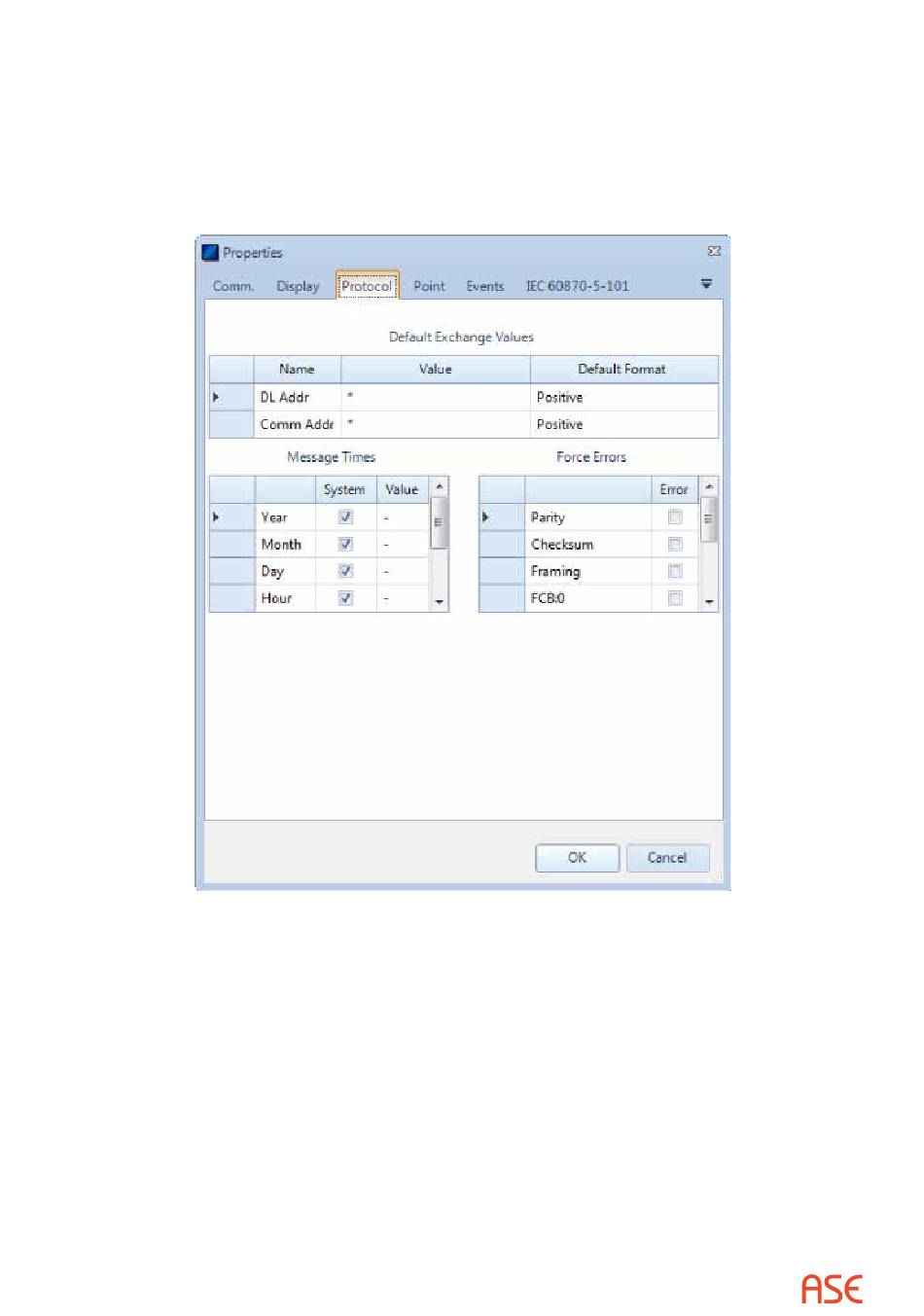

The IEC 60870-5-101 Protocol Menu is shown below.
DL Addr is the Data Link address, as discussed in the Exchange Properties Menu section
Comm Addr is the Common address of ASDU, as discussed in the Exchange Properties Menu
section
System Time defines time values to use in all applicable messages sent by the ASE2000,
both event time stamps and time synchronization messages. When the System time option is
checked, time is extracted from the host PC. When unchecked, the user specified value is used.
Force Errors contains a list of error-generating instructions that can be followed in preparing a
message for transmission. Options are:
