26.3.3. DNP3 LAN/WAN – Options Sub-Tab (Exchange Mode)

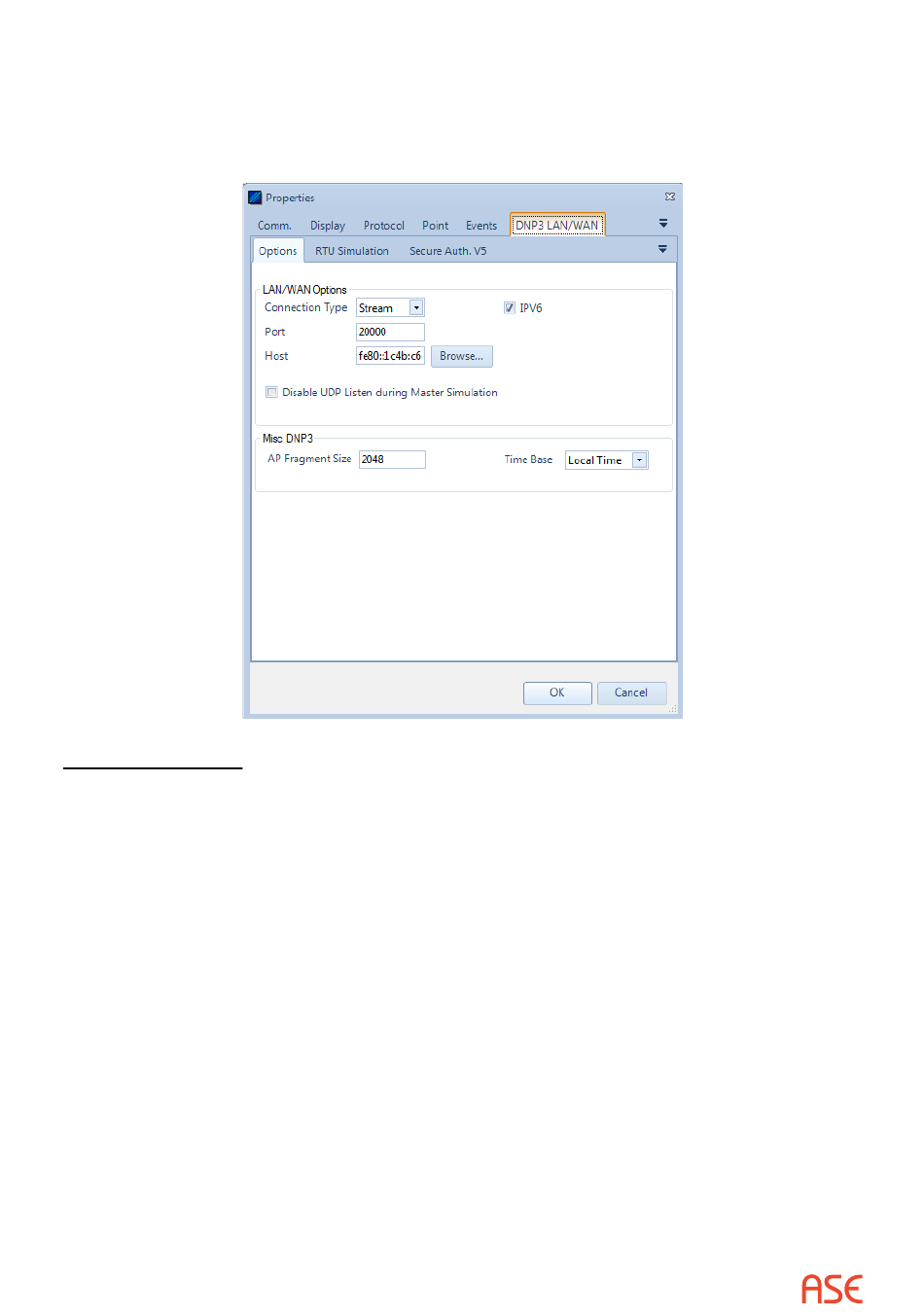

DNP3 LAN/WAN protocol specific properties can be entered from the Options sub-tab in the
Properties menu below the DNP3 LAN/WAN tab. Following is the Options menu for DNP3 LAN/
WAN in Exchange Mode.
LAN/WAN Options
Connection Type – Choices are Stream (TCP/IP) or Datagram (UDP/IP)
Port – DNP3 port, the default is 20000
Host – Host to which a connection should be issued. In Exchange Mode, this is used for Master
Simulation mode only. Either a fixed IP address or remote node name can be entered. The
Browse button may be used to scan the network for remote node names.
Disable UDP Listen during Master Simulation – This option is used only rarely when multiple
copies of the Test Set are running on the same machine. When running in Master Simulation,
the Test Set listens on the UDP port for unsolicited messages from the RTU. In RTU simulation,
the Test Set also listens on the UDP port for incoming messages from the Master station. Since
two copies of the application cannot both be listening to the port, the instance running in Master
Simulation mode will not listen on the UDP port when this option is selected.
IPv6 – Select IPv6 when providing Host addresses using the broader IPv6 address space.
