28.5. IEC 60870-5-101 Tab

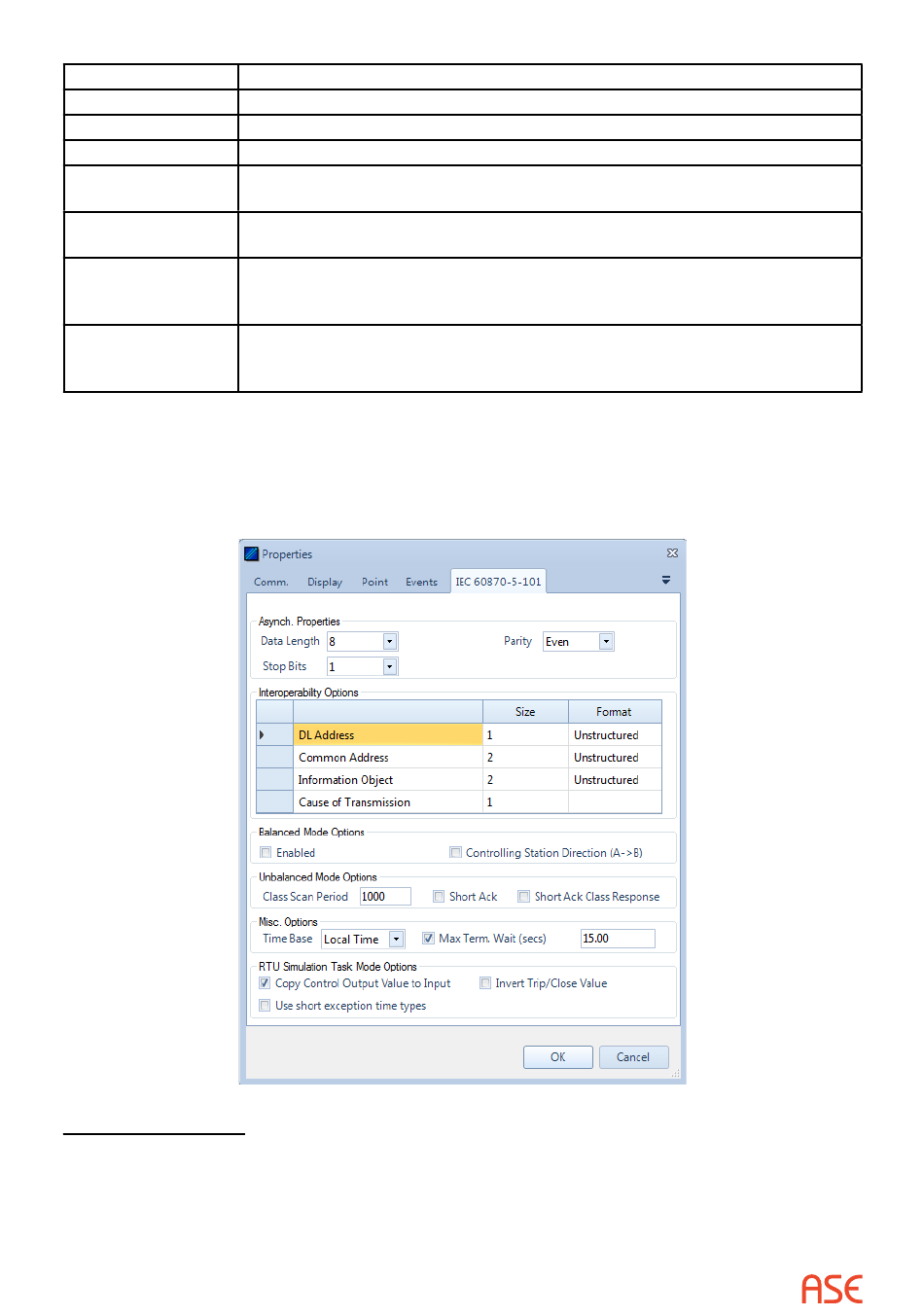

This section discusses options available from the IEC 60870-5-101 Properties page, accessed
by selecting the Tools pull-down menu and the Properties tab.
Asynch Properties
IEC 60870-5-101 protocol octets are transmitted as 8 data bits, 1 stop bit, and even parity. As
for all serial protocols, the ASE2000 sets these parameters as defined by the protocol but allows
them to be changed (primarily for device consistency testing). Sending a message after any
parameter is changed will cause a data reception error at any compliant device
ASE2000 V2 Communication Test Set User Manual
Increases the Xmit sequence number one more than normal
Increases the Xmit sequence number one less than normal
Increases the Receive sequence number one more than normal
Increases the Receive sequence number one less than normal
Never transmits a supervisory message
Does not confirm reception of unnumbered functions (primarily TESTFR)
Generate an occasional error by applying rules for one of the other Force
Error options enabled. If this option is not checked, all enabled errors (where
possible) are processed for every transmission
Generate an occasional error by applying rules for one of the other Force
Error options enabled. If this option is not checked, all enabled errors (where
possible) are processed for every transmission
