The steps described below for activating Line Monitor, Master Simulation, and RTU Simulation
activities assume the correct RTU configuration has been selected.
27.2.1. Harris 5k/6k – Task Mode Line Monitor
No additional setup is required. If cabling is correct, Line Monitoring can be started by selecting
the Line Monitor icon
on the bottom of the test set screen and then selecting the
Start button.
While it is best to accurately enter the RTU/point data base as described, it is not required for
Line Monitor operations. An undefined input point is automatically added to the data base when
detected.

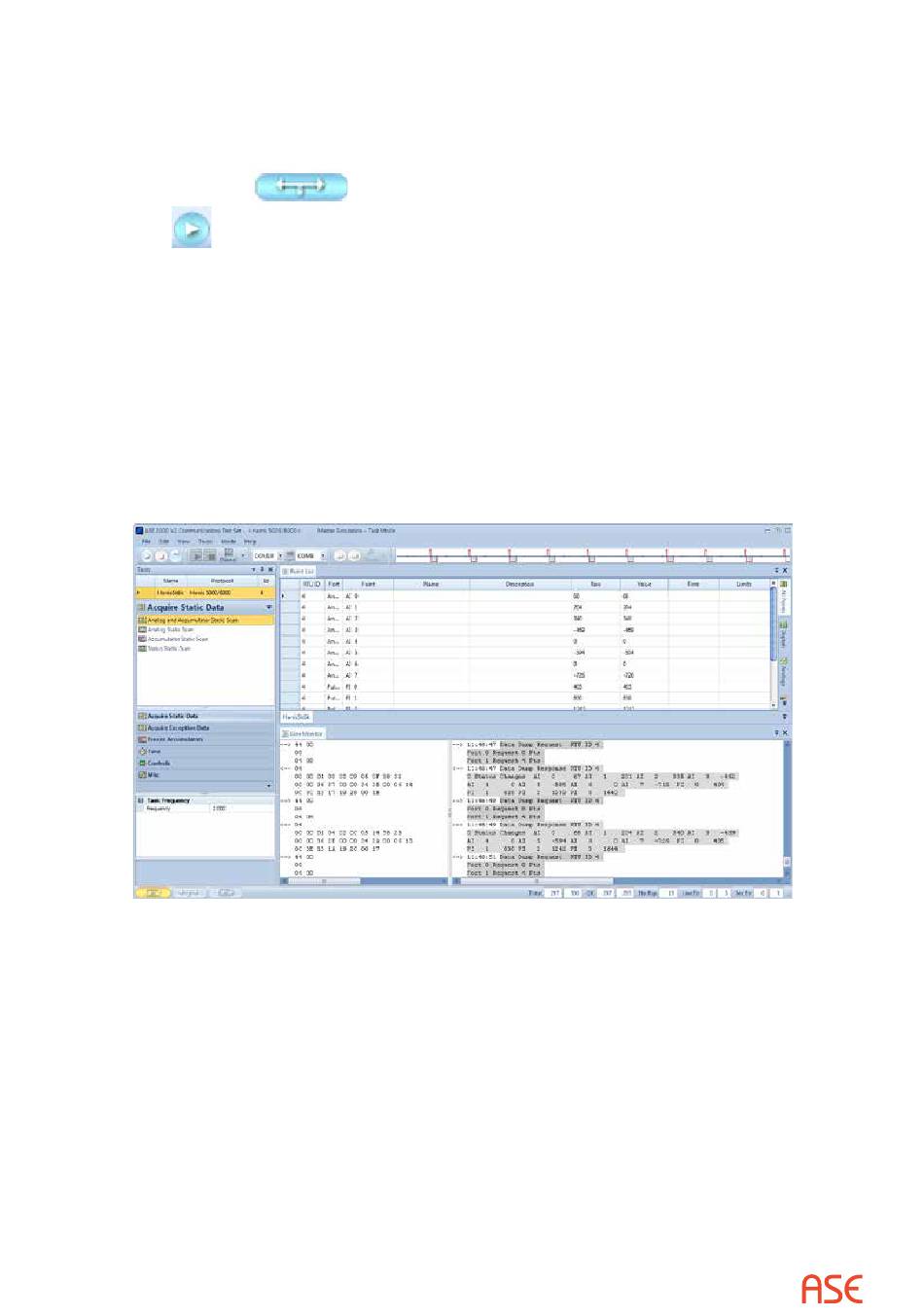

27.2.2. Harris 5k/6k – Task Mode Master Simulation
Master Simulation operation works by selecting a Task Group and then a Task Activity within that
group.
With the desired Task Activity selected, execute the function one time using the Send Once icon
or continuously by selecting the Start Button.
27.2.3. For Harris 5k/6k, the Task Activities are:
• Analog and Accumulator Static Scan (Uses Data Dump command)
• Analog Static Scan (Uses Data Dump command)
• Accumulator Static Scan (Uses Data Dump command)
• Status Static Scan (Uses Status Dump command)
27.2.4. Harris 5k/6k – Task Mode RTU Simulation
Task Mode RTU Simulation utilizes the RTU and Point Data previously configured for the device
to generate responses to master commands for data values. When RTU Simulation mode is
selected, the Raw and Increment fields on the Point List view are enterable. This provides the
capability of changing the simulation value for individual points and to control whether the value
will change (Increment value) on successive scans.
ASE2000 V2 Communication Test Set User Manual
186
