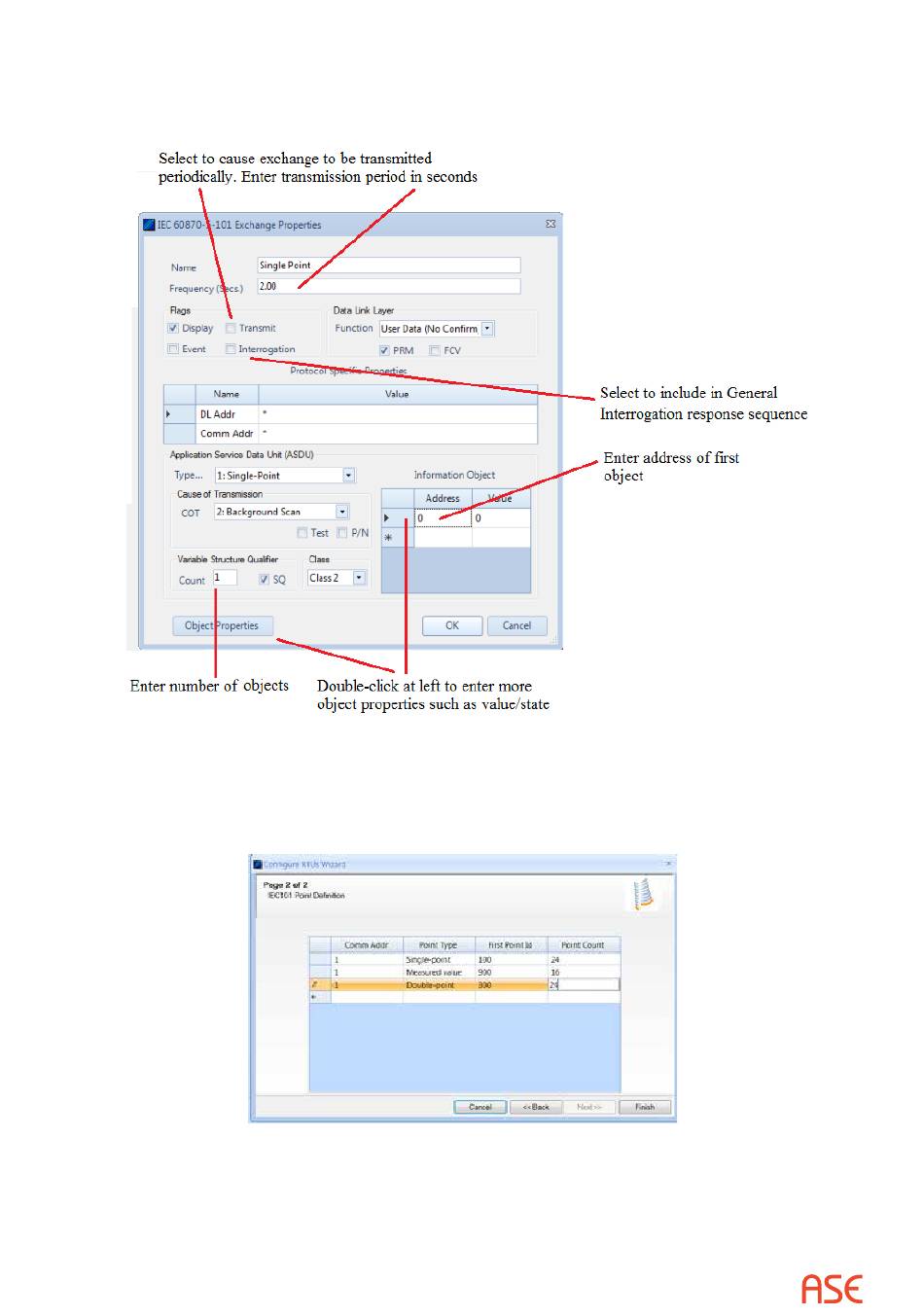

be sent to the master, edit transmission information from the Exchange Proprieties menu. The
example presented below is for Single Points. While other properties than those shown can be
entered, a basic RTU simulation configuration requires entry only of those shown.
28.9. IEC 60870-5 – Task Mode
Virtually all Task Mode setup starts by first configuring points/objects in the RTU data base. For
example:
The configuration shown above creates 24 Single Points, 16 Measured Values, and 24 Double
Points with consecutive Information Object address starting at the address contained under the
First Point ID column.
