7.5.3. Context Menu

By pressing the drop down button on docked header a context menu can be displayed,

7.6. Layout Persistence

Each test set mode (Task & Exchange) has a separate work space layout state. The workspace
layout is persisted so that the next time the test set is activated or the test set mode is changed
the work space layout is returned to its previous state. Default layouts exist for each Test Set
mode and a menu command exists to restore the default layout.

7.7. Layout Guidelines

Each Test Set document has a preferred orientation. Some documents are vertically oriented
and work best either docked or positioned to the right or left edge of the workspace. The rest
of the documents have a horizontal orientation and work best as a tabbed document within a
workspace.

7.8. Status Line

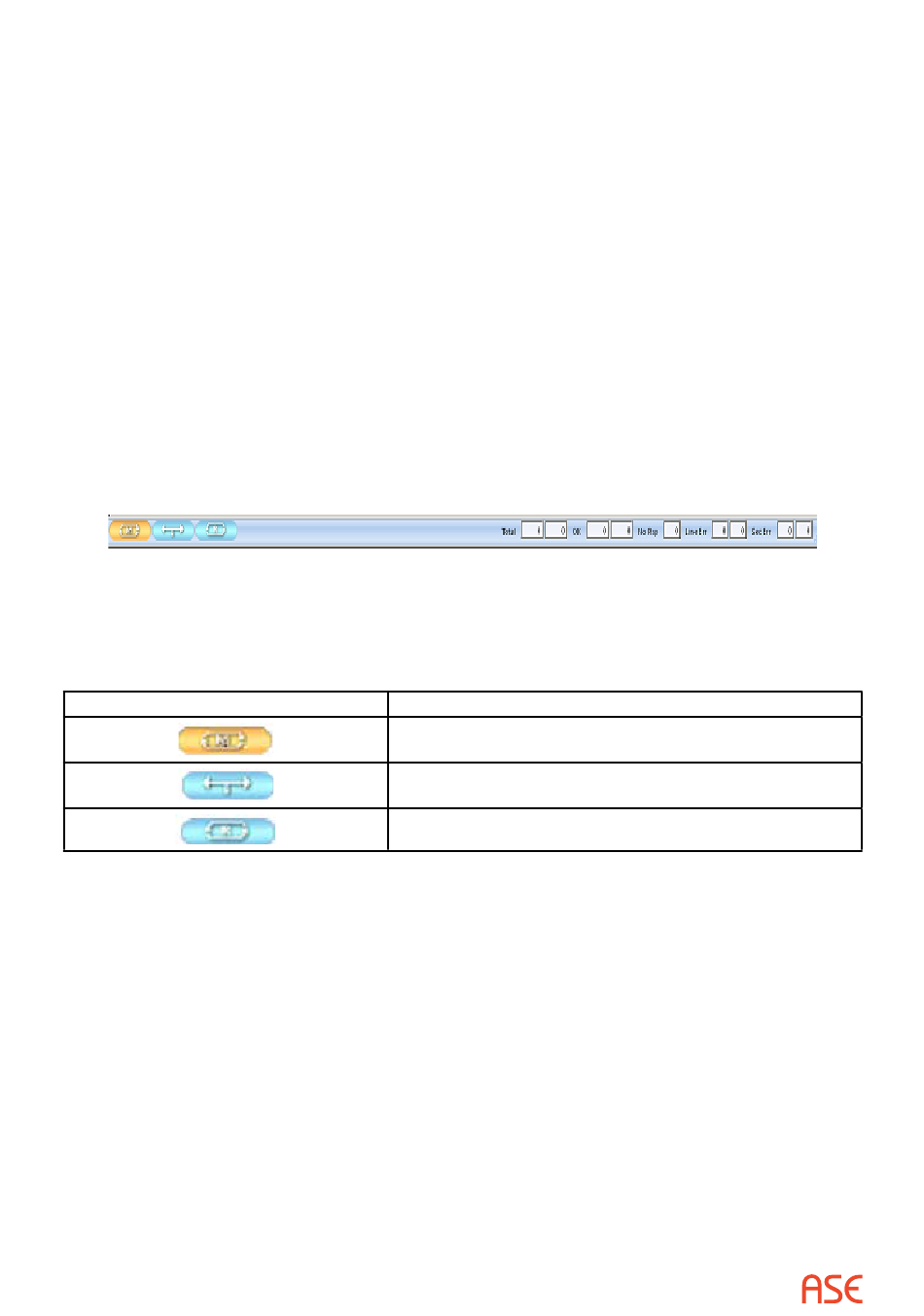

The status line at the bottom of the display area appears as follows.

7.8.1. Communication Mode

The three ICONs at the left edge are used to select Communication Mode. The ICON corresponding
to the current mode is shown is a different color. The current mode is also identified on the title
line.
ICON

7.8.2. Communication Statistics

The right portion of the status bar shows communication statistics, representing totals for all
communication since the ASE2000 was started.
Each statistic type (except for No Rsp) contains two counters. The first (left) counter contains
statistic information for Messages Sent by The Master. The second (right) counter contains
statistic information for Messages Sent by The RTU.
Messages Sent by the Master means:
• In Master Simulation mode, messages sent by the ASE2000
• In RTU Simulation mode, messages received from the master
• In Line Monitor mode, messages detected on the channel designated as "To Master"
ASE2000 V2 Communication Test Set User Manual
Description
Selects Master Simulation Mode
Selects Line Monitoring Mode
Selects RTU Simulation Mode
