Other protocols may have some of the same or similar groups, some groups may be missing
entirely, or other groups, not used for DNP3, may exist.

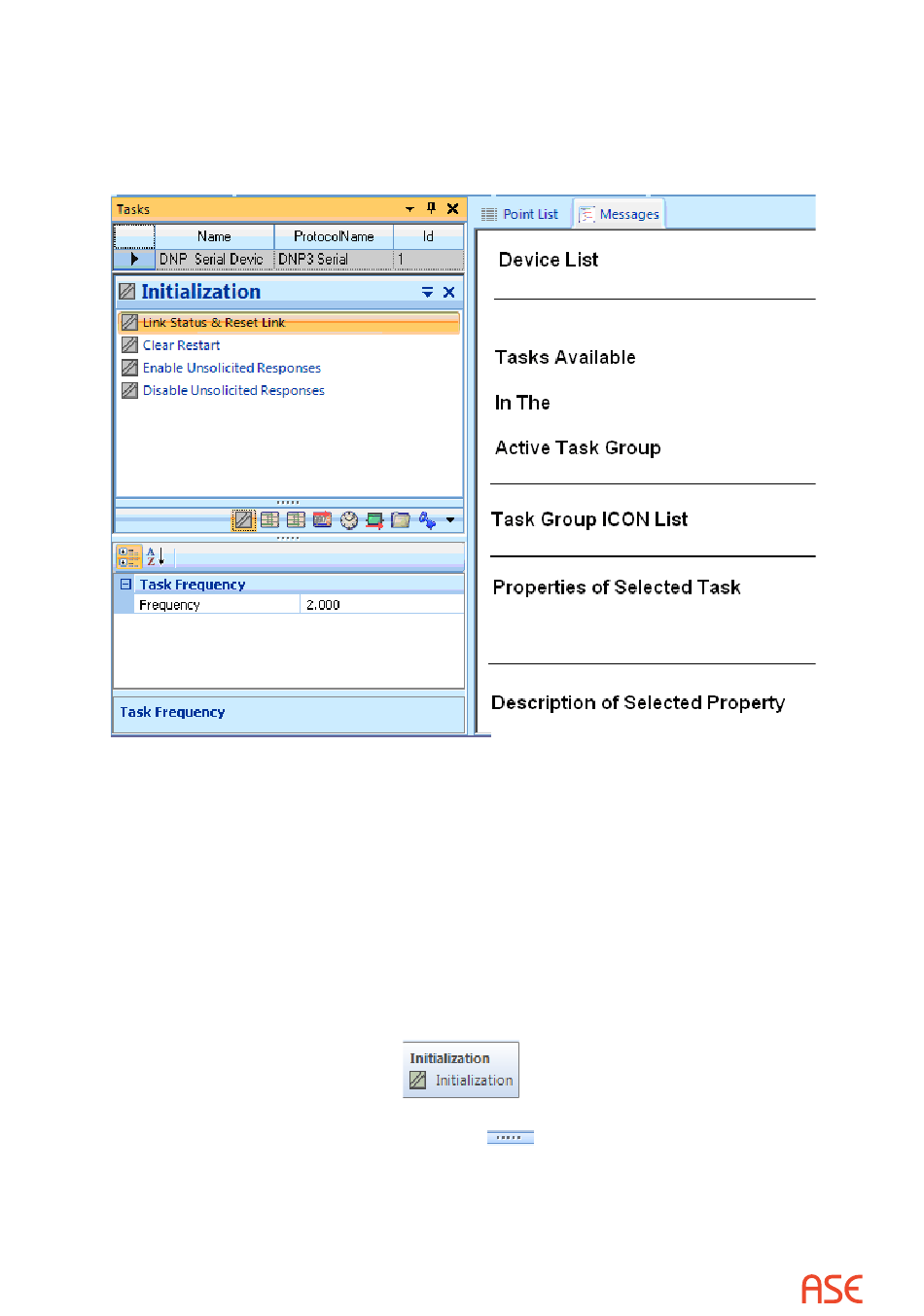

The sample Task Menu is shown below. The actual presentation is for DNP3 protocol, but other
protocols show similar information.
The Task menu layout contains information in four sections.
• The Device List with the active device highlighted is shown at the top of the view
• Task Groups are presented in a horizontal ICON row near the middle of the view. The active
group is shown in a highlighted background color
• Tasks within the selected group are presented between the device and task group ICON lists.
The active task is shown in a highlighted background color
• Properties applicable to the active task and their values are shown at the bottom of the view.
These values can be changed if necessary
Because of its compact presentation, task groups are initially identified only by ICON. A Mouse
over will show the group name, for Example
A less compact presentation is available from the
Splitter control immediately above the ICON region. Select this splitter and, keeping the mouse
button pressed, slide the mouse upwards. Names of all task groups appear.
