30.2.4. Telegyr 8979 – Mapping Output Controls to Change Input Point
Values

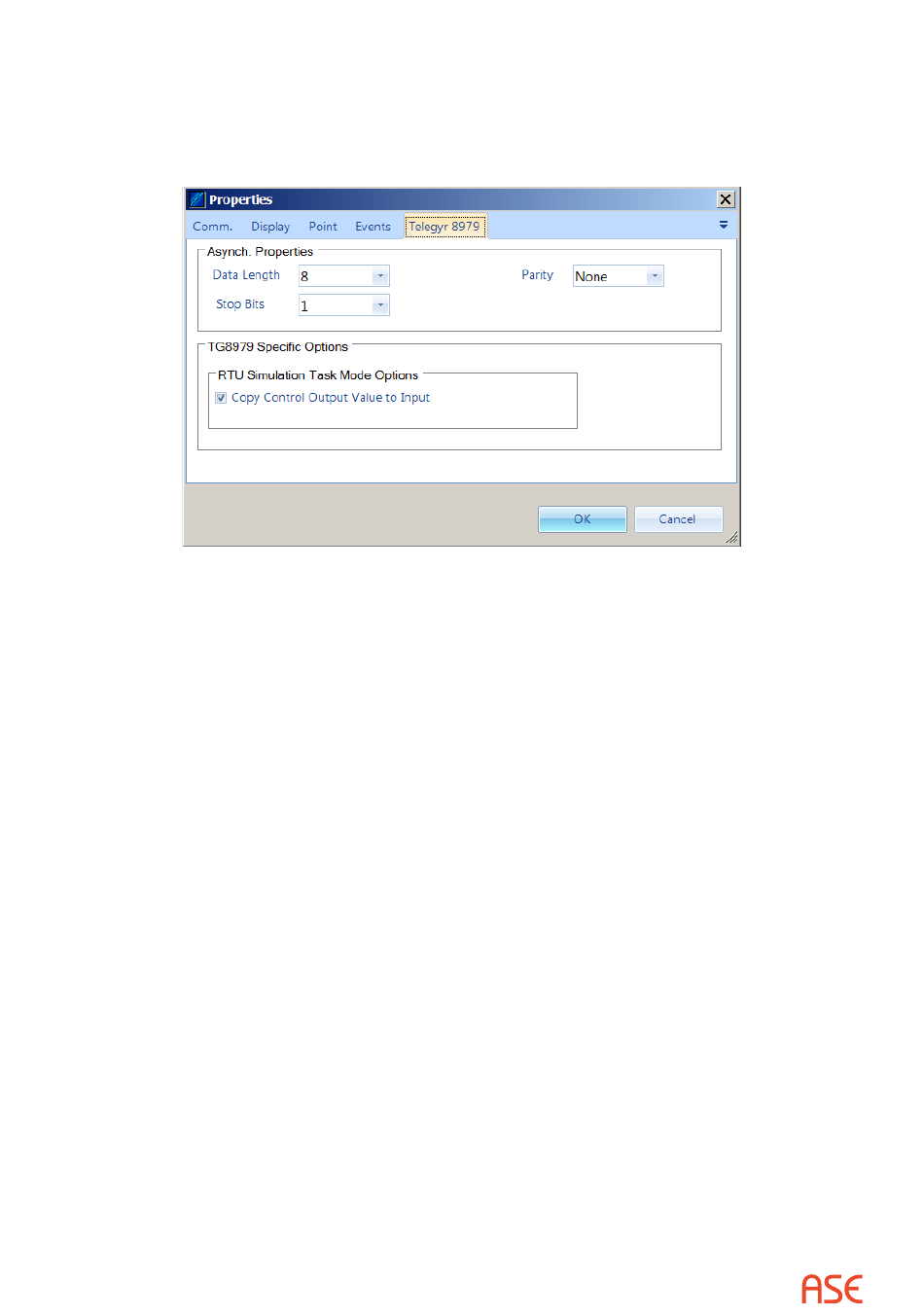

To modify values at the RTU by sending controls from the master station, select the "Copy
Control Output Value to Input" feature from the Telegyr 8979 tab in the Properties menu.
Add the control point index enclosed in square brackets to the description field of the input point
to create a link between that input point and an output point index, as shown in the screen shot
below. The number within the square brackets defines the index of an output point. When a
command is issued to that point, the state/value of the corresponding input point is changed.
Analog output values are copied directly to an analog input point. For digital controls, a Trip
command defaults to a value of zero and a Close command defaults to one.
Control commands to a trip/close point
Binary link – [1] appears in the Description field for IND point 1: Controls to point 1 will
change the state of indication point 1.
Analog link – [6] appears in the Description field for AI point AI 2: A value written to analog
output point 6 will change the value AI 2.
