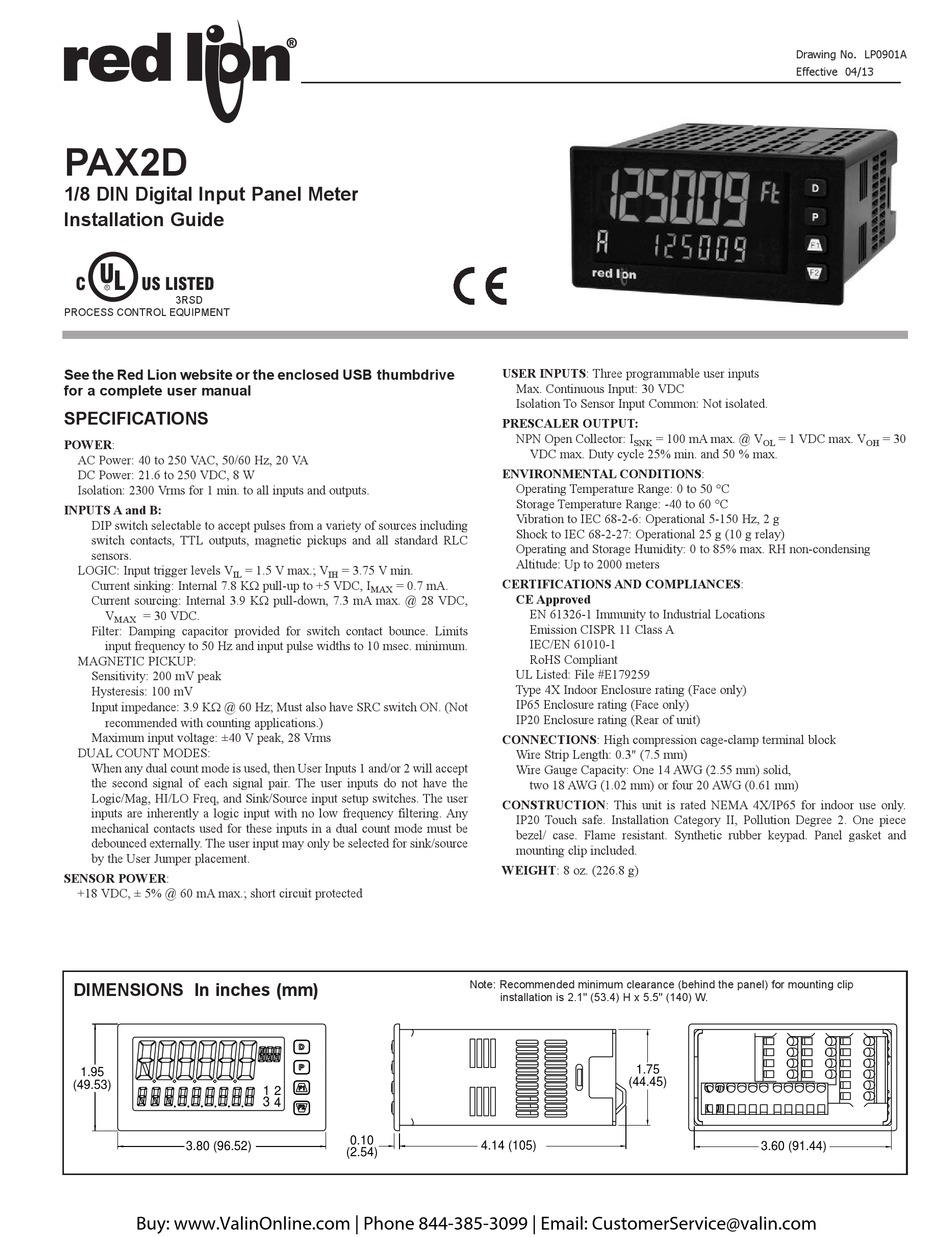

red lion PAX2D Installation Manual

PAX2D
1/8 DIN Digital Input Panel Meter
Installation Guide
U L
C US LISTED
R
3RSD
PROCESS CONTROL EQUIPMENT
See the Red Lion website or the enclosed USB thumbdrive
for a complete user manual

SPECIFICATIONS

POWER:
AC Power: 40 to 250 VAC, 50/60 Hz, 20 VA
DC Power: 21.6 to 250 VDC, 8 W
Isolation: 2300 Vrms for 1 min. to all inputs and outputs.
INPUTS A and B:
DIP switch selectable to accept pulses from a variety of sources including
switch contacts, TTL outputs, magnetic pickups and all standard RLC
sensors.
LOGIC: Input trigger levels V
IL
Current sinking: Internal 7.8 KΩ pull-up to +5 VDC, I
Current sourcing: Internal 3.9 KΩ pull-down, 7.3 mA max. @ 28 VDC,
V = 30 VDC.
MAX
Filter: Damping capacitor provided for switch contact bounce. Limits
input frequency to 50 Hz and input pulse widths to 10 msec. minimum.
MAGNETIC PICKUP:
Sensitivity: 200 mV peak
Hysteresis: 100 mV
Input impedance: 3.9 KΩ @ 60 Hz; Must also have SRC switch ON. (Not
recommended with counting applications.)
Maximum input voltage: ±40 V peak, 28 Vrms
DUAL COUNT MODES:
When any dual count mode is used, then User Inputs 1 and/or 2 will accept
the second signal of each signal pair. The user inputs do not have the
Logic/Mag, HI/LO Freq, and Sink/Source input setup switches. The user
inputs are inherently a logic input with no low frequency filtering. Any
mechanical contacts used for these inputs in a dual count mode must be
debounced externally. The user input may only be selected for sink/source
by the User Jumper placement.
SENSOR POWER:
+18 VDC, ± 5% @ 60 mA max.; short circuit protected
DIMENSIONS In inches (mm)
1.95
(49.53)
3.80 (96.52)
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
= 1.5 V max.; V = 3.75 V min.
IH
= 0.7 mA.
MAX
1 2
3 4
0.10
(2.54)
USER INPUTS: Three programmable user inputs
Max. Continuous Input: 30 VDC
Isolation To Sensor Input Common: Not isolated.
PRESCALER OUTPUT:
NPN Open Collector: I
SNK
VDC max. Duty cycle 25% min. and 50 % max.
ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0 to 50 °C
Storage Temperature Range: -40 to 60 °C
Vibration to IEC 68-2-6: Operational 5-150 Hz, 2 g
Shock to IEC 68-2-27: Operational 25 g (10 g relay)
Operating and Storage Humidity: 0 to 85% max. RH non-condensing
Altitude: Up to 2000 meters
CERTIFICATIONS AND COMPLIANCES:
CE Approved
EN 61326-1 Immunity to Industrial Locations
Emission CISPR 11 Class A
IEC/EN 61010-1
RoHS Compliant
UL Listed: File #E179259
Type 4X Indoor Enclosure rating (Face only)
IP65 Enclosure rating (Face only)
IP20 Enclosure rating (Rear of unit)
CONNECTIONS: High compression cage-clamp terminal block
Wire Strip Length: 0.3" (7.5 mm)
Wire Gauge Capacity: One 14 AWG (2.55 mm) solid,
two 18 AWG (1.02 mm) or four 20 AWG (0.61 mm)
CONSTRUCTION: This unit is rated NEMA 4X/IP65 for indoor use only.
IP20 Touch safe. Installation Category II, Pollution Degree 2. One piece
bezel/ case. Flame resistant. Synthetic rubber keypad. Panel gasket and
mounting clip included.
WEIGHT: 8 oz. (226.8 g)
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.1" (53.4) H x 5.5" (140) W.
1.75
(44.45)
4.14 (105)
Drawing No. LP0901A
Effective 04/13
= 100 mA max. @ V = 1 VDC max. V
OL
3.60 (91.44)
= 30
OH
