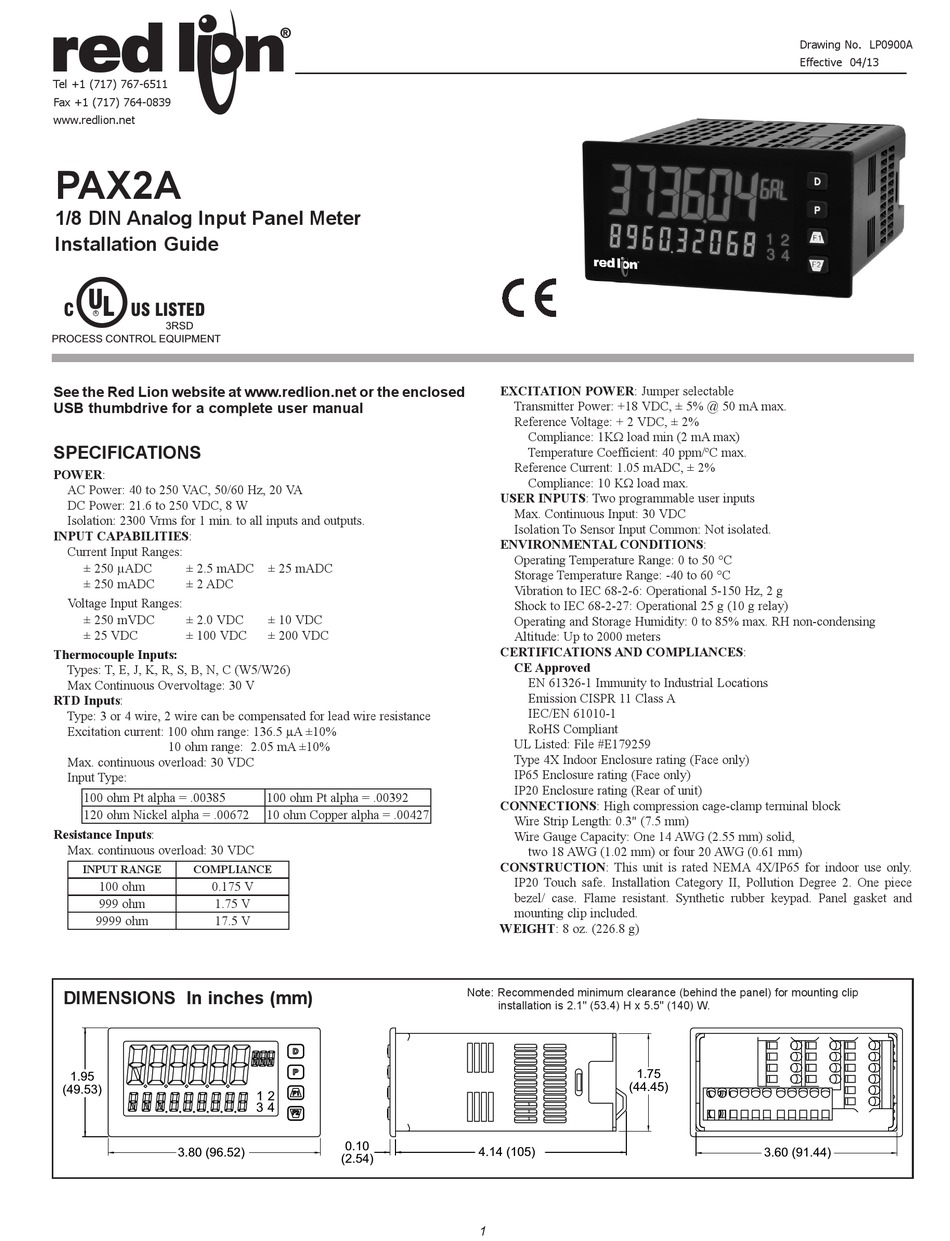

red lion PAX2A000 Installation Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

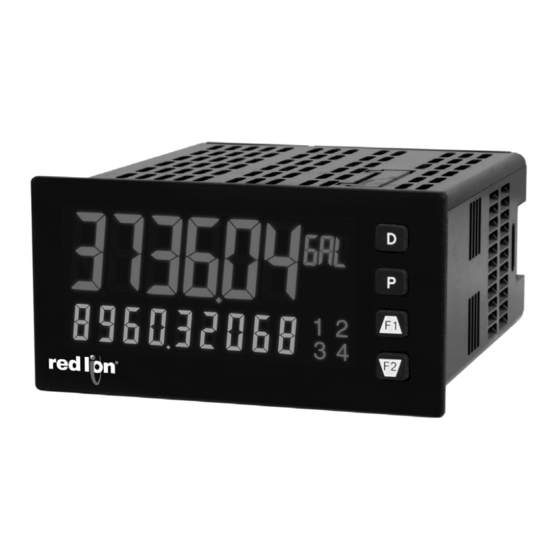

PAX2A
1/8 DIN Analog Input Panel Meter
Installation Guide
U L
C
US LISTED
R
3RSD
PROCESS CONTROL EQUIPMENT
See the Red Lion website at www.redlion.net or the enclosed
USB thumbdrive for a complete user manual
SPECIFICATIONS
POWER:
AC Power: 40 to 250 VAC, 50/60 Hz, 20 VA
DC Power: 21.6 to 250 VDC, 8 W
Isolation: 2300 Vrms for 1 min. to all inputs and outputs.
INPUT CAPABILITIES:
Current Input Ranges:
± 250 µADC ± 2.5 mADC
± 250 mADC ± 2 ADC
Voltage Input Ranges:
± 250 mVDC ± 2.0 VDC
± 25 VDC ± 100 VDC
Thermocouple Inputs:
Types: T, E, J, K, R, S, B, N, C (W5/W26)
Max Continuous Overvoltage: 30 V
RTD Inputs:
Type: 3 or 4 wire, 2 wire can be compensated for lead wire resistance
Excitation current: 100 ohm range: 136.5 µA ±10%
10 ohm range: 2.05 mA ±10%
Max. continuous overload: 30 VDC
Input Type:
100 ohm Pt alpha = .00385
120 ohm Nickel alpha = .00672
Resistance Inputs:
Max. continuous overload: 30 VDC
INPUT RANGE COMPLIANCE
100 ohm 0.175 V
999 ohm 1.75 V
9999 ohm 17.5 V
DIMENSIONS In inches (mm)
1.95
(49.53)
3.80 (96.52)
± 25 mADC
± 10 VDC
± 200 VDC
100 ohm Pt alpha = .00392
10 ohm Copper alpha = .00427
1 2
3 4
0.10
(2.54)
EXCITATION POWER: Jumper selectable
Transmitter Power: +18 VDC, ± 5% @ 50 mA max.
Reference Voltage: + 2 VDC, ± 2%
Compliance: 1KW load min (2 mA max)
Temperature Coefficient: 40 ppm/ºC max.
Reference Current: 1.05 mADC, ± 2%
Compliance: 10 KW load max.
USER INPUTS: Two programmable user inputs
Max. Continuous Input: 30 VDC
Isolation To Sensor Input Common: Not isolated.
ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0 to 50 °C
Storage Temperature Range: -40 to 60 °C
Vibration to IEC 68-2-6: Operational 5-150 Hz, 2 g
Shock to IEC 68-2-27: Operational 25 g (10 g relay)
Operating and Storage Humidity: 0 to 85% max. RH non-condensing
Altitude: Up to 2000 meters
CERTIFICATIONS AND COMPLIANCES:
CE Approved
EN 61326-1 Immunity to Industrial Locations
Emission CISPR 11 Class A
IEC/EN 61010-1
RoHS Compliant
UL Listed: File #E179259
Type 4X Indoor Enclosure rating (Face only)
IP65 Enclosure rating (Face only)
IP20 Enclosure rating (Rear of unit)
CONNECTIONS: High compression cage-clamp terminal block
Wire Strip Length: 0.3" (7.5 mm)
Wire Gauge Capacity: One 14 AWG (2.55 mm) solid,
two 18 AWG (1.02 mm) or four 20 AWG (0.61 mm)
CONSTRUCTION: This unit is rated NEMA 4X/IP65 for indoor use only.
IP20 Touch safe. Installation Category II, Pollution Degree 2. One piece
bezel/ case. Flame resistant. Synthetic rubber keypad. Panel gasket and
mounting clip included.
WEIGHT: 8 oz. (226.8 g)
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.1" (53.4) H x 5.5" (140) W.
1.75
(44.45)
4.14 (105)
1
Drawing No. LP0900A
Effective 04/13
3.60 (91.44)
