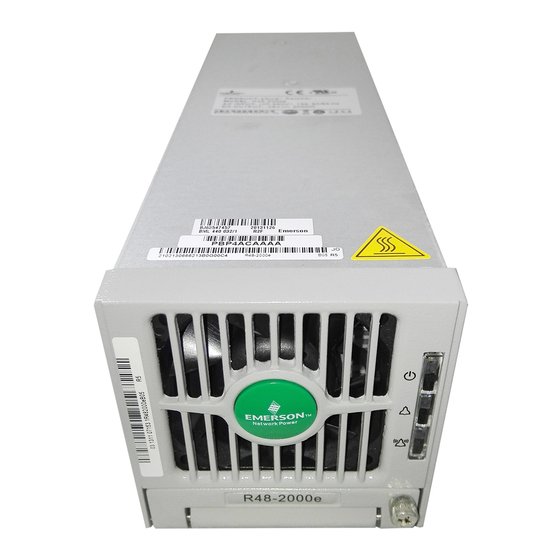

- Page 1 NetSure™ Rectifier Module User Manual (UM1R482000e / 11BU1360YY), Revision J Specification Number: 1R482000, 1R482000e, 1R482000H Model Number: R48-2000, R48-2000e, R48-2000H...
- Page 2 This document may contain confidential and/or proprietary information of Vertiv Group Corporation, and its receipt or possession does not convey any right to reproduce, disclose its contents, or to manufacture or sell anything that it may describe.
-
Page 3: Table Of Contents
Troubleshooting ..............................26 Rectifier Current Sharing Imbalance ....................... 26 Rectifier Fault Symptoms and Troubleshooting ................26 Replacement Procedures ........................... 28 Rectifier Replacement ............................28 Rectifier Fan Replacement ..........................29 Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 4: Admonishments Used In This Document
SAFETY! Informs the reader of general safety information, reminders, precautions, or policies not related to a particular source of hazard or to fire safety. (ISO, ANSI, OSHA) Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 5: Important Safety Instructions
ALERT! Installation or removal of equipment containing static sensitive components requires careful handling. Before handling any equipment containing static sensitive components, read and follow the instructions contained on the Static Warning Page. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 6: Static Warning
If necessary to repair equipment containing static sensitive components, wear an appropriately grounded wrist strap, work on a conductive surface, use a grounded soldering iron, and use grounded test equipment. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 7: Introduction
Refer to Figure 1 for a graph of output voltage vs. output current for the R48-2000e rectifier. Refer to Figure 2 for a graph of output voltage vs. output current for the R48-2000 and R48-2000H rectifier. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... - Page 8 176 to 300 VAC. Below 176 VAC, and down to 85 VAC, the rectifier will continue to operate normally but will be in a power derating mode. The relationship between the output power and input voltage is illustrated in Figure 3 and Figure 4. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 9 At an ambient temperature of +65°C (+149°F), the power delivered by the rectifier is 1600W. At an ambient temperature of +75°C (+158°F), the power delivered by the rectifier is 800W. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 10 (This refers to a total of 120 hours in any given year, but no more than 15 occurrences in that one- year period.) Figure 5: Power Derating Based on Temperature [R48-2000 (1R482000) and R48-2000H (1R482000H)] Figure 6: Power Derating Based on Temperature [R48-2000e (1R482000e)] Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
-
Page 11: Ac Input Ratings
Efficiency Curve: (Refer to Figure 7.) • Typical Input Data (1R482000): Refer to Table 5 and Table 7. Maximum Input Current: Refer to Table 6 and Table 8. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... - Page 12 Input Voltage Input Voltage (Amperes) 208/240 11.73 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 13 Input Voltage Input Voltage (Amperes) 208/240 11.73 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 14 Input Voltage Input Voltage (Amperes) 208/240 12.33 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 15 Input Voltage Input Voltage (Amperes) 208/240 12.33 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 16 Input Voltage Input Voltage (Amperes) 208/240 12.2 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 17 Input Voltage Input Voltage (Amperes) 208/240 12.2 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 18 Figure 7: Efficiency Curve [R48-2000e (1R482000e)] Figure 8: Efficiency Curve [R48-2000 (1R482000)] Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
-
Page 19: Environmental Ratings
R48-2000e: At 25°C ≤ 50dB(A) with fan in high speed. Measurement made at 0.6m distance in front of rectifier and at same horizontal line of the middle of rectifier. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 20: Compliance Information
At input voltage of 154 V with output >48 V, max output power is 1700 W. At input voltage of 176 V and output >48 V, max output power is 2000 W. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... - Page 21 • Hot Swappable: The rectifier is designed to be plug-and-play. The rectifier can be inserted or removed from a live DC power system with no damage. When the rectifier is plugged into the system, the system output voltage will not be affected. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 22 The DSP also communicates with the controller in real time through the CAN bus. Table 13 lists the different commands and information exchanged between the rectifier and the controller. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
-
Page 23: Mechanical Specifications
Mechanical Specifications • Dimensions: Millimeters: 86.0 (Height) X 84.5 (Width) X 272.0 (Depth) Inches: 3.4 (Height) X 3.3 (Width) X 10.7 (Depth) • Weight: 2.4 kg (5.3 lbs). Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 24: Operation
Turn the power to the rectifier off or remove the rectifier, wait 30 seconds or more (until the LEDs on the rectifier extinguish), then turn the power to the rectifier on or re-insert the rectifier. Figure 10: Local Indicator Locations Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 25: Installing Rectifiers
(this will retract the latch mechanism located on the underside of the rectifier). Refer to Figure 11 for latch mechanism illustration. Push the rectifier completely into the shelf. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 26: Troubleshooting And Repair
• Power Indicator (Green) Off • Protection Indicator (Yellow) ON • Protection Indicator (Yellow) Flashing • Alarm Indicator (Red) ON • Alarm Indicator (Red) Flashing Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... - Page 27 Rectifier addresses Replace the rectifier. contradictory. Alarm Fan not operating Indicator (rectifier shuts down). Replace the fan. (Red) Flashing Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
-
Page 28: Replacement Procedures
Verify that the rectifiers are operating normally. Enable the external alarms, or notify appropriate personnel that this procedure is finished. Ensure that there are no local or remote alarms active on the system. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... -
Page 29: Rectifier Fan Replacement
Reinstall the rectifier and again check for proper airflow. Enable the external alarms, or notify appropriate personnel that this procedure is finished. Ensure that there are no local or remote alarms active on the system. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J... - Page 30 Figure 12: Rectifier Fan Replacement Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 31 This page is intentionally blank. Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J...
- Page 32 VertivCo.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA UM1R482000e / 11BU1360YY (RJ 08/17)
