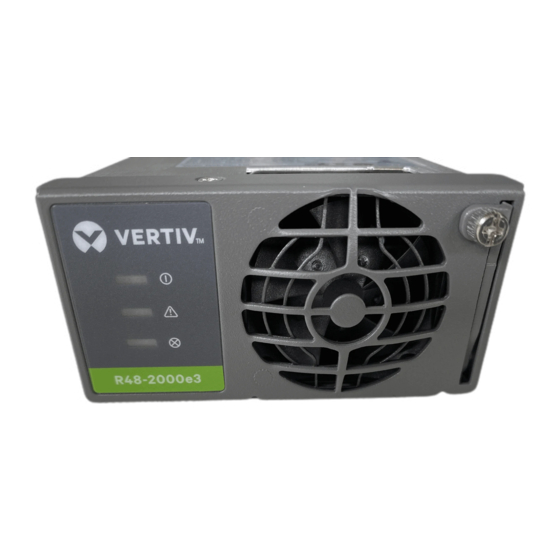

- Page 1 eSure™ Rectifier Module User Manual (UM1R482000e3), Revision M Specification Number: 1R482000e3 Model Number: R48-2000e3...
- Page 2 This document may contain confidential and/or proprietary information of Vertiv Group Corp., and its receipt or possession does not convey any right to reproduce, disclose its contents, or to manufacture or sell anything that it may describe. Reproduction, disclosure, or use without specific authorization from Vertiv Group Corp.
-
Page 3: Table Of Contents
Troubleshooting ..............................20 Rectifier Current Sharing Imbalance ...................... 20 Rectifier Fault Symptoms and Troubleshooting ................. 20 Replacement Procedures ........................... 22 Rectifier Module Replacement ........................22 Rectifier Fan Replacement ..........................23 Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 4: Admonishments Used In This Document
(ISO) SAFETY! Informs the reader of general safety information, reminders, precautions, or policies not related to a particular source of hazard or to fire safety. (ISO, ANSI, OSHA) Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 5: Important Safety Instructions
ALERT! Installation or removal of equipment containing static sensitive components requires careful handling. Before handling any equipment containing static sensitive components, read and follow the instructions contained on the Static Warning Page. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 6: Static Warning
If necessary to repair equipment containing static sensitive components, wear an appropriately grounded wrist strap, work on a conductive surface, use a grounded soldering iron, and use grounded test equipment. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 7: Introduction
• Output Characteristics: Refer to Figure 1 for a graph of output voltage vs. output current. Figure 1: Output Voltage vs. Output Current Output Voltage vs. Output Current, Max. Output Power 2000W 34.5 41.7 Output Current (A) Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... - Page 8 15 days in a year. (This refers to a total of 120 hours in any given year, but no more than 15 occurrences in that one- year period.) Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
-
Page 9: Ac Input Ratings
250 volts. Acceptable input frequency range is 45 to 65 Hz. Permitted Variation: 85 to 300 VAC. • Harmonic Content (THD): ≤5% from 50% to 100% of rated load. Meets EN61000-3-2. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... - Page 10 Input Current Input Voltage Input Voltage (Amperes) 208/240 11.73 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
- Page 11 Input Current Input Voltage Input Voltage (Amperes) 208/240 11.73 NOTE! At 100% of full load with output adjusted to 58 volts DC as measured at the shelf output terminals. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
-
Page 12: Environmental Ratings
• Single Rectifier Audible Noise: At 25°C ≤50dB(A) with fan in high speed. Measurement made at 0.6m distance in front of rectifier and at same horizontal line of the middle of rectifier. • High Voltage Category: II • Power Distribution System: TN/TT/IT Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 13: Compliance Information
At input voltage of 85V with output >48V, max output power is 800W. At input voltage of 120V with output >48V, max output power is 1364W. At input voltage of 154V with output >48V, max output power is 1750W. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... - Page 14 • Hot Swappable: The rectifier is designed to be plug-and-play. The rectifier can be inserted or removed from a live DC power system with no damage. When the rectifier is plugged into the system, the system output voltage will not be affected. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
- Page 15 The DSP also communicates with the controller in real time through the CAN bus. Table 5 lists the different commands and information exchanged between the rectifier and the controller. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
-
Page 16: Mechanical Specifications
Millimeters: 42.0 (Height) X 84.5 (Width) X 252.5 (Depth) Inches: 1.7 (Height) X 3.3 (Width) X 9.9 (Depth) • Weight: 1.13 kg (2.49 lbs) • Indicators: Power (Green LED) Protection (Yellow LED) Alarm (Red LED) Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 17: Operation
If batteries are used on the rectifier output, the batteries should support the load until the current limit set points can be re-established due to loss of a rectifier. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... - Page 18 Severe load sharing imbalance. Rectifier module output disabled for any reason, including overvoltage shutdown Alarm and internal output fuse open. (Red) Rectifier addresses contradictory. Fan not operating (rectifier module shuts Flashing down). Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
-
Page 19: Installing Rectifiers
Certain functions (i.e. rectifier current limit, rectifier addressing) may require adjustment when adding or replacing a rectifier module. Refer to “Rectifier Current Limit” on page 17 and the Power System documentation for instructions. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 20: Troubleshooting And Repair
• Power Indicator (Green) Off • Protection Indicator (Yellow) ON • Protection Indicator (Yellow) Flashing • Alarm Indicator (Red) ON • Alarm Indicator (Red) Flashing Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... - Page 21 (Red) On fuse open. Rectifier module addresses Replace the rectifier. contradictory. Alarm Fan not operating Indicator (rectifier module Replace the fan. (Red) Flashing shuts down). Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
-
Page 22: Replacement Procedures
Verify that the rectifiers are operating normally. Enable the external alarms, or notify appropriate personnel that this procedure is finished. Ensure that there are no local or remote alarms active on the system. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... -
Page 23: Rectifier Fan Replacement
Reinstall the rectifier and again check for proper airflow. Enable the external alarms, or notify appropriate personnel that this procedure is finished. Ensure that there are no local or remote alarms active on the system. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M... - Page 24 Figure 7: Fan Replacement Align holes in fan with tabs on faceplate. Faceplate Mounting Screws (3) Faceplate Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
- Page 25 This page is intentionally blank. Vertiv | eSure™ Rectifier Module User Manual (UM1R482000e3) | Rev. M...
- Page 26 Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA UM1R482000e3 (RM 10/19)
