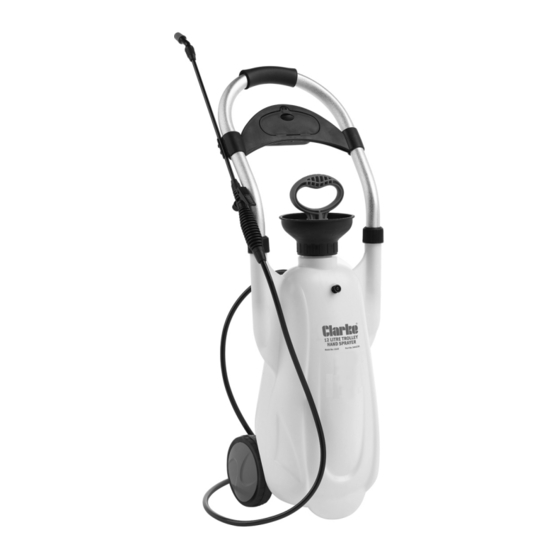

- Page 1 12LTR TROLLEY HAND SPRAYER MODEL:12LST PART NO: 3402235 USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0718 ISS1...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Sprayer, designed only for use with insecticides or other water-based products. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 0.32 - 0.36 L/min (2 bar) Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. ASSEMBLY 1.
- Page 4 OPERATION 1. Unscrew the handle and pump assembly in order to fill the container with the desired liquid. 2. Screw the pump and handle assembly back on firmly. 3. Release the carrying lugs from the pump body by twisting the handle anticlockwise.
- Page 5 AFTER USE After use, the sprayer should be flushed thoroughly with clean water to avoid the possibility of blockages from product residue, or any cross-contamination between different products. If not used for long periods or used continuously for several days, add a light smear of vaseline to the sealing washers and moving parts to reduce wear and assist free movement.
- Page 6 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 7 COMPONENT PARTS Description No Description Tank Gasket Axle Outlet coupling Circlip Filter screen Washer Suction hose Wheel Coupler Wheel Cover Flat washer Sealing Ring Hose cap B Funnel Hose Relief valve O-ring Hose cap A Relief valve plug Spray gun handle Relief valve spring Sealing ring Relief valve seat...
