3rd Party Access Network Protocol

Access Network

Access Network
The SCG supports two types of access network for 3rd party, namely QinQ and
L2oGRE. Figure 10 shows the 3rd party AP flow.

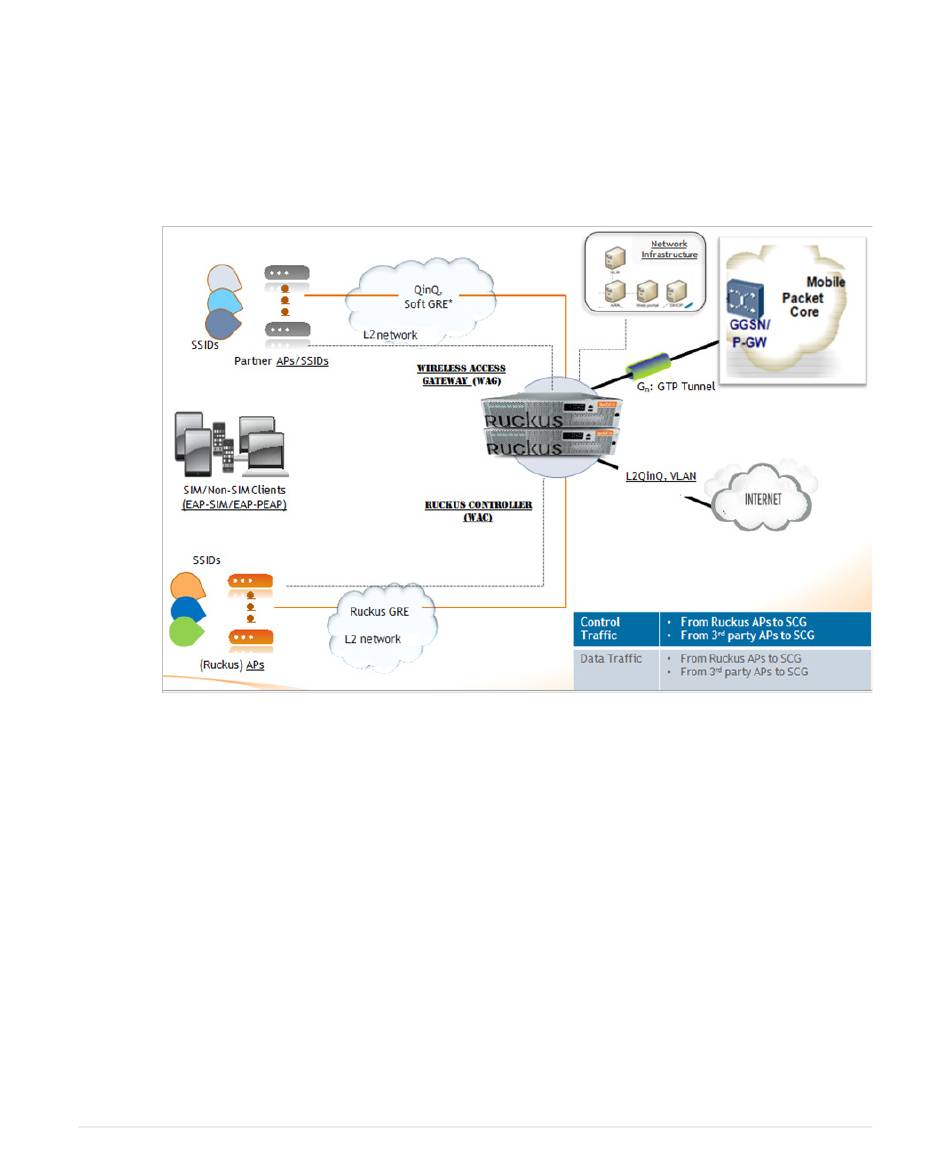

Figure 10. Data traffic from 3rd party AP to the SCG
•

3rd Party AP Zone

The SCG connects to 3rd party AP zones in the same way as that of Ruckus Wireless
APs. The SCG receives RADIUS messages directly from 3rd party AP and supports
multiple 3rd party AP zones. The SCG accepts UE data traffic from 3rd party APs
from access networks via L2oGRE tunnels APs or QinQ tags. The UE MAC is
available from the UE packet.
3rd party APs are managed by 3rd party AP controller, where the SCG acts as WAG.
An access network protocol is defined for each 3rd party AP zone. The options are
L2oGRE or QinQ. For 3rd party AP zones using L2oGRE access, traffic is accepted
from the 3rd party APs using the access network provided to match a configured
list of AP address range.
