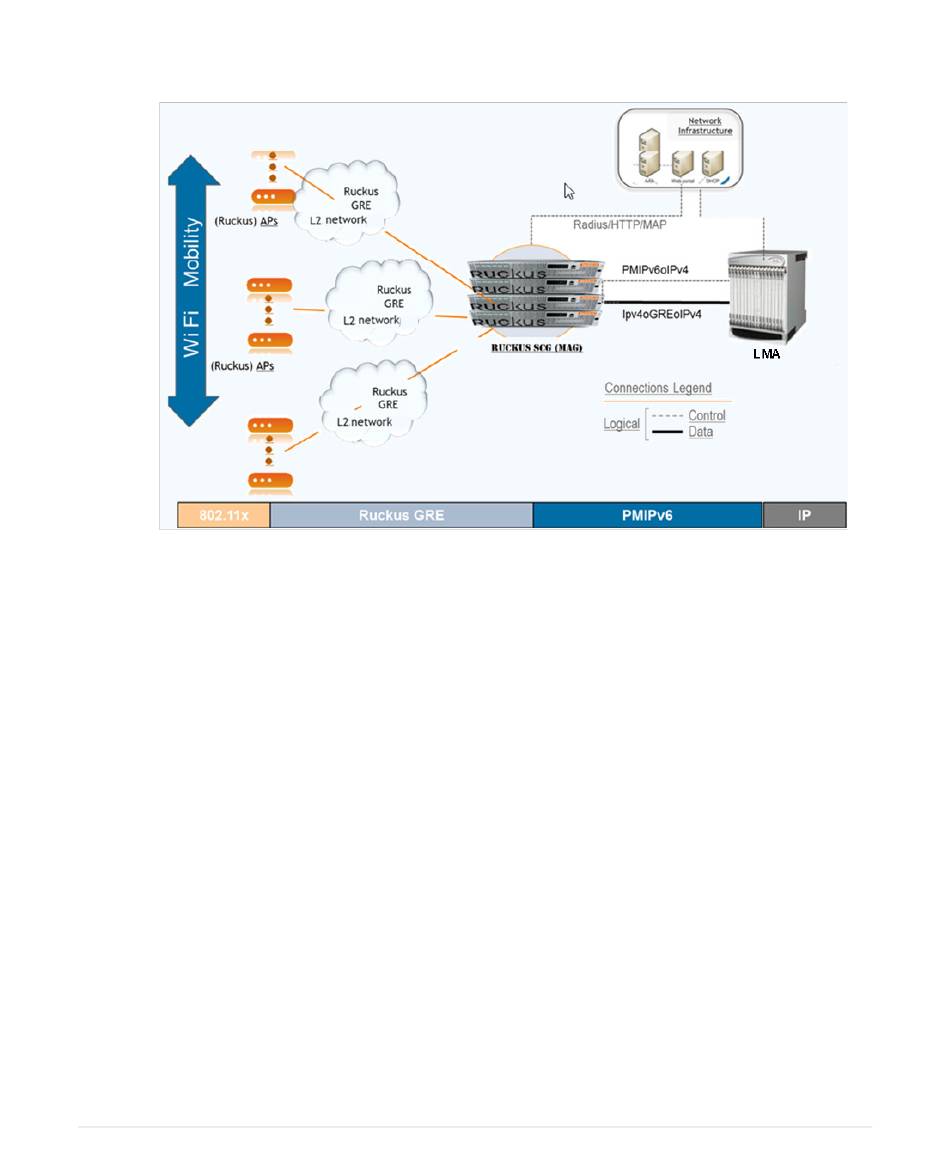

Figure 7. SCG as MAG
Following are the considerations for PMIPv6 support on the SCG.
• The SCG acts as an integrated WLAN controller and MAG
• The signaling transport network between MAG and LMA is PMIPv6 over IPv4-
only. The user plane is IPv4 over GRE over IPv4. Future versions of the SCG will
support IPv6 or dual stack
• The service offered to mobile node is IPv4 whereby only IPv4 addresses are
assigned to the MN
• It is assumed that the LMA supports binding revocation indication procedures.
This is required for handling the inter MAG handover procedures
• The SCG maintains heartbeats in terms of Internet control message protocol
towards the LMA
• The SCG supports all MN authentication procedures supported over Ruckus
APs (for example, Portal, WISPr, 802.1x, EAP-SIM/EAP-AKA/EAP). The SCG
setups the PMIP tunnel appropriately on the DHCP trigger and assigns it to the
UE IPv4 address as seen in
to the LMA.
SmartCell Gateway 200 Tunneling Interface Reference Guide for SmartZone 3.4.1, 800-71380-001 Rev A
Figure 8 and Figure 9. It then forwards the packets
