Bridge Mode - (0-2 tags)

Traffic from UE's are QinQ tagged and bridged out to the core network as seen in

Figure

3. The core VLAN type can be either QinQ or preserve the access VLAN

(1 tag). For core network traffic, the QinQ traffic is considered as a type of LBO traffic

or VLAN (single) or untagged traffic.

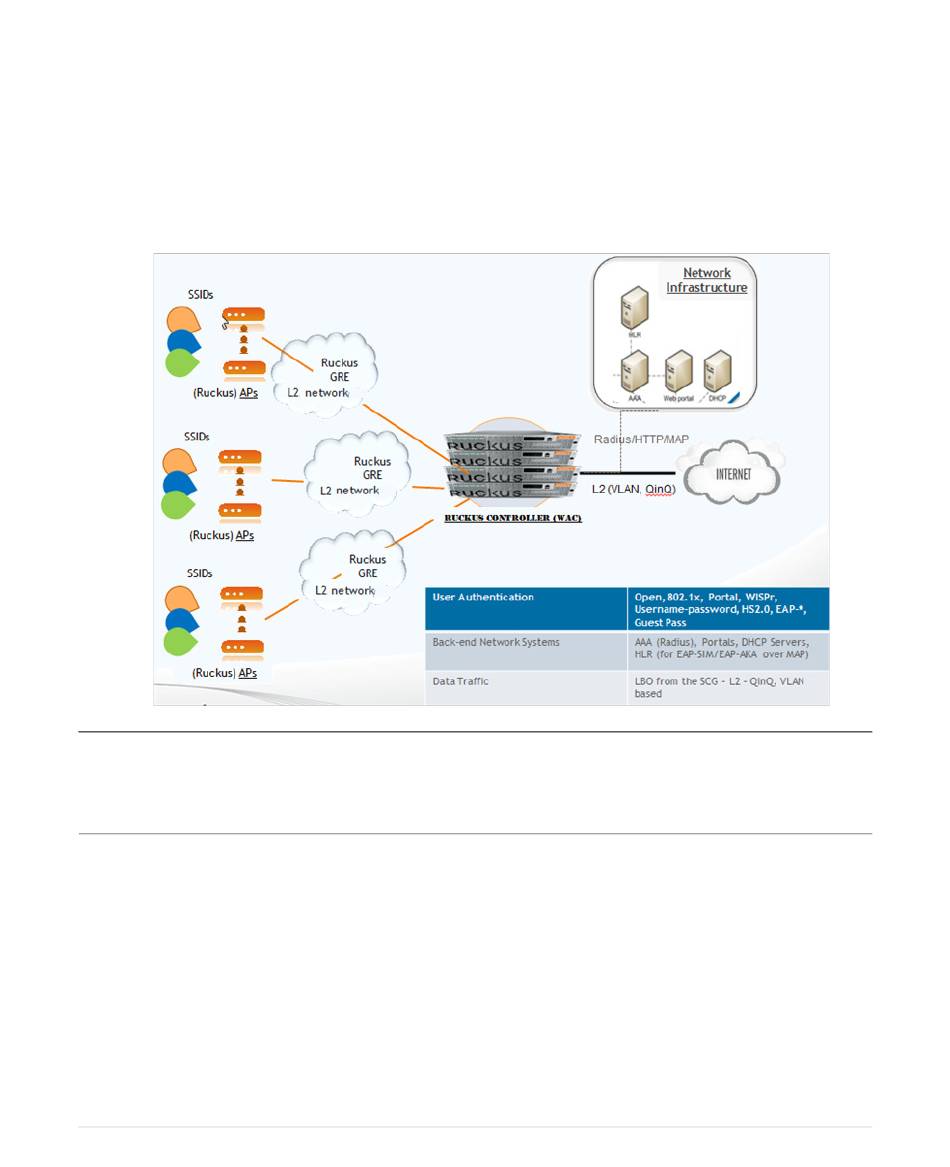

Figure 3. QinQ core network

NOTE:

For information on how to configure QinQ, refer to the SmartCell Gateway

200 Administrator Guide (PDF) or the SmartCell Gateway 200 Online Help, which

is accessible from the SCG Web interface.

The bridge mode now supports optional DHCP relay function. If it is enabled the

user equipment's DHCP packets are relayed to a configured DHCP server. Option

82 sub-option configurations are the same as before.

SmartCell Gateway 200 Tunneling Interface Reference Guide for SmartZone 3.4.1, 800-71380-001 Rev A
