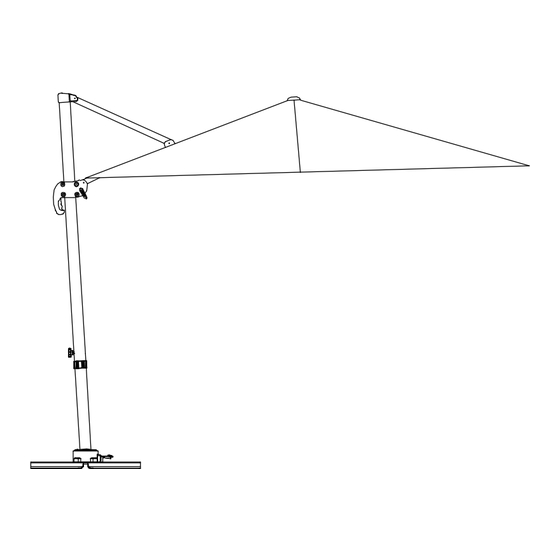

BRIAN 10 FEET ROMA UMBRELLA
Assembly Manual
Kozyard LLC Products
WWW.KOZYARD.COM
©
Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRIAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kozyard BRIAN

  • Page 1 BRIAN 10 FEET ROMA UMBRELLA Assembly Manual Kozyard LLC Products WWW.KOZYARD.COM © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
  • Page 2 Part Part Description Description Base cross A Main Frame w/fabric Base cross B Crank Base pole Plastic Lock srews Allen Key Rotation device Screws Plastic Cover Screws Connector Cover Wrap...
  • Page 3 Set up base A :Put base Part A and Part B together. Put connector Part M on the base pole as shown in diagram. B:Attach rotation device and base pole together using screw E,F&Wrap Part G as shown in diagram. C:Then put the Part L to cover.
  • Page 4 Put on upper main frame H on the base using Push the button of hander for up and down screw J to fix it as shown in diagram. umbrella freely as shown in diagram.
  • Page 5 Adjust the situation by pushing button of hander. Fix crank to the hander.Then move the crank clockwisely to open the umbrella.
  • Page 6 Rotation decive for 360° to match any angle of shade.
