VADDIO ConferenceSHOT 10 Installation Manual
Enterprise-class ptz conferencing camera
Hide thumbs
Also See for ConferenceSHOT 10:
- Configuration and administration manual (38 pages) ,
- Installation manual (20 pages) ,
- Quick start gude (14 pages)
Related Manuals for VADDIO ConferenceSHOT 10
Summary of Contents for VADDIO ConferenceSHOT 10

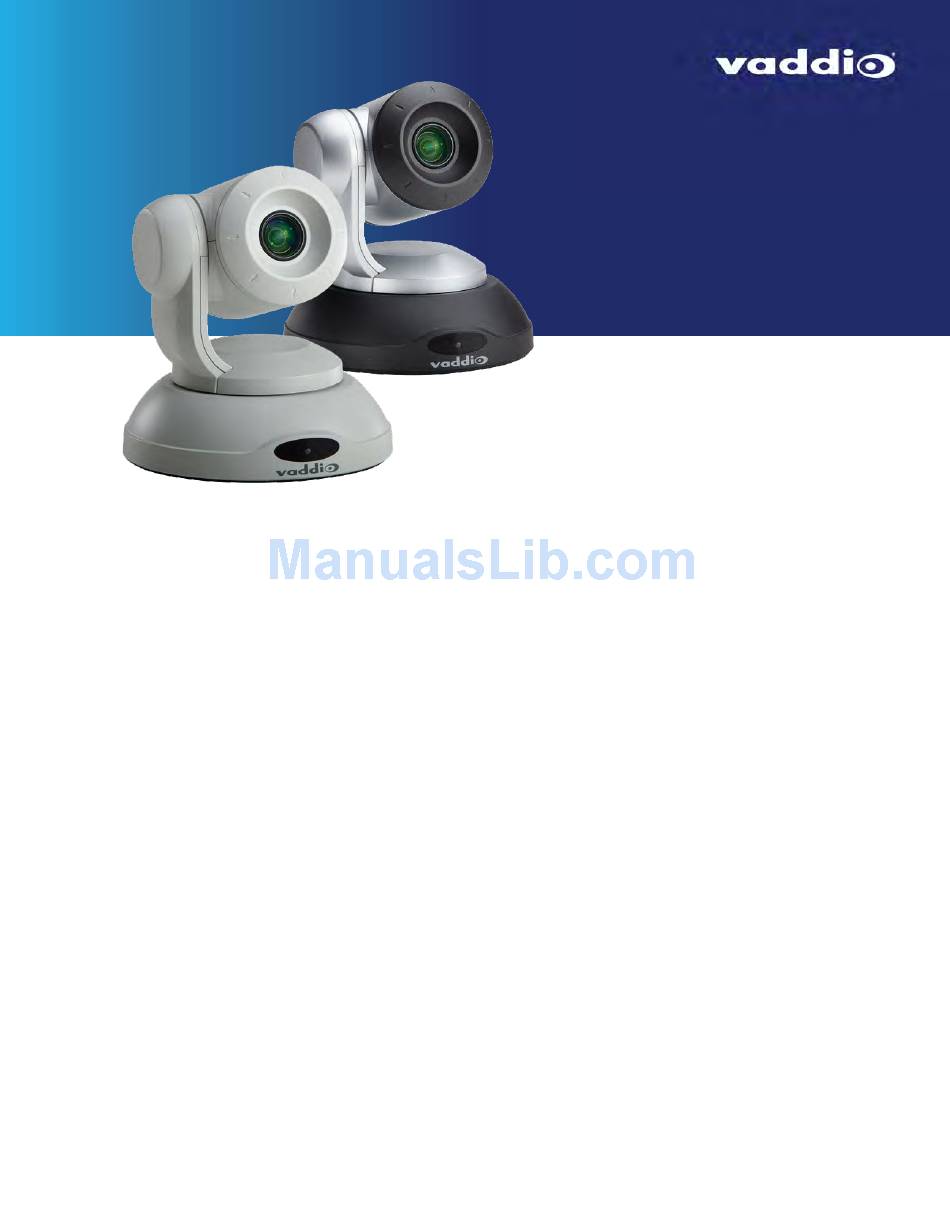

- Page 1 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Document 411-0002-31 Rev C January 2017...
-
Page 2: Table Of Contents
Contents Overview What's in this Guide Features Unpacking the Camera A Quick Look at the Camera Back of the Camera Switch Settings Installation Before You Install the Camera Don’t Void Your Warranty! Cabling Notes Installing the Wall Mount About Ceiling-Mounted Cameras Installing the Camera Connecting the Camera Powering Up the Camera... -
Page 3: Overview
This guide covers the ConferenceSHOT 10 enterprise-class PTZ conferencing camera: ConferenceSHOT 10 camera (silver), North America – part number 999-9990-000 ConferenceSHOT 10 camera (silver), Europe and UK – part number 999-9990-001 ConferenceSHOT 10 camera (white), North America – part number 999-9990-000W ConferenceSHOT 10 camera (white), Europe and UK–... -
Page 4: Unpacking The Camera
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Unpacking the Camera Make sure you received all the items you expected. Here are the packing lists for the ConferenceSHOT 10 cameras. Caution: Use the power supply shipped with the camera. Using a different power supply may create an unsafe operating condition or damage the camera, and will void the warranty. - Page 5 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Europe and UK ConferenceSHOT 10 camera, silver/black, part number 999-9990-001 ConferenceSHOT 10 camera, white, part number 999-9990-001W The box should contain one of each item listed here: Camera, part number 998-9990-000...
-
Page 6: A Quick Look At The Camera

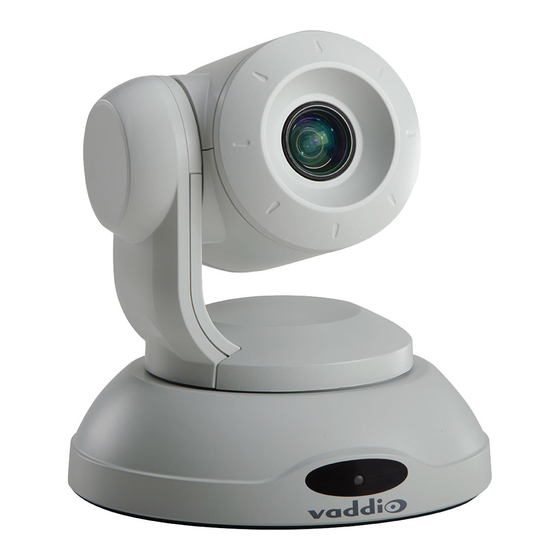

Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera A Quick Look at the Camera Camera and zoom lens: The ConferenceSHOT 10 camera features a 10X optical zoom lens (11X in Super-Wide mode). IR sensors: Sensors in the front of the camera base receive signals from the remote. Make sure there's nothing directly in front of the camera base, and point the remote at the camera. - Page 7 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera When the camera is right side up, switches are in their default positions when they are up. IR Frequency Selection:The IR Remote Commander can control up to three cameras in the same room with different IR frequencies.
-
Page 8: Installation
Do not install or operate this product if it has been dropped, damaged, or exposed to liquids. If any of these things happen, return it to Vaddio for safety and functional testing. Learn more at www.vaddio.com/products. -
Page 9: Cabling Notes
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Cabling Notes For RJ-45 terminated cables, use Cat-5e or better cable and standard RJ-45 connectors (568B termination). We recommend using high-quality connectors and crimping tools. A DE-9F (DB-9F) adapter is supplied with the camera for making RS-232 connections to a third-party control system such as AMX or Crestron. -
Page 10: Installing The Wall Mount
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Installing the Wall Mount You can install the camera wall mount to a 2-gang wall box or directly to the drywall. If you mount it to drywall, use the wall anchors provided with the wall mount. -
Page 11: Installing The Camera
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Installing the Camera Caution Before you start, be sure you can identify all cables correctly. Connecting a cable to the wrong port can result in equipment damage. Caution: Check Cat-5 cables for continuity before using them. Using the wrong pin-out may damage the camera system and void the warranty. -
Page 12: Connecting The Camera
PC uses a unified communications conferencing application to manage the camera and an EasyUSB Mixer/Amp with attached microphones and speakers. Note ConferenceSHOT 10 camera output is USB 3.0; EasyUSB Mixer/Amp is USB 2.0. Powering Up the Camera Connect camera power. -
Page 13: Next Steps
The camera is now ready to configure and use. This information is available in the Configuration and Administration Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera. It is also included in the Integrator's Complete Guide to ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera. -
Page 14: Compliance Statements And Declarations Of Conformity
This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. ... -
Page 15: European Compliance
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera European Compliance This product has been evaluated for electromagnetic compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 16: Warranty Information
Vaddio receives notice of such defects during the warranty. Vaddio, at its option, will repair or replace products that prove to be defective. Vaddio manufactures its hardware products from parts and components that are new or... -
Page 17: Index
Index packing list 4 part numbers 4 precautions 4, 8 for operating the system 8 anatomy of the camera 6 product returns and repairs 16 cable connectors 6, 9 requirements 8 camera mount 8, 10 installation 8 installing 10 mounting 8 camera placement 8 RJ-45 connectors 9 ceiling-mounted cameras 10... - Page 18 Vaddio, ConferenceSHOT, RoboSHOT, and EasyUSB are trademarks or registered trademarks of Milestone AV Technologies. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
