Launching the OPT3001EVM Software

With the OPT3004EVM properly connected (see
Windows Start menu. It is located in a folder titled OPT3001EVM. The software launches with a screen
similar to that shown in
If the message shown in
all components of the OPT3004EVM kit, and repeat the hardware assembly and connection instructions.
SBOU220 – December 2018
Submit Documentation Feedback
Figure 9.

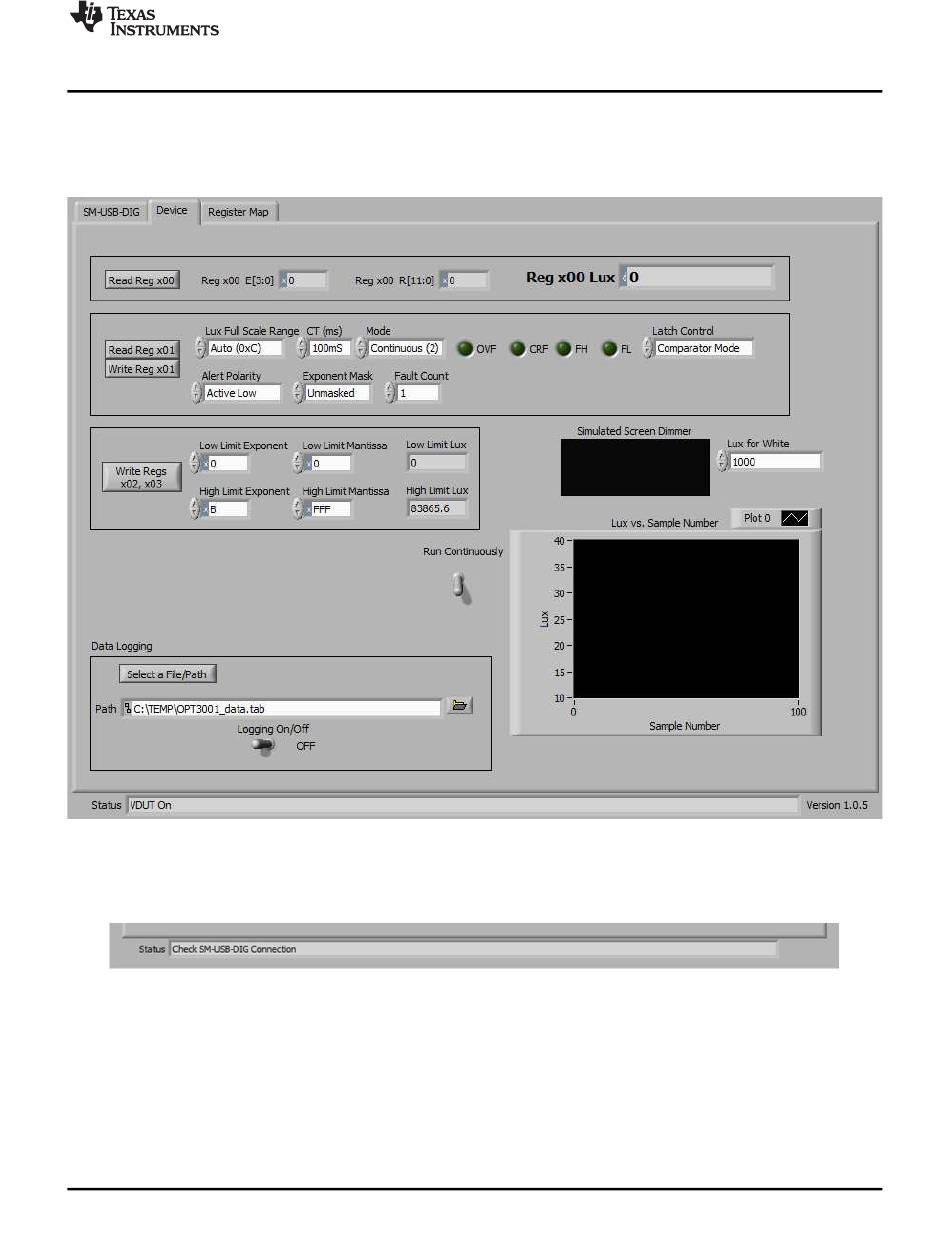

Figure 9. OPT3001 Main Operation Screen
Figure 10 appears when the OPT3001EVM GUI software is launched, disconnect
Figure 10. Hardware Error Message
