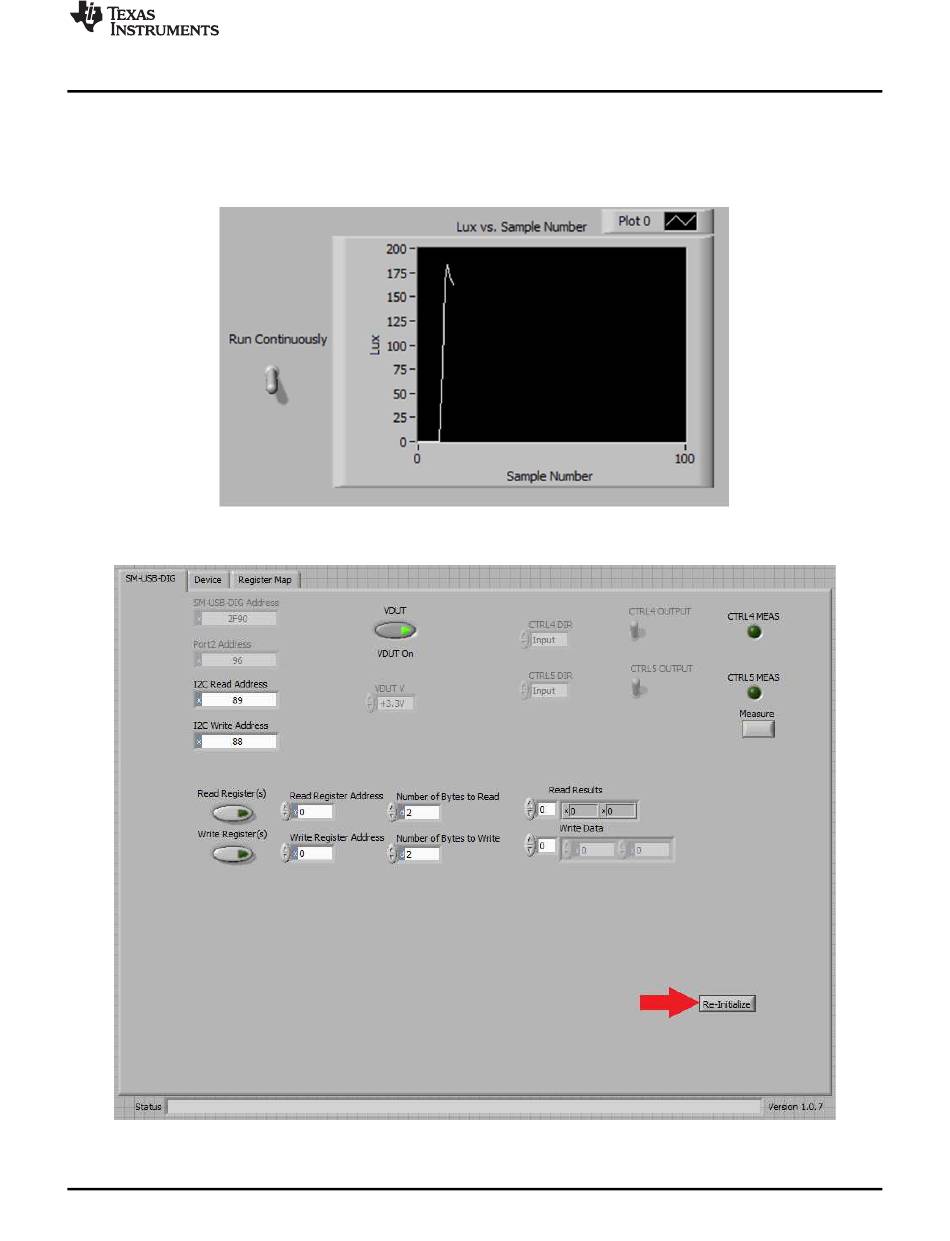

The software provides a plot of the register x01 output labeled Lux vs Sample Number, as shown in
Figure 17. As readings are collected, the plot is updated with those values. The y-axis is autoscaled to
show the magnitude of the lux value recorded, and has a visible history of 100 samples along the x-axis.
The plot can be reset by returning to the SM-USB-DIG tab and clicking the Re-Initialize button, as shown
in Figure 18. Access the plot axis range and formatting by right-clicking the plot.
SBOU220 – December 2018
Submit Documentation Feedback
Figure 17. Lux vs. Sample Number Plot
Figure 18. Re-Initialize Button
