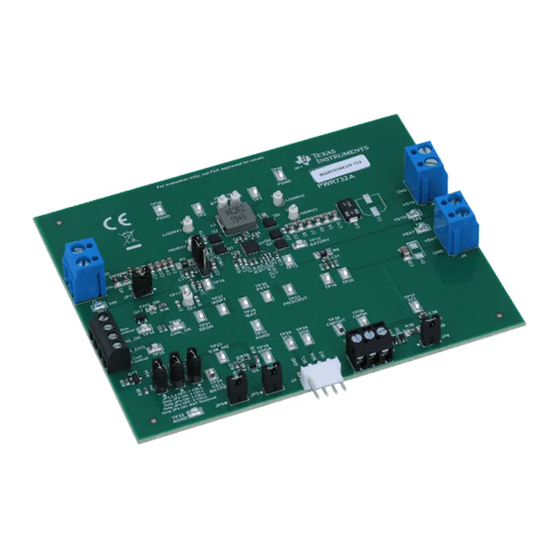

The bq25700AEVM-732 and bq25703AEVM-732 evaluation modules (EVM) are SMBus or I
NVDC-1 buck boost charger. The input voltage range is between 3.5 V and 24 V, with a programmable
output of 1-4 cells and a charge output current range of 64 mA to 8.128 A. This EVM does not include the
EV2400 interface device; the EV2400 must be ordered separately to evaluate the bq2570x EVM.
...................................................................................................................
