Jumper Settings

A jumper is a small component consisting of a jumper clip and jumper pins. Install a jumper clip
on two jumper pins to close a jumper. Remove the jumper clip from two jumper pins to open a

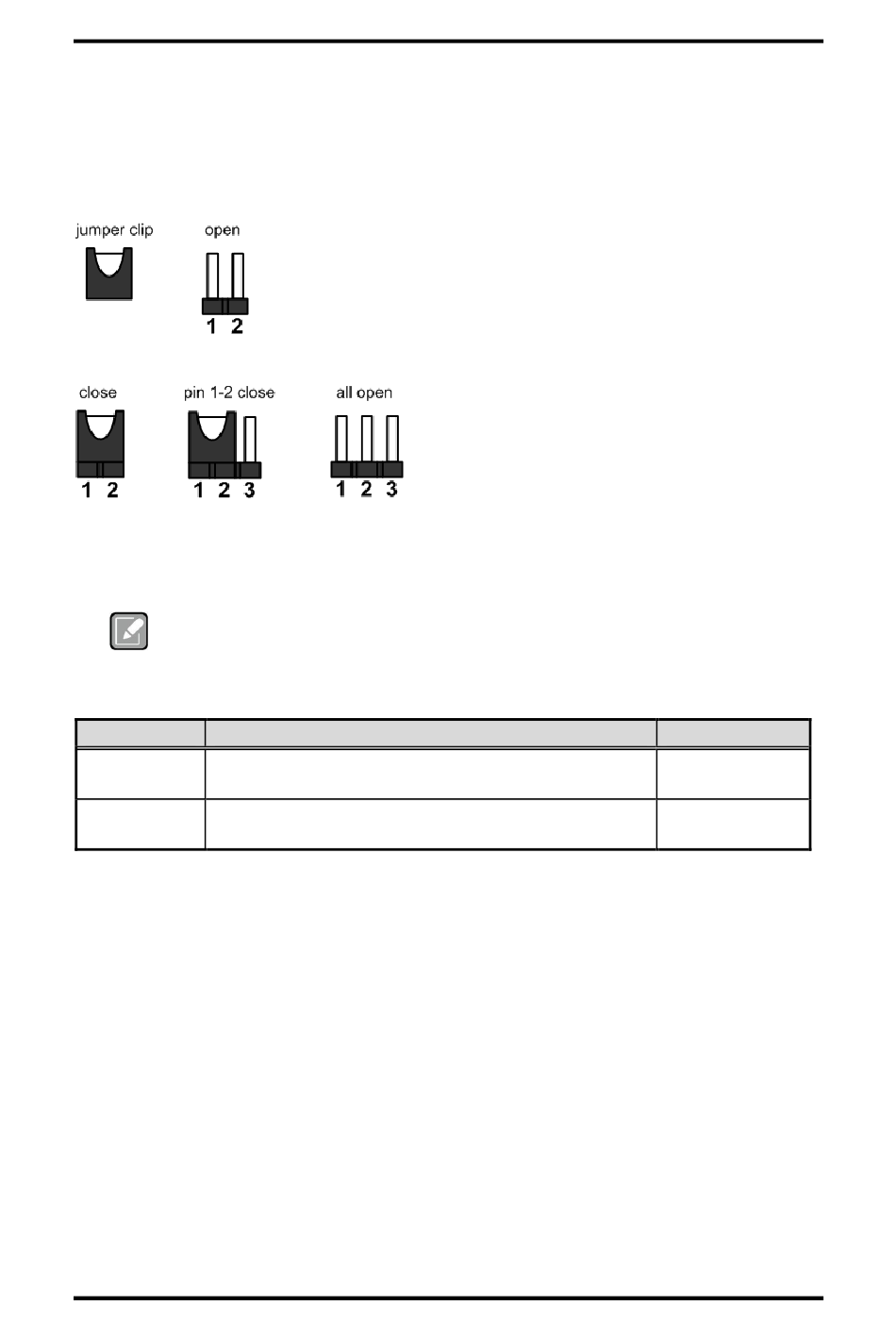

jumper. The following illustration shows how to set up a jumper.
Before applying power to the SHB150 series, please make sure all of the jumpers are in
factory default position. Below you can find a summary table and onboard default settings.
Turn off power before changing any default jumper settings.
Note
Jumper Description
Auto Power On
JP3
Default: Disable
Restore BIOS Optimal Defaults
JP2
Default: Normal Operation
8
Setting
1-2 Close
1-2 Close
Board and Pin Assignments
