- Page 1 8051Flash ™ User manual Flash program is used to transfer a .hex file from a PC to the microcontroller memory by means of the appropriate hardware. Every flash program includes numerous options used for setting the microcontroller’s configuration bits.
- Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in Mikroelektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.
-
Page 3: Table Of Contents
1.0. Introduction to 8051prog Programmer ..................4 2.0. Programming Microcontrollers ....................5 3.0. 8051Flash Program ........................6 4.0. Software Installation ........................7 5.0. Practical Example of Using 8051Flash Program ............... 9 6.0. Keyboard Shortcuts and Command Line Parameters ............... 10 MikroElektronika... -
Page 4: Introduction To 8051Prog Programmer

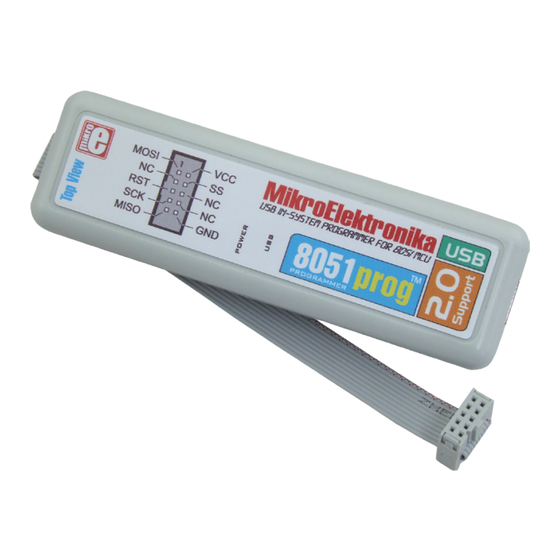

The 8051prog programmer communicates to the microcontroller through a USB cable which is also used for powering the programmer. In order to use this programmer, it is necessary to have the 8051Flash program and the appropriate driver, provided on the product CD, installed on your PC. -
Page 5: Programming Microcontrollers
Loading hex code Write a code in one of 8051 compilers and generate a .hex file; On the right side of the 8051Flash program’s window there In the 8051Flash program’s main window select are several options which make the programming process... -
Page 6: 8051Flash Program
3.0. 8051Flash Program The 8051Flash program is easy to use as all the options necessary for its operation are provided in a simple window which will appear either by clicking on the 8051FLASH icon or automatically by starting the programming process (Build And Program option) in one of 8051 compilers. -
Page 7: Software Installation
8051Flash 4.0. Software Installation Before you use the 8051Flash program, it is necessary to install the appropriate driver. For more information refer to quick guide for installing USB drivers. Step 1: Start installation Insert the product CD into a CD drive. After a few seconds, a list with all Mikroelektronika’s products will appear on the screen. - Page 8 8051Flash Step 4: Choose Installation Location Now, you should specify the folder to install the 8051Flash program into. If you want to install it in a folder different from default, click Browse and select another folder on your hard disc. Then click Next. If you...
-
Page 9: Practical Example Of Using 8051Flash Program
USB LINK LED’s illumination. Step 1: Start up the 8051Flash program Start up the 8051Flash program installed on your PC. Click the Device option in order to select the microcontroller to be programmed. The 8051Flash program will automatically set default parameters for working with the respective microcontroller. -
Page 10: Keyboard Shortcuts And Command Line Parameters
Reload hex code Command Line: The 8051Flash program may also be activated from the command line, thus enabling you to use it from some other software, compiler etc. Here is a list of the command line parameters: Write to 8051 microcontroller... - Page 11 MikroElektronika has been advised of the possibility of such damages. MikroElektronika reserves the right to change information contained in this manual at any time without prior notice, if necessary.
