Defining FC-101Net and
FC-102Net Dual Dante Interface
This section defines
FC-101Net:
ON SYS SYNC
Dual Dante Interface
# Feature
ON LED
1
SYS LED
2
SYNC LED
3
Dante PoE RJ-45
4
Port
DEF Push Button To reset/reboot the device, press and release the button.
5
OUT 1 5-pin
6
Terminal Block
Connector
OUT 2 5-pin
7
Terminal Block
Connector
RS-232 3-pin
8
Terminal Block
Connector
FC-101Net, FC-102Net – Defining FC-101Net and FC-102Net Dual Dante Interface
FC-101Net and FC-102Net.
DEF

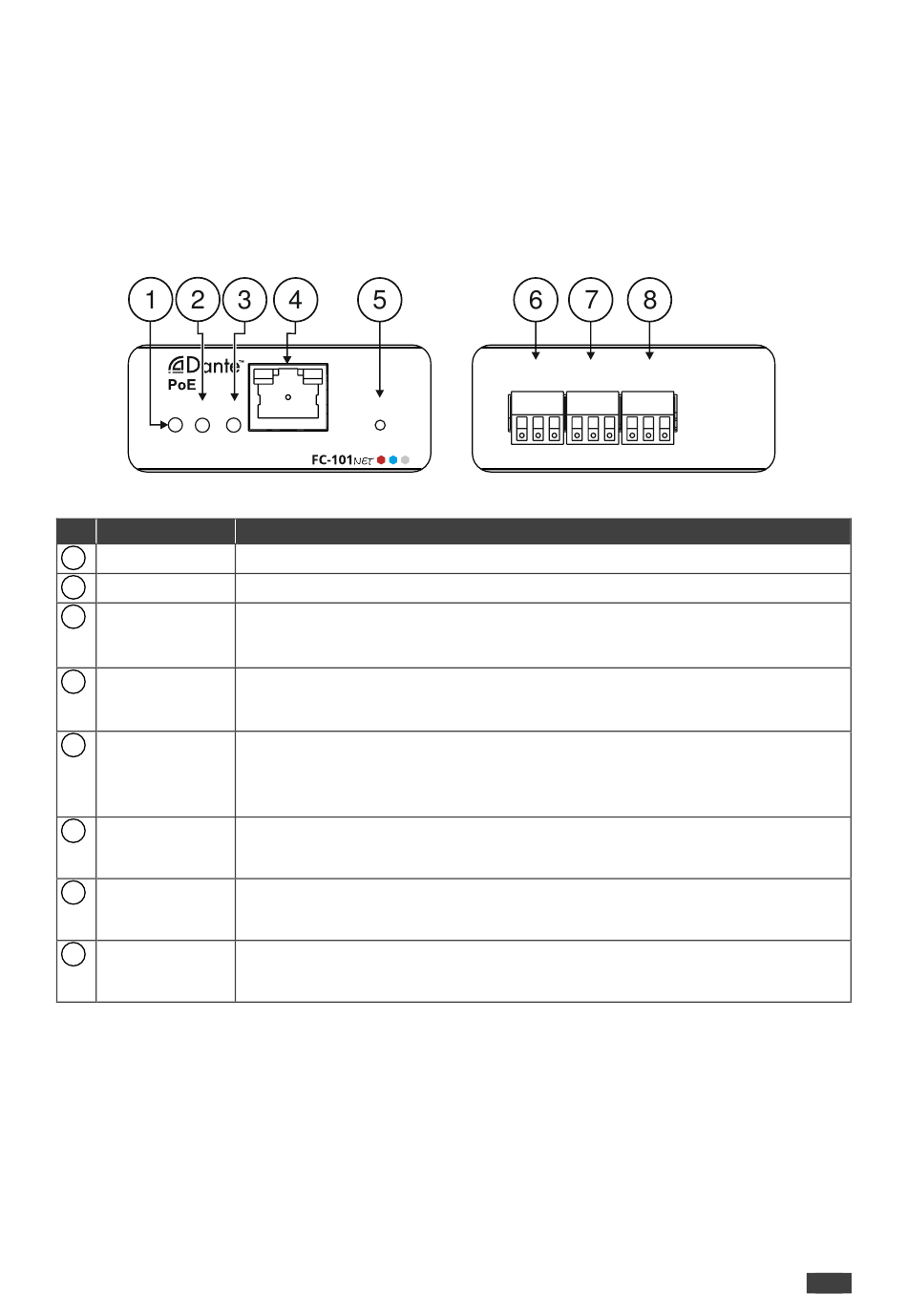

Figure 1: FC-101Net Dual Dante Interface Decoder
Function
Lights green when the device receives power.
Lights green when Dante network is available; red if an error has occurred.
Lights green for digital audio normal operation.
Flashes green when this unit is the Master clock.
Lights red if an error has occurred.
Connect to the Dante audio source via the Network and provide Power over
Ethernet (PoE) to the device.
By default, DHCP is enabled.
To reset to factory settings:
– Press and hold the button for 30 seconds.
FC-101Net
– Press and hold the button for at least 5 seconds.
FC-102Net
Connect to a single balanced stereo audio output together with OUT 2, or to a
mono output (+, –, G).
Connect to a single balanced stereo audio output together with OUT 1, or to a
mono output (+, –, G).
Connect to a serial controller to control this device.
OUT 1 OUT 2 RS-232
+ - G + - G
G Rx Tx
