Kramer FC-17 Quick Start Manual

FC-17 Quick Start Guide
This guide helps you install and use your FC-17 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
FC-17 4K HDMI Converter Tool
4 Rubber feet

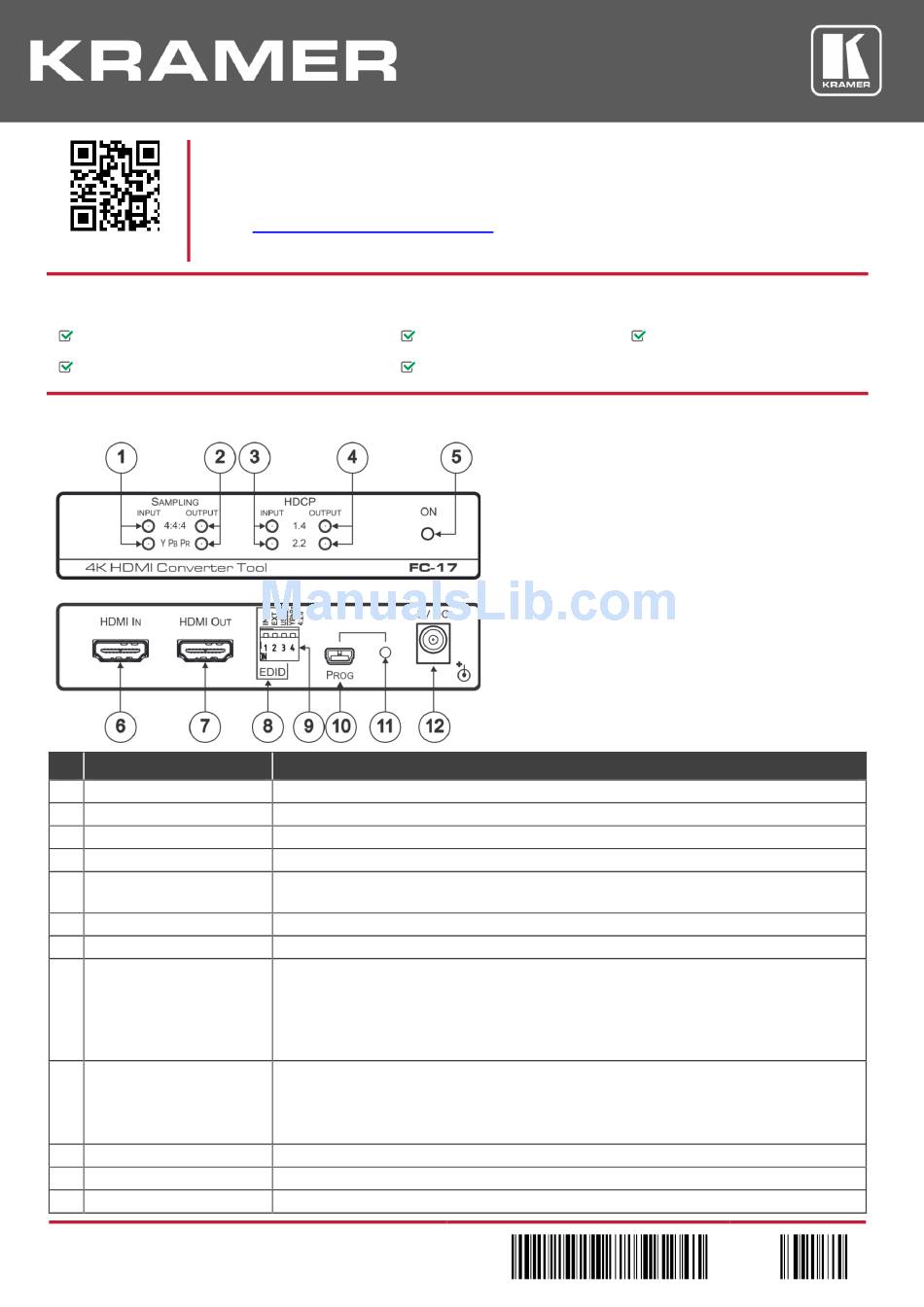

Step 2: Get to know your FC-17
# Feature
1 SAMPLING INPUT LEDs
2 SAMPLING OUTPUT LEDs
3 HDCP INPUT LEDs
4 HDCP OUTPUT LEDs
5 ON LED
6 HDMI IN Connector
7 HDMI OUT Connector
8 EDID DIP-Switches
9 YPbPr/420 DIP-Switch
10 PROG USB Port
11 Recessed Pushbutton
12 5V DC
FC-17 Quick Start (P/N: 2900-300840QS REV 2)
www.kramerav.com/downloads/FC-17
Function
Indicate the input chroma sub-sampling and color space
Indicate the output chroma sub-sampling and color space
Indicate the input HDCP standard
Indicate the output HDCP standard
Lights green when the unit is powered on; changes to red to indicate that a successful USB
LINK is established via the EDID Manager software
Connect to an HDMI source
Connect to the HDMI acceptor
DIP 1 (INT): When ON (down), the source sees the internal default EDID
DIP 2 (EXT): When ON (down), the source reads the EDID of the acceptor that is connected
to the HDMI output
DIP 3 (USER): When ON (down), the source reads a user-defined EDID
Note: For normal operation, only one EDID DIP-switch should be set to ON (down)
When ON:
4K50/60 YPbPr 4:4:4 signals are converted to 4:2:0
4K50/60 RGB signals are converted to YPbPr 4:2:0
Resolutions other than those above are bypassed
Connect to a PC for programming use with the application software and for firmware upgrade.
Use for the upgrade process
+5V DC connector for powering the unit
to download the latest user manual and check if firmware
1 Power supply (5V DC)
1 Quick start guide
P/N:
2900- 300840QS
TOOL Mounting bracket kit
Rev:
2
