Summary of Contents for Kramer FC-32
- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: FC-32 DVI to PC/Component Converter P/N: 2900-000487 Rev 5...
-
Page 3: Table Of Contents
Recycling Kramer Products Overview Defining the FC-32 DVI to PC/Component Converter Connecting the FC-32 Technical Specifications EDID Factory Default Data Figures Figure 1: FC-32 DVI to PC/Component Converter Figure 2: Connecting the FC-32 DVI to PC/Component Converter FC-32 – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer FC-32 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country... -
Page 7: Overview

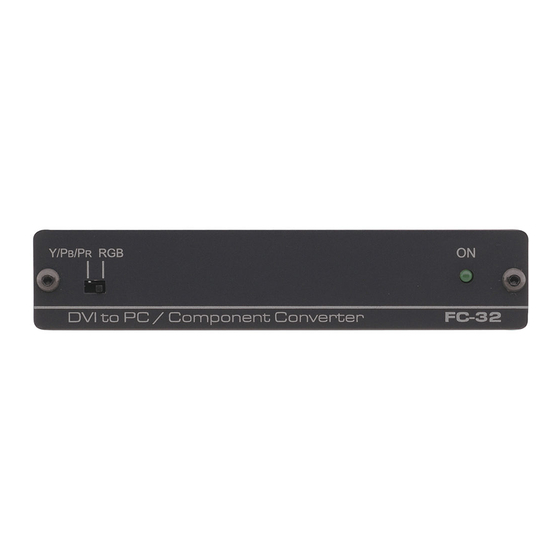

Overview The FC-32 is a high-performance format converter for digital DVI-D signals. It converts a DVI-D input to a computer graphics or component video output on a 15-pin HD connection. The FC-32 features: One DVI input on a 24-pin Molex connector ... -
Page 8: Connecting The
4. Connect the 5V DC power adapter to the power socket and connect the adapter to the mains electricity. Figure 2: Connecting the FC-32 DVI to PC/Component Converter Section 6 ). Note: The FC-32 is shipped with a fixed, factory default EDID (see FC-32 - Connecting the FC-32... -
Page 9: Technical Specifications
Up to WUXGA, 1080p VESA standard timing is supported. When the input timing does not comply to this standard, the FC-32 may not display correctly (for example, the pixel clock from a GeForce 6600 graphics card operating at 1600x1200 resolution is at 140MHz... -
Page 10: Edid Factory Default Data
1280 x 1024 @ 75Hz (VESA) (37) Manufacturer's Timings (Not Used) (38-53) Standard Timings 1920x1080 @ 60 Hz (16:9 Aspect Ratio) 1680x1050 @ 60 Hz (16:10 Aspect Ratio) 1440x900 @ 60 Hz (16:10 Aspect Ratio) FC-32 - EDID Factory Default Data... - Page 11 : 74 kHz Vertical: Active Time : 1200 Lines Blanking Time : 35 Lines Sync Offset : 3 Lines Sync Pulse Width: 6 Lines Border : 0 Lines Digital Separate, Horizontal Polarity (+), Vertical Polarity (+) FC-32 - EDID Factory Default Data...
- Page 12 Digital Separate, Horizontal Polarity (+), Vertical Polarity (+) Modeline: "1600x1200" 162.000 1600 1664 1856 2160 1200 1201 1204 1250 +hsync +vsync (126-127) Extension Flag and Checksum Extension Block(s) : 0 Checksum Value : 26 FC-32 - EDID Factory Default Data...
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. SAFETY WARNING Disconnect the unit from the power...
