Kramer FC-174 Quick Start Manual

FC-174 Quick Start Guide
This guide helps you install and use your FC-174 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
FC-174 4 Channel 4K HDMI Converter Tool
1 Power adapter and cord

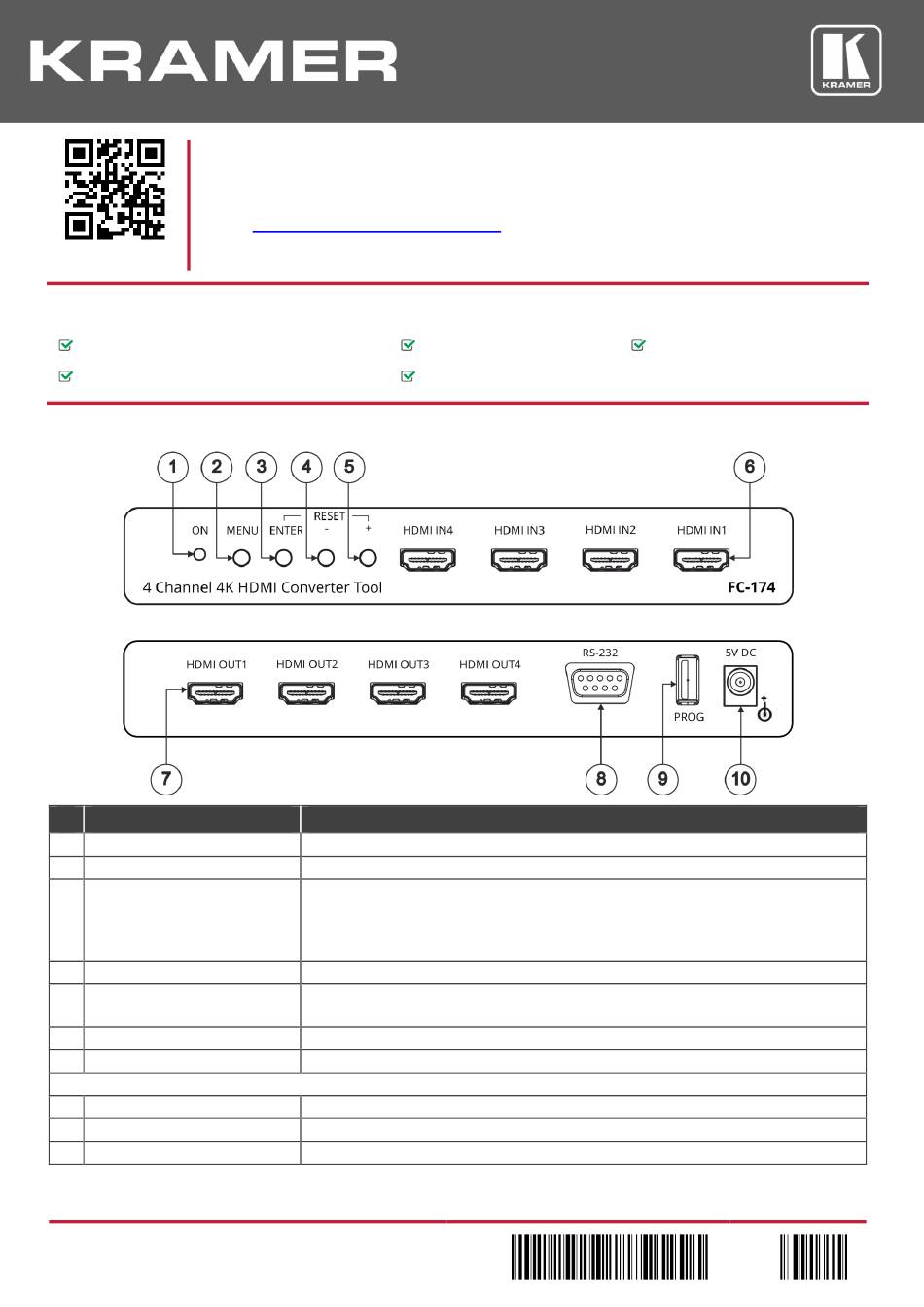

Step 2: Get to know your FC-174

# Feature
1 ON LED
2 MENU Button
3 ENTER Button
4 - Button
5 + Button
6 HDMI IN Connectors (1 to 4)
7 HDMI OUT Connectors (1 to 4)
Note that IN 1 to OUT 1 comprises Channel 1, IN 2 to OUT 2 comprises Channel 2 and so on.
8 RS-232 9-pin D-sub Connector
9 PROG USB Port
10 5V DC
FC-174 Quick Start (P/N: 2900-300939QS REV 1)
www.kramerav.com/downloads/FC-174
Function
Lights green when the unit is powered on.
Press to enter/exit the on-screen display (OSD) menu.
In the OSD, press to choose the highlighted menu item.
When not in the OSD, press to view information (enabled when a channel input and
output is connected and the channel Display Information is set to On).
Press ENTER and + simultaneously to reset the device to its default parameters.
In the OSD, press to move back through the list or to decrement the parameter value.
In the OSD, press to move forward through the list or to increment the parameter value.
Press ENTER and + simultaneously to reset the device to its default parameters.
Connect to HDMI sources.
Connect to HDMI acceptors.
Connect to a PC to control FC-174 via the Windows Application software.
Connect to a PC for firmware upgrade.
+5V DC connector for powering the unit.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N:
2 9 0 0 - 3 0 0 9 3 9 Q S
TOOL Mounting bracket kit
Rev:
1
