Kramer FC‑101NET Quick Start Manual

Kramer FC‑101NET Quick Start Manual

Hide thumbs Also See for FC‑101NET:

Advertisement

Scan for full manual
Step 1: Check what's in the box

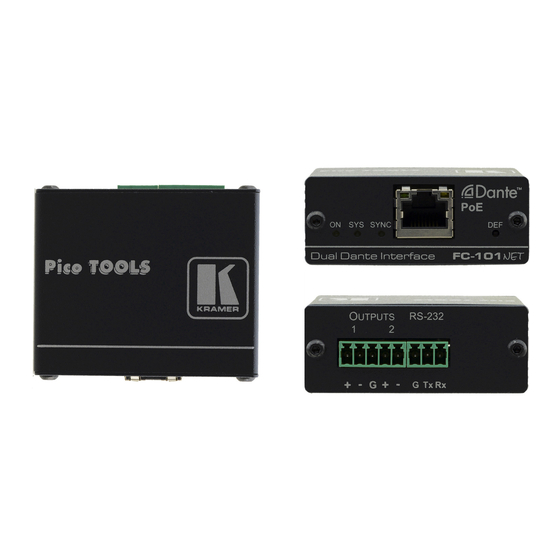

FC‑101NET Dual Dante Interface
1 Quick start guide

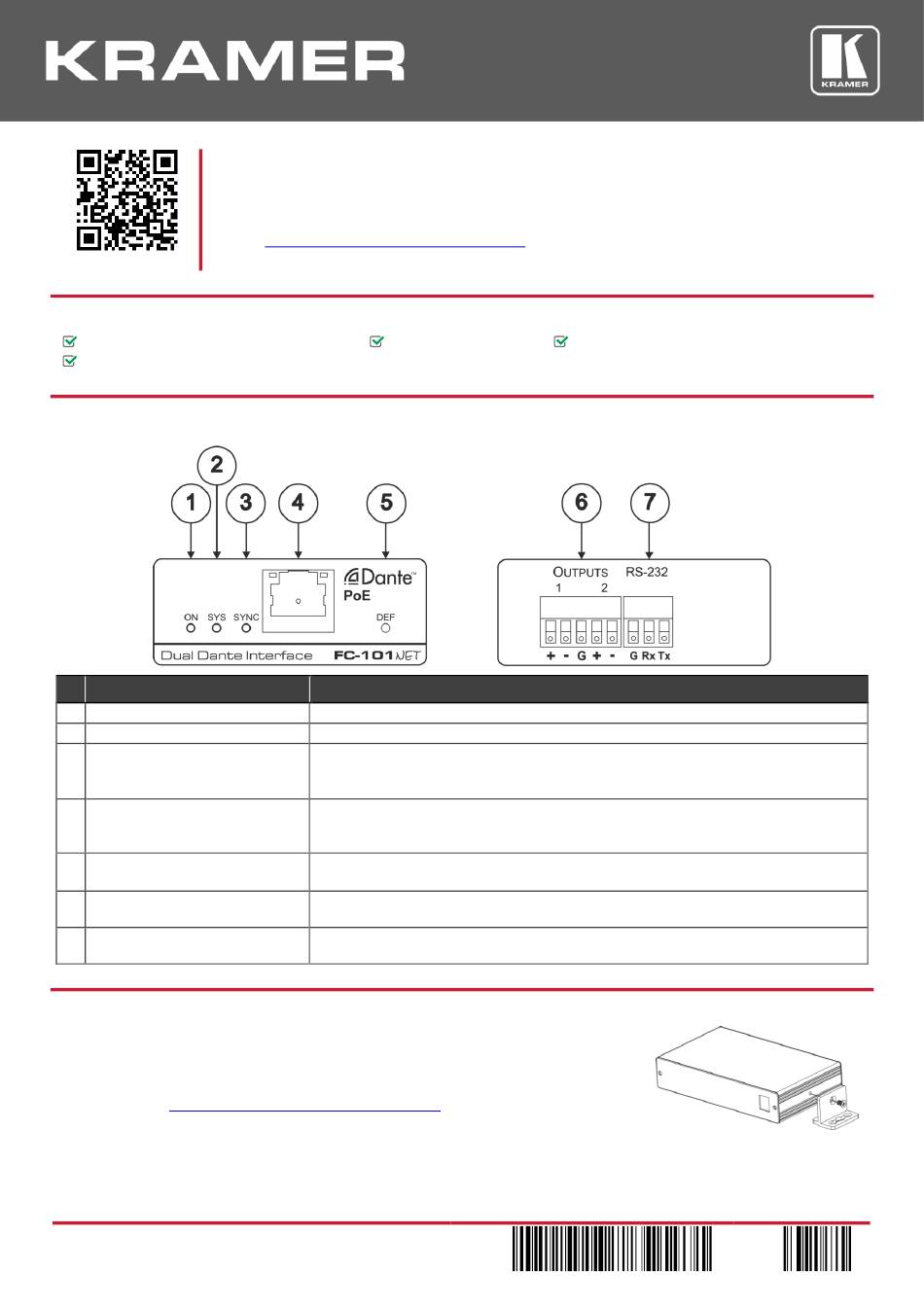

Step 2: Get to know your FC‑101NET
#
Feature
1
ON LED
2
SYS LED
3
SYNC LED
4
Dante PoE RJ-45 Port
5
DEF Push Button
6
OUTPUTS 1 and 2 5-pin Terminal
Block Connector
RS-232 3-pin Terminal Block
7
Connector
Step 3: Install FC‑101NET
Install FC‑101NET using one of the following methods:
Attach one side of the adhesive dual lock tape to the metallic surface of the device and the
other to a flat surface.
Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more
information go to www.kramerav.com/downloads/FC-101NET.
Mount the unit in a rack using an optional RK-4PT rack adapter.
FC‑101NET Quick Start
FC‑101NET Quick Start Guide
This guide helps you install and use your FC‑101NET for the first time.
Go to
www.kramerav.com/downloads/FC-101NET
upgrades are available.
1 Bracket set
Function
Lights green when the device receives power.
Lights green when Dante network is available; red if an error has occurred.
Lights green for digital audio normal operation.
Flashes green when this unit is the Master clock.
Lights red if an error has occurred.
Connect to the Dante audio source via the Network and provide Power over Ethernet
(PoE) to the device.
By default, DHCP is enabled.
To reset/reboot the device, press and release the button.
To reset to factory settings, press and hold the button for 30 seconds.
Connect to a single balanced stereo audio output or two separate mono outputs
(+, –, G).
Connect to a serial controller to control this device.
to download the latest user manual and check if firmware
Double-sided adhesive dual lock tape
P/N: 2 9 0 0 - 3 0 0 8 6 1 QS
Rev: 2
