Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: FC-113 HDMI to SD/HD-SDI Converter... -
Page 2: Table Of Contents
Connecting the FC-113 HDMI to SD/HD-SDI Converter Technical Specifications Figures Figure 1: FC-113 HDMI to SD/HD-SDI Converter Figure 2: Connecting the FC-113 HDMI to SD/HD-SDI Converter Tables Table 1: FC-113 HDMI to SD/HD-SDI Converter Features Table 2: Technical Specifications of the FC-113 HDMI to SD/HD-SDI Converter... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Overview
SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M) signals. It converts an HDMI input to two identical SDI video with embedded audio output signals. The FC-113 does not perform frame rate or resolution conversion The FC-113 features: •... -
Page 5: About Hdmi
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital audio/video interface, widely supported in the entertainment and home cinema industry. It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. In particular, HDMI •... -
Page 6: About Hdcp
(often associated with low quality cables). • Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer FC-113 away from moisture, excessive sunlight and dust Caution – No operator-serviceable parts inside unit. -
Page 7: Your Fc-113 Hdmi To Sd/Hd-Sdi Converter

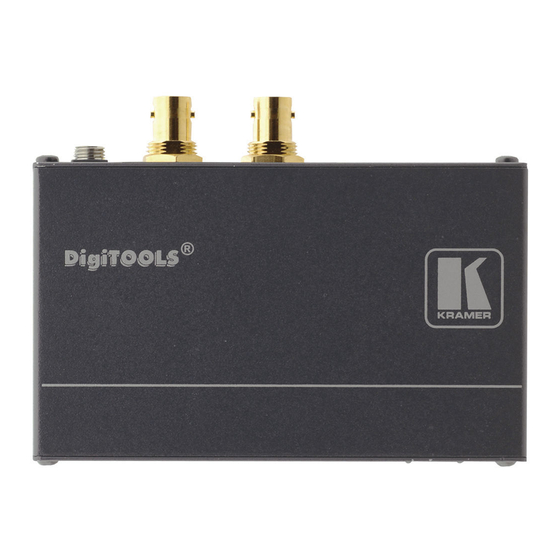

Your FC-113 HDMI to SD/HD-SDI Converter Figure 1 Table 1 define the FC-113 HDMI to SD/HD-SDI Converter: Figure 1: FC-113 HDMI to SD/HD-SDI Converter Table 1: FC-113 HDMI to SD/HD-SDI Converter Features Feature Function HDMI IN Connector Connects to an HDMI source... -
Page 8: Connecting The Fc-113 Hdmi To Sd/Hd-Sdi Converter
Figure 2: Connecting the FC-113 HDMI to SD/HD-SDI Converter 1 Switch OFF the power on each device before connecting it to your FC-113. After connecting your FC-113, switch on its power and then switch on the power on each device... -
Page 9: Technical Specifications
Technical Specifications Technical Specifications The FC-113 technical specifications are shown in Table Table 2: Technical Specifications of the FC-113 HDMI to SD/HD-SDI Converter INPUT: 1 HDMI connector OUTPUTS: 2 SD/HD-SDI, 3G HD-SDI on BNC connectors INPUT FORMATS: 525i, 625i 1080p23.98/24/25/29.97/30 1080i50/59.94/60... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
