3.0 Electrical installation

3.1 Voltage output units

Model 223 voltage output transducer is supplied with a multi-conductor cable or various style
connectors. See diagram 1 & 2 for proper connections.
Diagram 1: Connection table for voltage output transducers
Full scale
range Cable wire
+ Excitation Red
+ Output Green
- Output White
- Excitation Black
Case GND Shielding
Excitation: 10-30 VDC for 0.2 to 5.2 VDC and 0 to 5 VDC & 13-30 VDC for 0.2 to 10.2 VDC
and 0 to 10 VDC
NOTE: "-Excitation" and "-Output" are connection together internally.

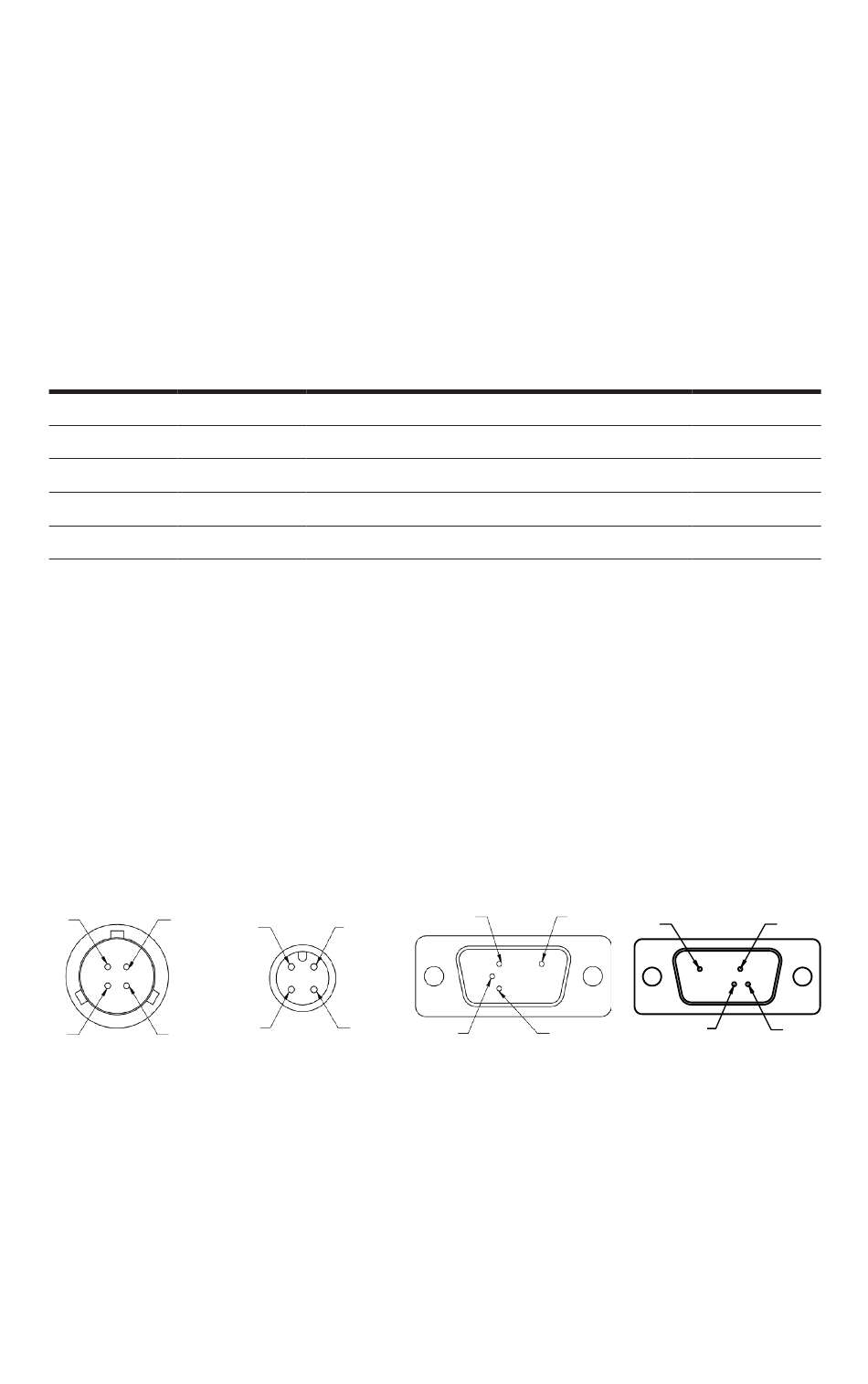

Diagram 2: Transducer Pin out
C B
D A
4 PIN Bayonet
Bayonet pin
A
B
C
D
Shell
2 1
3 4
4 PUN M12 A
4 PIN M12 15 PIN DSUB 9 PIN DSUB
1 7
4 2
2 12
3 5
Shell Shell
2 5
7 12
15 PIN Density DSUB
5
4
1
8
9
Shell
1
4
8 9
8
9
9 PIN DSUB
