Set to BRAKE

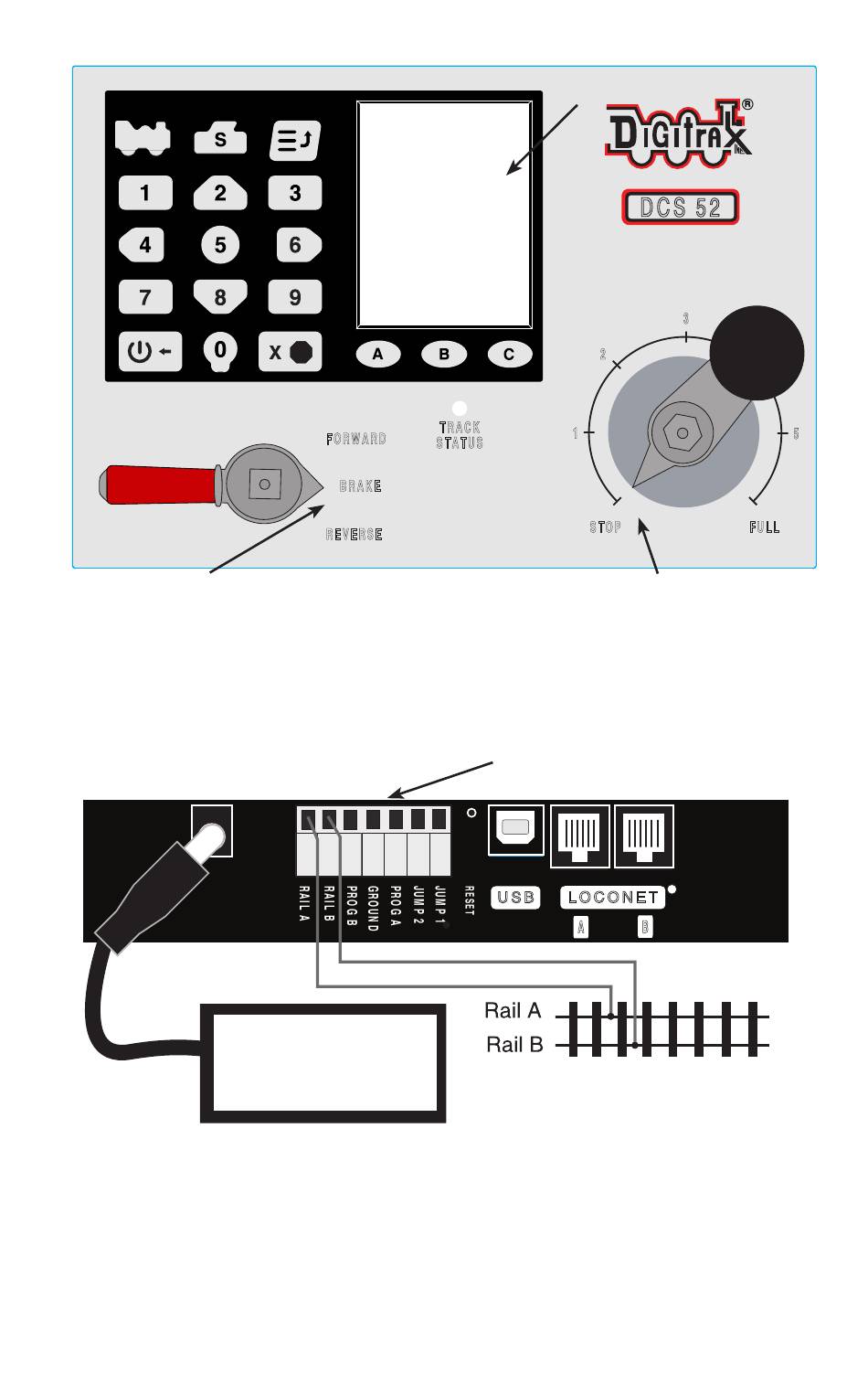

2.3 Connect Your DCS52

DC IN:
from PS314
13.8V / 3A
1. Locate the gray screw terminal strip on the back of your DCS52.
2. Locate the two terminals labeled RAIL A and RAIL B on the grey termi-
nal strip. Connect wires from your track to these terminals, one for each
rail. It does not matter which rail is connected to which terminal.
© 2019 Digitrax, Inc.
F O R W A R D
B R A K E
R E V E R S E
Zephyr Express Front
PS314
Zephyr Express Rear Connections
6 6
Display
T R A C K
1
S T A T U S
S T O P
Set to STOP
Screw Terminal Strip
U S B L O C O N E T
A
R
D C S 5 2
3
2 4
F U L L
R
B
www.digitrax.com
5
