Digitrax Zephyr Express DCS52 Manual page 35

To run a locomotive address on Jump 1 or Jump 2:
1. Press the B Soft Key "Active", until you have Jump Port throttle you want
to run in the Loco Info Area of the display, if nothing is selected the last
selected address will be show in all grey. If a loco is selected on the throttle
you wish you use, you will need to reselect it, by pressing the Loco Key,
then the Exit/Stop Key.
2. To select a loco on a Jump port or to change the loco that is already there
follow the same procedure you'd use to select a loco on the local throttle.
Press the Loco Key, the address will begin flashing to let you know that the
loco selection is pending. The display will now show the last loco that was
selected on this throttle.
3. Use the numeric keypad to enter the loco address you want to run and press
the Loco Key again to select it on the selected jump port. The display will
be steady and you will be able to control the speed and direction of the loco

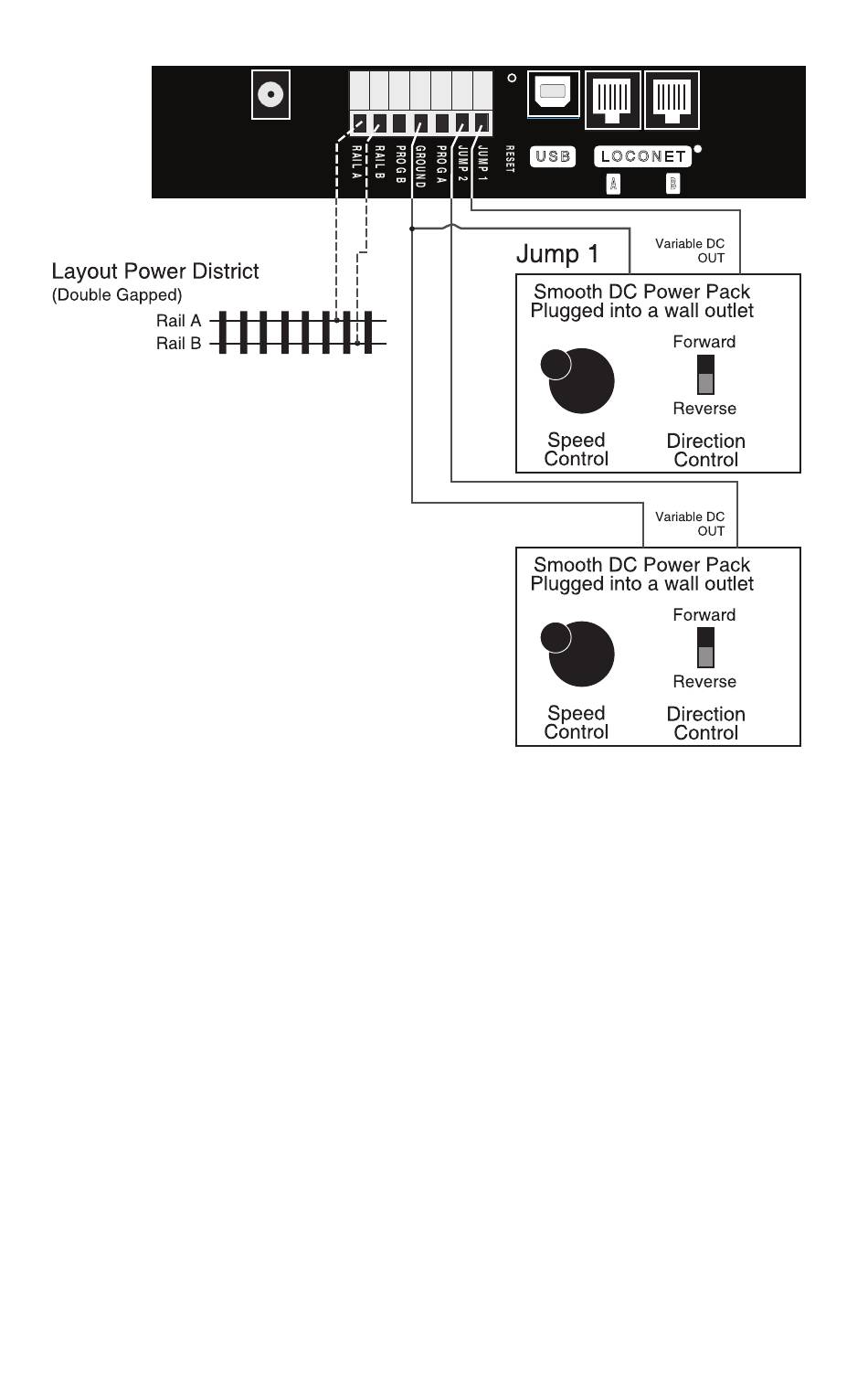

you selected using the DC power pack attached to the jump port.
4. When you have Jmp1 or Jmp2 on the DCS52's Loco Info Area of the
display, you can use the numeric keys to make changes to the function con-
trols on the selected loco (turn on/off lights etc.). The smooth DC power
pack being used as the for the Jmp1 or Jmp2 throttle will continue to con-
© 2019 Digitrax, Inc.
DC IN:
from PS314
13.8V / 3A
35
U S B
Jump 2
35
R
L O C O N E T
A B
