- Page 1 Hot Water Cylinder Assembly and operating manual...
-
Page 3: Product Description

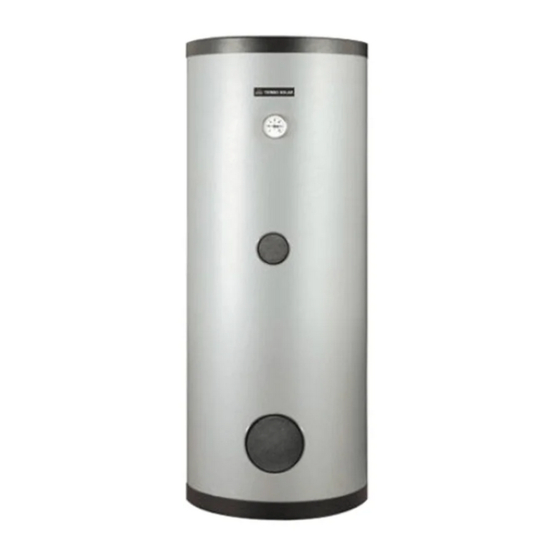

Product description SE Cylinder is intended to hold the domestic hot water. A main unit element is vitreous enamel coated steel tank. Magnesium anode creates additional active anticorrosion protection. Thermal insulation ensures high thermal accumulation. SE Cylinder is suitable for fitting an immersion heater with thermostat (e.g. GRW 1.4, GRW 2.0,..). -
Page 4: Installation
Installation • Cylinder is designed for vertical mounting only (screw on feet). • Connection to the water supply system must be made after mounting. • Pipes must be made in accordance with diagram in this installation instruction. Failure to observe the installation instruction invalidate the warranty and may cause cylinder damage. - Page 5 Construction ø500 SE Cylinder construction (140 litres) [6] - sensor pipe [7] - immersion heater connector (cork 1½)’’ [8] - thermal insulation [9] - thermometer [10] - magnesium anode [11] - upper lid [14] - lower lid [15] - feet C - circulation A-D - dimensions described in data table SE Cylinder construction (200 litres)
- Page 6 ø695 (250, 300 l) SE Cylinder construction 250,300 litres 400,500 litres [6] - sensor pipe [7] - immersion heater connector (cork 1½)’’ [8] - thermal insulation [9] - thermometer [10] - magnesium anode [11] - upper lid [12] - access hole ø 150/115 [13] - access hole cover ø755 (400 l) [14] - lower lid...
- Page 7 SE Cylinder construction ø950 (800 l) ø1010 (1000 l) SE-800 and 1000 [6] - sensor pipe [7] - immersion heater connector (cork 1½)’’ [8] - thermal insulation [9] - thermometer [10] - magnesium anode 1 [11] - upper lid [12] - access hole ø 150/115 [13] - access hole cover [14] - lower lid [15] - feet...
-
Page 8: Operation
Operation • Check out the safety valve performance once every 14 days. Do not use the cylinder if the water does not come out (it indicates that the valve is broken). • Clean inside of the cylinder periodically. The frequency of cleaning depend on the degree of water hardness. -
Page 9: Technical Data
Technical data GB-042_... - Page 12 KOSPEL S.A. 75-136 Koszalin, ul. Olchowa 1 tel. +48 94 31 70 565 serwis@kospel.pl www.kospel.pl...
