- Page 2 Please read and follow the installation and operating instruction carefully to ensure product reliability and long lasting performance. Kospel S.A may make a minor changes if necessary in the device that will not shown in the operating instruc- tion, as long as the main features of the device remain the same.
-
Page 3: Product Description

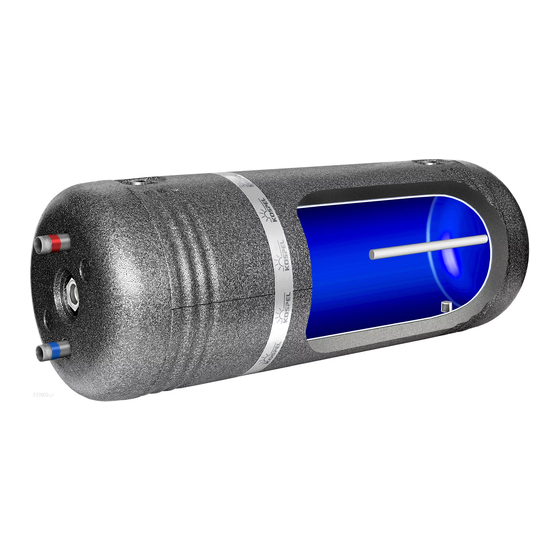

Hot water cylinder is a device for heating and storing the water. It’s suitable for co-operation with low-temperature Product description heating boilers. The main element of device is vitreous enamel coated steel tank. • The WZ cylinder (container) – is equipped with pipe connectors for external connection e.g. to the coil of solid fuel cooker. -
Page 4: Installation
Mounting Installation • the device is designed for horizontal installation only, • must be connected to the water supply and central heating system after mounting, The device must be installed • pipes connection should be made in accordance with diagram in this installation instruction. Failure to observe the and started-up by an authorised installation instruction may invalidate the warranty and cause damage, serviceman. - Page 5 Fig.1 Scheme of domestic hot water cylinder connection domestic hot water cylinder with the heating coil or water jacket. domestic hot water cylinder fed directly by the coil in the solid fuel cooker [1] - cold water inlet [2] - hot water outlet [3] - drain valve [4] - hot water inlet [5] - hot water return [6], [7] - olid fuel cooker connection [8] - cut-off valve [9] - non-return valve [10] - safety valve [11] - pump [12] - solid fuel cooker...
- Page 6 Fig.2a, 2b Construction [1] - cold water inlet [2] - domestic hot water outlet [4] - hot water inlet [5] - hot water return [6], [7] - solid fuel cooker connection [15] - magnesium anode [16] - cork 1½“ [17] - heating coil [19] - connector for circulation [21] - pipe temperature sensor A,C - dimensions specified in the technical data table on page 3. G3/4 (internal thread) typ WZ G3/4 (internal thread) typ WW...
- Page 7 Fig.2c, 2d Construction [1] - cold water inlet [2] - domestic hot water outlet [4] - hot water inlet [5] - hot water return [6], [7] - solid fuel cooker connection [15] - magnesium anode [16] - cork 1½“ [17] - heating coil [19] - connector for circulation [21] - pipe temperature sensor A,B,C - dimensions specified in the technical data table on page 3. G3/4 (internal thread) typ WB G1 (internal thread) G3/4 (internal thread)
-
Page 8: Operation
Check pipe connections and make sure that you follow the device installation procedures before start-up. Start-up The hot water cylinder, central heating system and heating coil need to be filled out with the water in the following way: • turn on the valve on cold water inlet, •... -
Page 9: Set Contents
Domestic hot water cylinder pcs. Set contents ENG-019/...
