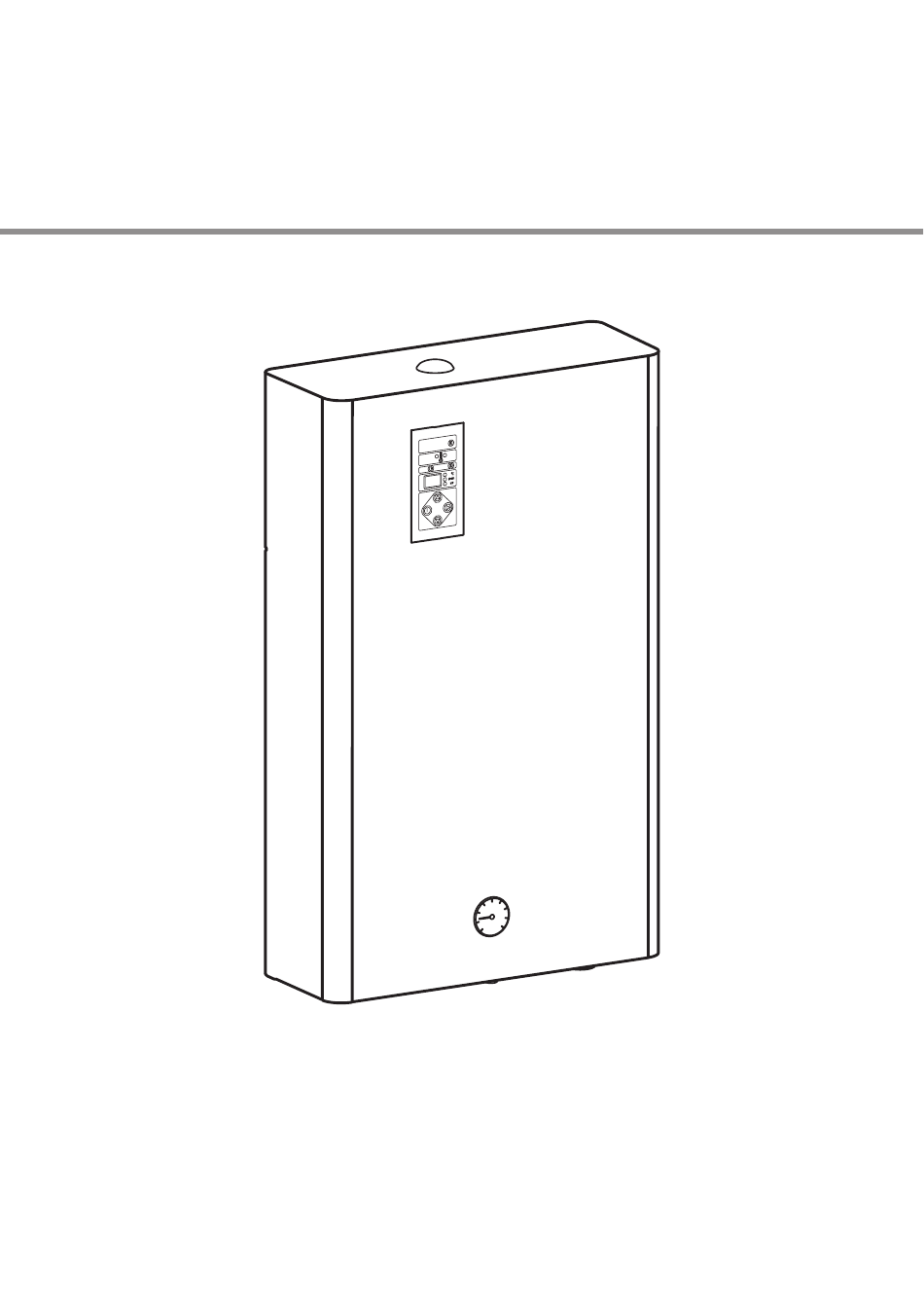

- Page 1 ELECTRIC CENTRAL HEATING FLOW BOILER EKCO.T...
- Page 2 Used product can’t be treated as general communal waste. Disassembled appliance has to be delivered to the collection point of electrical and electronic equipment for recycling. Appropriate utilisation of used product prevents potential negative environmental influences that may occur as a result of inappropriate handling of waste. In order to get more detailed information about recycling this product you should contact the local government unit, waste management service or the shop where this product has been purchased.
-
Page 3: Safety Instructions
Safety instructions Read and strictly follow this installation and operating instructions to ensure a long life and reliable boiler operation. An efficient electrical installation which has been completed in accordance with the binding norms of electric installation. A wet central heating system equipped with appropriate expansion vessel made according to binding norms of hydraulic installation. -
Page 4: Installation Work
Installation work Hang the boiler up in a vertical position on fixing screws with inlet and outlet pipes to the bottom, maintaining clearances from the walls and the ceiling. Connect the boiler to a central heating system equipped with cut-off valves. Fill the central heating system with a treated water, that extends the life of the heating elements. -
Page 5: Connection Of External Appliances
ZAS - connection point of three-way valve Tzas - connection point of water temp. sensor (in cylinder) WE - 008 - KOSPEL water temp. sensor (in cylinder) C - cylinder thermostat A - Auraton 2005 room thermostate B - master appliance... -
Page 6: Advanced Settings
Advanced settings For advanced settings switch the control panel to standby mode (press and hold button for 3 seconds) then press and hold , button, and press shortly. To select parameter press buttons enable you to change the value: working mode of pump – PA (automatic), Pr (manual – continuous duty of pump), max. - Page 7 Start up Disconnect the NA contacts. Set the pump on manual mode, see the „Advanced settings” section. Switch the boiler on (press button). Check pump mode is set to the rec- ommended factory setting (see Table Below). To do this press button for no more than 2 seconds.
-
Page 8: Control Panel
Rated power Pump lifting LED 1 LED 2 LED 3 LED 4 LED 5 [kW] height [m] yellow yellow yellow yellow ● ● ● ● ● ● ● ● ● 30 - 48 ● ● ● Control panel A - DHW cylinder indicator B - pump and flow indicator C - heating on and room thermostat indicator D - inlet temperature indicator... - Page 9 cordance with current weather conditions (outdoor temperature), taking into account the building parameters (e.g. compactness, insulation, windowing etc.). Optimum settings of the medium temperature can reduce the boiler operating costs. When the boiler works in winter mode (C.H + DHW heating) the three way valve directs the heating medium to either central heating or feed cylinder circuit.
- Page 10 Failures symptom reason action check parameters of the power network Control panel indica- and fuses lack of boiler power supply tors are off contact the seller Unblock the rotor of the pump by insert- ing a screwdriver into slot that is placed pump is blocked in front of the pump (as shown in the figure on page no.7).
-
Page 11: Technical Data
Technical data Max. pressure Min. pressure 0,05 Outflowing water temp. °C 40 ÷ 85 Max. water temp. °C Overall dimensions 815 x 503 x 197 Weight Water connection G1" Safety class IP 21 Rated power consumption Rated voltage 400V~ Rated current 3 x 43,3 3 x 52,0 3 x 60,6... - Page 12 KOSPEL S.A. ul. Olchowa 1 75-136 Koszalin tel. +48 94 346 38 08 info@kospel.pl www.kospel.pl...
