- Page 1 SERVICE MANUAL EKCO.T ECKO.TM 17.11.2020 KOSPEL S.A. KOSZALIN ul. Ol cho wa 1...
-
Page 2: Table Of Contents
Exterior view of boilers. Pic.1a EKCO.T boiler Pic.1b EKCO.TM boiler Construction of boilers. Pic.2a Construction of the boiler EKCO.T Pic.2b Construction of the boiler EKCO.TM Control panel PSK.P4 EKCO.T Pic.3a Front view of the control panel. Pic.3b Back view of the control panel. - Page 3 11. DHW tank connection Pic.11a Connection diagram for the DHW tank (EKCO.T) Pic.11b Connection diagram for the DHW tank (EKCO.TM) 12. Cascade connection. Pic.12 An exemplary diagram of the heating system. Boilers supply the heating circuits directly Pic.13 An exemplary diagram of the heating system. Boilers supply the hydraulic clutch.
-
Page 4: Exterior View Of Boilers

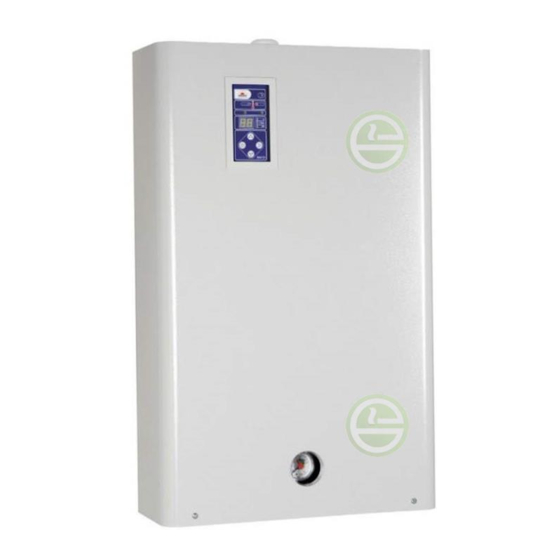

Exterior view of boilers. Pic.1a EKCO.T boiler 01214 01219 00035 01205 Service manual EKCO.T/EKCO.TM... -
Page 5: Pic.1B Ekco.tm Boiler
Pic.1b EKCO.TM boiler 01217 01220 00035 01216... -
Page 6: Construction Of Boilers
Construction of boilers. Pic.2a Construction of the boiler EKCO.T Service manual EKCO.T/EKCO.TM... -
Page 7: Pic.2B Construction Of The Boiler Ekco.tm
Pic.2b Construction of the boiler EKCO.TM... -
Page 8: Control Panel Psk.p4 Ekco.t
Control panel PSK.P4 EKCO.T Pic.3a Front view of the control panel. Pic.3b Back view of the control panel. Service manual EKCO.T/EKCO.TM... -
Page 9: Advanced Settings Psk.p4 Ecko.t
3.1 Advanced settings PSK.P4 ECKO.T Advanced settings. For advanced settings switch the control panel to standby mode (press and hold button for 3 seconds) then press and hold button, and press shortly. To select parameter press buttons enable you to change the value: - working mode of pump –... -
Page 10: Failure Modes Of Psk.p4 Front Panel
Return or supply temperature sensor. displayed replace the required sensor. blinking or the (Nominal resistance of the temperature sensor return or supply temperature Control panel failure Replace the control panel PSK.P4 Service manual EKCO.T/EKCO.TM... -
Page 11: Control Panel Psk.m2 Ekco.tm
Control panel PSK.M2 EKCO.TM Pic.4a Front view of the control panel 1. Display 2. Buttons Pic.4b Back view of the control panel. 3. ZIO-24 connection point 4. Cascade connection socket 5. ZIO-24 connection point 6. Supply temperature sensor connection point (left heating box) 7. -
Page 12: Control Panel Psk.m2 Ekco.tm - Extended Menu
Some of the factory settings e.g. „3F_e”, after completing this function, may be not suitable for this particular version of the boiler or installation system. Please maintain cautious while using this function. When you save your changes, the controller will reset automatically. Service manual EKCO.T/EKCO.TM... -
Page 13: Failure Modes Of Psk.p4 Control Panel
Failure modes of PSK.P4 control panel. "Faults” display view shows possible failures: ow failure, outdoor/room temperature sensor failure, inlet outlet boiler sensor failure. The controller enables failure detection and identi cation (short circuit or sensor disconnection/ missing). Tab.3 Failures Symptoms Reason Operation Check the mains and the main fuses. -
Page 14: Zio-23 Board Ekco.t
ZIO-23 board EKCO.T Pic.5 Description of ZIO-23 board. Tzas – connection point of DHWT water electronic temperature sensor DS-1820 WZ – connection point of DHWT thermostat RP – room thermostat connection point (or jumper) NA - master appliance connection point (or jumper) ZTD –... -
Page 15: Connection Of Control Panel Psk.p4 And Zio-23 Board
Connection of control panel PSK.P4 and ZIO-23 board. Pic .6 Connection of control panel PSK.P4... -
Page 16: Zio-24 Board Ekco.tm
- second circuit pump operation indicator - control panel PSK.M2 connection point - 230 volt on U- connection indicator (ZTM three way mixing valve) - 230 volt on U+ connection indicator (ZTM three way mixing valve) - control panel PSK.M2 communication indicator Service manual EKCO.T/EKCO.TM... -
Page 17: Connection Of Control Panel Psk.m2 And Zio-24 Board
Connection of control panel PSK.M2 and ZIO-24 board. Pic.8 ZIO-24 board connection... -
Page 18: Heating Box
è ã ì æ å Û Ü Ý Þ ß à ê ì â ã ä â á ë ã ì æ ë è ä â æ ê ã å æ ë è ä ã æ é Service manual EKCO.T/EKCO.TM... -
Page 19: Connection Diagram Of Heating Box
10. Connection diagram of heating box. Pic.10 Connection diagram of heating box. ZIO-23 or ZIO-24... -
Page 20: Dhw Tank Connection
11. DHW tank connection Pic.11a Connection diagram for the DHW tank (EKCO.T) Pic.11b Connection diagram for the DHW tank (EKCO.TM) Thermostat Thermostat Tpok Tzew Tco2 Tzas STATUS ZIO23 black black brown brown blue blue POMPA Service manual EKCO.T/EKCO.TM... -
Page 21: Cascade Connection
12. Cascade connection. í î ï ð ñ ò ð î ò ò ó ð ô ò ï õ ö ó ÷ î ø ö î ù ú ó ÷ û ô î ù ò ð ÷ ó ñ û ó... -
Page 22: Pic.14 Additional Electrical Connection For Boilers In Cascade
To set the EKCO.TM to work in cascade change the „Nr” parameter in the „Extended Menu” for a required number of slave boiler. To set the EKCO.T to work in cascade the „Extended Menu” settings have to be changed: a) set for „r1”... -
Page 23: Wiring Diagram
13. Wiring diagram Pic.15 Wiring diagram... -
Page 24: Pump Grundfos Upm3 Flex As
To do this, please use PH2 screwdriver, press and turn the screw le , located in the middle of the front panel of the pump . e pump impeller should be unblocked then. Service manual EKCO.T/EKCO.TM... -
Page 25: Pump Wilo Yonos Para
14.1 Pump Wilo Yonos Para Pic.17. Settings via operating knob Variable di erential pressure e di erential-pressure setpoint H is increased linearly over the permitted volume ow range between ½H and H. e di erential pressure generated by the pump is adjusted to the corresponding di erential-pressure setpoint. -
Page 26: Pump Wilo Yonos Para - Alarm Status
14.2 Pump Wilo Yonos Para - alarm status Tab. 7. Alarm status Service manual EKCO.T/EKCO.TM... -
Page 27: Spare Parts List
Tab.8 Parts list Amount Pos. Service code Picture number Name Notice (pcs) 01200 EKCO.T-01.00.0004 Heating box EKCO.T/TM 30kW/400V (15kW) 01201 EKCO.T-01.00.00/03 Heating box EKCO.T/TM 36kW/400V (18kW) 01202 EKCO.T-01.00.00/02 Heating box EKCO.T/TM 42kW/400V (21kW) 01203 EKCO.T-01.00.00/01 Heating box EKCO.T/TM 48kW/400V 01205 EKCO.T-03.01.00... -
Page 28: Technical Data
16. Technical data Tab.9 Technical data Max. pressure Min. pressure Outflowing water temp. °C 40 ÷ 85 Max. water temp. °C Overall dimensions 815 x 503 x 197 Weight Water connection G1" Safety class IP 21 Service manual EKCO.T/EKCO.TM... - Page 29 KOSPEL S.A. ul. Olchowa 1 75-136 Koszalin tel. 94 346 38 08 serwis: 94 317 05 65 e-mail: serwis@kospel.pl www.kospel.pl Compiled: Łukasz Pelech Paweł Wojtanowski Przemysław Biegański...
