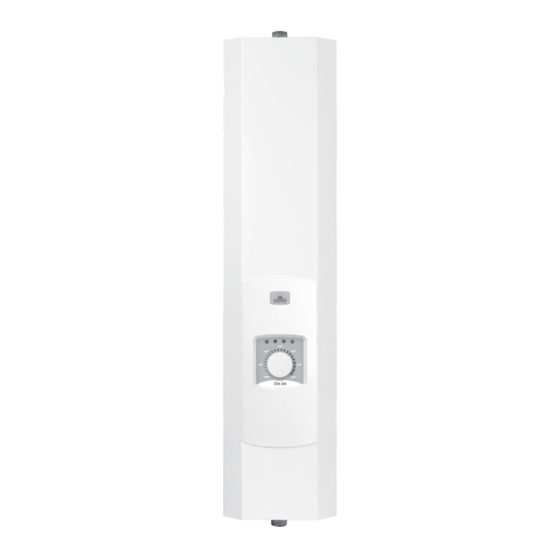

Electric central heating flow boiler

Advertisement

Quick Links

ELECTRIC CENTRAL HEATING FLOW BOILER
EKCO.A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKCO.A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kospel EKCO.A1

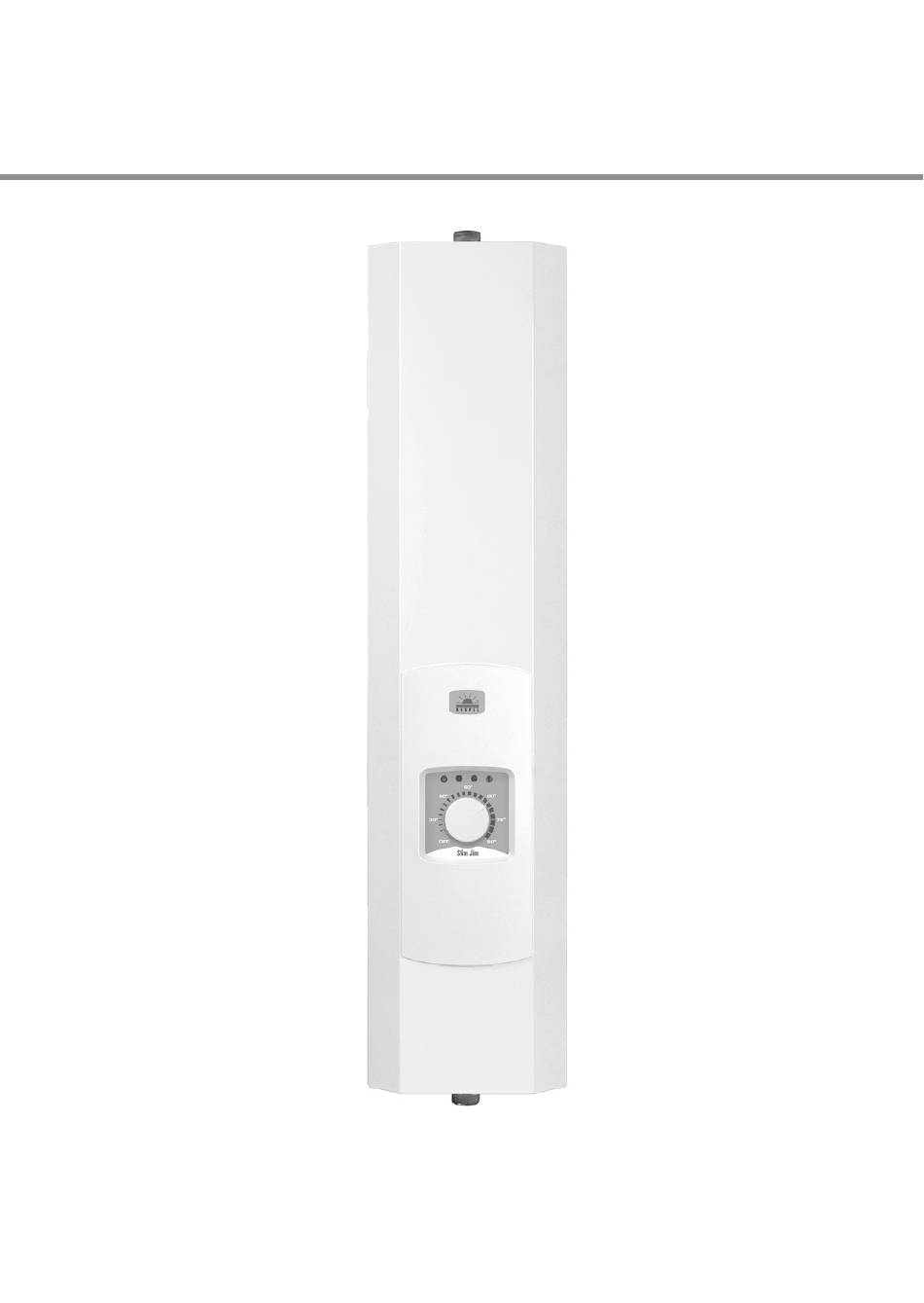

  • Page 1 ELECTRIC CENTRAL HEATING FLOW BOILER EKCO.A1...
  • Page 2 Used product can’t be treated as general communal waste. Disassembled appliance has to be delivered to the collection point of electrical and electronic equipment for recycling. Appropriate utilisation of used product prevents potential negative environmental influences that may occur as a result of inappropriate handling of waste. In order to get more detailed information about recycling this product you should contact the local govern ment unit, waste management service or the shop where this product has been purchased.
  • Page 3: Safety Instructions

    Safety instructions Read and strictly follow the installation and operating instructions to ensure a long life and reliable boiler operation. An efficient electrical installation which has been completed in accordance with the binding norms of electric installation. A wet central heating system equipped with appropriate expansion vessel made according to the binding norms of hydraulic installation.
  • Page 4: Installation

    Installation In order to take off the front cover, undo the fixing screws and discon- nect the protective wire. For fixing the M4x8 unit permanently leave free space at the top and bottom for access tool to unscrew the screws. Hang the boiler up in a vertical posi- tion on fixing screws with the inlet and outlet pipes to the bottom.
  • Page 5 Connection to the three phase system. Connection to the single phase system PNL - points of neutral and protective conductor PNL - connection points of neutral, protective and connection phase conductor PF - points of phase conductors connection. [1] - temperature limiter [1] - temperature limiter (for 4, 6kW boilers, take [2] - additional conductor (for single phase off the [2] wire set)
  • Page 6: Connection Of External Appliances

    Connection of external appliances [3] - RT- Room Thermostat contacts entries [4] - Pump- Circulating Pump entry [5] - LED- Room Thermostat on, signal [6] - Pump LED - Pump on, signal [7] - Set up switches a) - „Pump mode” working mode of the pump b) - JP3 unused c) - JP4 unused [8] - front panel connection...
  • Page 7: Front Control Panel Operation

    Start-up Connect the circulating pump according to the description in „Connection of external appliances”. Set the pump mode switch to the „On” position. Disconnect a room thermostat from RT entry [3]. Set the knob [10] at any temperature e.g 50 degress .The boiler will start the pump but it will not start the heating.
  • Page 8 Signals A room Turn on Heating Fault thermostat light off light off light off light off Boiler OFF. light off light off light off light on Boiler on but does not heat, room thermostat does not allow for it. light on light on light on light off...
  • Page 9: Technical Data

    Technical data Max. pressure Min. pressure 0,05 Out flowing water temp °C 30 ÷ 80 Max water temp. °C Overall dimensions (height x width x depth) 912 x 203 x 172 Weight Water connection Safety class IP 22 Rated power consumption Voltage 230V ~ 400V 3N~...
  • Page 12 KOSPEL S.A. ul. Olchowa 1 75-136 Koszalin tel. +48 94 346 38 08 info@kospel.pl www.kospel.pl...
