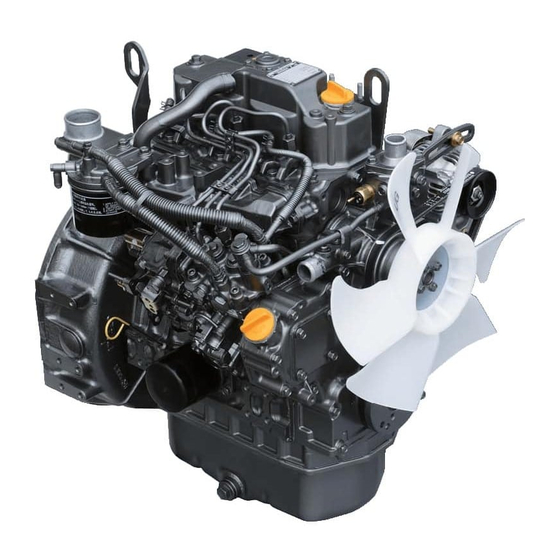

TNV series
ELECTRONIC CONTROL
MANUAL
YANMAR
FOR EPA TIER3
3TNV84T-Z
4TNV84T-Z
4TNV98T-Z
4TNV98-Z(R80-7A)
4TNV98-E(R55-7A,R55W-7A)
OPTION
3TNV82A-Z
3TNV88-Z, 3TNV88-E
3TNV88-Z, 4TNV88-E
REFERENCE ONLY
- MINI-EXCAVATOR(5~8TON, -7A SERIES)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Yanmar TNV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai Yanmar TNV Series

Summary of Contents for Hyundai Yanmar TNV Series

  • Page 1 TNV series ELECTRONIC CONTROL MANUAL YANMAR FOR EPA TIER3 3TNV84T-Z 4TNV84T-Z 4TNV98T-Z 4TNV98-Z(R80-7A) 4TNV98-E(R55-7A,R55W-7A) OPTION 3TNV82A-Z 3TNV88-Z, 3TNV88-E 3TNV88-Z, 4TNV88-E REFERENCE ONLY - MINI-EXCAVATOR(5~8TON, -7A SERIES)

  • Page 2: Table Of Contents

    CONTENTS TNV Application Manual Page SPECIFICATIONS Specifications ................... 1-3 Outline .................... 1-13 CONTROL SYSTEM Precautions on the use of electronic control components....2-3 Engine control unit..............2-3 Fuel injection pump ..............2-4 EGR valve .................. 2-5 Accelerator sensor..............2-5 Relay ..................2-6 Service tool.................
  • Page 3 CONTENTS Sub relay ..................2-71 Starter relay..................2-71 Starting aid relay ................2-73 For 400 W air heater (glow plug)..........2-73 For 500/800 W air heater ............2-74 For 1000 W air heater .............. 2-74 Coolant temperature sensors ............2-75 Appendix Standard harness TNV - Series service tool - Operation manual...

  • Page 4: Specifications

    Section 1 SPECIFICATIONS TNV Application Manual Page Specifications ................... 1-3 Outline .................... 1-13 TNV Application Manual...
  • Page 5 SPECIFICATIONS This Page Intentionally Left Blank TNV Application Manual...
  • Page 6 SPECIFICATIONS Atmospheric conditions and engine configuration affect the rated output of a TNV engine. TNV engines are tested using the methods established by the Society of Automotive Engineers (SAE) J1349 and International Organization for Standardization (ISO) 3046/1. These standards state that engine output (net power rating) should be determined under the following atmospheric conditions (called the standard conditions).
  • Page 7 SPECIFICATIONS 3TNV84T-Z (Electronic Control System) Engine model 3TNV84T-Z Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 3 - 84×90 Bore × Stroke mm × mm Displacement 1.496 Rated engine speed Cont.
  • Page 8 SPECIFICATIONS 3TNV88-B 3TNV88-Z (Option Electronic Control System) 3TNV88-B/3TNV88-Z Engine model Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 3 - 88×90 Bore × Stroke mm × mm 1.642 Displacement Rated engine 1500 1800 2200...
  • Page 9 SPECIFICATIONS 3TNV88-U 3TNV88-E (Option Electronic Control System) Engine model 3TNV88-U/3TNV88-E Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 3 - 88×90 Bore × Stroke mm × mm Displacement 1.642 Rated engine 2100 2200...
  • Page 10 SPECIFICATIONS 4TNV84T-Z Engine model 4TNV84T-Z Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 4 - 84×90 Bore × Stroke mm × mm Displacement 1.995 Rated engine speed Cont. rating Output (Gross) *1 Rated...
  • Page 11 SPECIFICATIONS 4TNV88-B 4TNV88-Z (Option Electronic Control System) Engine model 4TNV88-B/4TNV88-Z Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 4 - 88×90 Bore × Stroke mm × mm Displacement 2.189 Rated engine 1500 1800...
  • Page 12 SPECIFICATIONS 4TNV88-U 4TNV88-E (Option Electronic Control System) Engine model 4TNV88-U/4TNV88-E Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 4 - 88×90 Bore × Stroke mm × mm Displacement 2.189 Rated engine 2700 2800...
  • Page 13 SPECIFICATIONS 4TNV98-Z(R80-7A) Engine model 4TNV98-Z Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 4 - 98×110 Bore × Stroke mm × mm Displacement 3.318 Rated engine 1500 1800 2000 2100 2200 2300...
  • Page 14 SPECIFICATIONS 4TNV98-E(R55-7A,R55W-7A) Engine model 4TNV98-E Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 4 - 98×110 Bore × Stroke mm × mm Displacement 3.318 Rated engine 2100 2200 2300 2400 2500 speed...
  • Page 15 SPECIFICATIONS 4TNV98T-Z Engine model 4TNV98T-Z Engine classification Type — Vertical, 4-cycle water-cooled diesel engine Combustion — Direct injection (DI) system No. of cylinders - 4 - 98×110 Bore × Stroke mm × mm Displacement 3.318 Rated engine speed Cont. rating Output (Gross) *1 Rated...

  • Page 16: Outline

    SPECIFICATIONS OUTLINE DI Series 3TNV82A-B 3TNV82A-Z (Option Electronic Control System) （Unit：mm） 492.3 246.3 013916-00E TNV Application Manual 1-13...
  • Page 17 SPECIFICATIONS 3TNV88-U/3TNV88-B 3TNV88-E/3TNV88-Z (Option Electronic Control System) 514.4 258.7 255.7 013918-00J 3TNV84T-Z It is developing. 1-14 TNV Application Manual...
  • Page 18 SPECIFICATIONS 4TNV88-U/4TNV88-B 4TNV88-E/4TNV88-Z (Option Electronic Control System) 523.1 270.5 252.6 494.5 658.5 013919-00J 4TNV84T-Z It is developing. TNV Application Manual 1-15...
  • Page 19 SPECIFICATIONS 4TNV98-E/4TNV98-Z 539.7 281.6 258.1 013917-00J 4TNV98T-Z (For Tier3) It is developing. 1-16 TNV Application Manual...

  • Page 20: Control System

    Section 2 CONTROL SYSTEM TNV Application Manual Page Precautions on the use of electronic control components....2-3 Engine control unit..............2-3 Fuel injection pump ..............2-4 EGR valve .................. 2-5 Accelerator sensor..............2-5 Relay ..................2-6 Service tool................. 2-6 Control scheme ................2-7 System outline ................
  • Page 21 CONTROL SYSTEM This Page Intentionally Left Blank TNV Application Manual...

  • Page 22: Precautions On The Use Of Electronic Control Components

    CONTROL SYSTEM This chapter describes a Yanmar second-generation electronic governor (herein referred to as the "Gen2 Eco-governor") that conforms to the third EPA regulation by controlling Exhaust Gas Recirculation (EGR). The Gen2 Eco-governor is standard equipped on NV3 and supercharged engines. It is also available as an option for other engines.

  • Page 23: Fuel Injection Pump

    CONTROL SYSTEM Fuel injection pump Be sure to perform installation assessment as specified by Yanmar to ensure applicability of the fuel injection pump to the intended machine. The fuel injection pump should in particular be arranged so that the ambient temperature of the rack position sensor amplifier and the solenoid CSD does not exceed 80°C.

  • Page 24: Egr Valve

    CONTROL SYSTEM EGR valve Be sure to perform installation assessment as specified by Yanmar to ensure applicability of the EGR valve to the intended machine. Do not expose the EGR valve motor to an ambient temperature exceeding 80°C. Accelerator sensor Connect the accelerator sensor according the recommended connection diagram.

  • Page 25: Relay

    CONTROL SYSTEM Relay Be sure to perform installation assessment as specified by Yanmar to ensure applicability of the relay to the intended machine. Service tool Install the connector shown in Figure 2-3 at a convenient position on the intended machine in order to permit connection of the Yanmar genuine service tool.

  • Page 26: Control Scheme

    CONTROL SYSTEM CONTROL SCHEME System outline The electrical connection diagram of the Gen2 Eco-governor is shown in Figure 2-4 below. Battery Key SW Starter Alternator Panel E-ECU Engine stop 1 IGNSW SHUDNSW MAIN-RLY Pre-heat lamp APP-OP1 PREHT-LMP STARTSW Failure lamp RENRPM FAIL-LMP AIRHT-RLY...
  • Page 27 CONTROL SYSTEM The following describes each of the components shown in Figure 2-4. [Main relay] • Allows avoiding a long electrical wiring between the battery and E-ECU terminal VB. • Allows self-holding of the E-ECU power and logging of engine events including faults and running time when the key switch is off.
  • Page 28 CONTROL SYSTEM [Accelerator sensor] • The Eco-governor has no governor lever unlike mechanical governors and uses voltage signals from the accelerator sensor to set a target speed. • If the engine speed is changed stepwise to constant values as in the case of generator engines, a panel switch can be used to change the engine speed and the accelerator sensor is not needed.

  • Page 29: E-Ecu

    CONTROL SYSTEM E-ECU Outline Figure 2-5 E-ECU outline Use the specified grommets (119578-91351) and collars (129927-77680) for the E-ECU. Vibrations of the engine or machine could cause malfunction of the E-ECU. Figure 2-6 shown the connector pin numbers of the E-ECU. Note that the connection diagram in Figure 2-4 uses the pin numbers with a prefix of "E"...
  • Page 30 CONTROL SYSTEM Operating conditions Table 2-1 shows the operating conditions of the E-ECU. Table 2-1 Operating conditions of the E-ECU Item Requirement Rated voltage 12 Vdc Operating ambient temperature -30°C ~ 80°C Storage ambient temperature -40°C ~ 110°C Operating voltage range 10.0 –...
  • Page 31 CONTROL SYSTEM Current consumption The current consumption for engine control is shown in Table 2-2. A current of at least 4 or 5 A should always be stored in the battery for engine control. (We recommend a stored current of 5 A for frequent cold starts or 4A for otherwise).
  • Page 32 CONTROL SYSTEM Minimum operating voltage The minimum operating voltage of the E-ECU is 6.0 Vdc. Decreasing the E-ECU power supply voltage to less than the above causes the E-ECU to reset. When the battery voltage decreases to less than 6.0 V repeatedly at compression steps during cranking in cold start conditions, for example, the engine may not be able to start.
  • Page 33 CONTROL SYSTEM About battery reverse connection • Battery reverse connection will cause damage to the E-ECU and the rack position sensor. • To protect the E-ECU and the rack position sensor against inadvertent reverse connection, main and sub relays fitted with a reverse connection prevention diode (198461-52950) should be arranged as indicated on the standard connection diagrams (E3-29927-0030/0040).
  • Page 34 CONTROL SYSTEM I/O layout VB-1 VB-2 VB-1 VB (E48) AIRHT-RLY (E44) VB-1 MAIN-RLY (E34) RACK-PLY (E33) Sub-microcomputer Main-microcomputer Key switch Sensor (5V) IGNSW (E7) STARTSW (E8) AVCC (E38) APP-IP1 (E24) VB-1 SHUDNSW (E15) AVB (E43) BOOTSW (E29) GND-A (E28) APS (E35) TxD (E4) 通信回路...
  • Page 35 CONTROL SYSTEM I/O description Table 2-3 E-ECU I/O description Type Pin function/name Symbol Description Input Analog Accelerator position sensor APS Recommended load: Potentiometer (5 kΩ) Range: 0 – 5V Accuracy: 512±13 (@2.5V) Input resistance: 200 kΩ Rack position sensor Specified load: Rack position sensor Range: 0 –...
  • Page 36 CONTROL SYSTEM Table 2-3 E-ECU I/O description Type Pin function/name Symbol Description Output Contact Rack actuator RACKSOL Circuit: High side, PWM port Output: 6.0 A Max. (@12 V) Main relay MAIN-RLY Circuit: High side Output: 200 mA Max. (@12 V) Rack actuator relay RACK-RLY Circuit: High side...
  • Page 37 CONTROL SYSTEM Table 2-3 E-ECU I/O description Type Pin function/name Symbol Description Power Output Sensor 5V AVCC Voltage: Vcc±0.02 V (Vcc = 5.0±0.1V) supply Output: 25 mA Max. Sensor GND GND-A Sensor 12V Voltage: Internally coupled to VB Protected against dump surge Input Power supply 12V Connected to main relay...

  • Page 38: Electrical Parts

    CONTROL SYSTEM Electrical parts Table 2-4 List of electrical parts Degree of need Interchangeability Part name/number Functional description E-ECU Engine control Essential (Part No.: Model dependant) FO pump • Fuel injection rack actuation Essential (Part No.: Model dependant) • Rack position detection •...
  • Page 39 CONTROL SYSTEM Table 2-4 List of electrical parts Degree of need Interchangeability Part name/number Functional description Preheat lamp ON-glow indication Recommended (Part No.: Non) (Not required for other than ON- glow indication) Oil pressure switch • Oil pressure alarm/indication Essential (119761-39450) (actuated when a problem occurs) •...
  • Page 40 CONTROL SYSTEM The Eco-governor does away with the need for the parts shown in Table 2-5 that are used for mechanical governors: Table 2-5 List of electrical parts not required for the Eco-governor Part name Part number Remarks Safety relay 119802-77200 etc.
  • Page 41 CONTROL SYSTEM Table 2-6 Electrical requirements of the commercially available electrical parts used for the Eco-governor Part name Electrical requirements Air heater relay Contact Normally open (a-contact) Rated voltage 12 Vdc Rated load current 400 W: 12 Vdc/40 A Min., 4 min. (@ 30°C) 500 W: 12 Vdc/50 A Min., 4 min.
  • Page 42 CONTROL SYSTEM Table 2-7 Requirements of user-selected electrical parts Part name E-ECU pin No. Requirements Stop switch Contact Normally closed (b-contact) Max. current 12 Vdc/20 mA or higher Min. current 12 Vdc/10 mA or lower Load factor monitor Resistive load Pulled up to 12 Vdc Max.

  • Page 43: Harness

    CONTROL SYSTEM HARNESS See the standard connection diagram (E3-29927-0040) for harness arrangement. Yanmar has verified the engine performance with the standard harness. If you want to use a harness other than the standard harness, consult the standard connection diagram for harness design. Yanmar has made available the standard harness (12997-91020), but cannot supply customized harnesses to individual customers.

  • Page 44: Harness Clamping

    CONTROL SYSTEM [Key switch] 1. Select a key switch whose B-to-BR circuit (E-ECU power supply circuit) is not open between the ON and START positions. An instantaneous power interruption of 1 ms or longer may reset the E-ECU and hinder the engine from starting. [General] 1.

  • Page 45: Can Bus Termination

    CONTROL SYSTEM CAN bus termination As the E-ECU contains a 120Ω CAN terminator resistor, jumpering RECAN (E30) to CANL (E39) as scheme (b) in Figure 2-10 enables the CAN signal to be terminated. CANL CANL 120Ω 120Ω RECAN RECAN CANH CANH (a) Without terminator (b) With terminator (standard)

  • Page 46: Control Functions

    CONTROL SYSTEM CONTROL FUNCTIONS Control software The functions of the E-ECU software can be divided into the following categories: 1. Driver: Interface between hardware and software 2. Diagnostics: Troubleshooting and event logging of the engine and control hardware 3. Communication: Data exchange among the checker and other E-ECU communication features 4.
  • Page 47 CONTROL SYSTEM The control program and the engine model-specific control map are maintained as prime constituents by engine models. The individual data is created per each injection pump and engine and maintained as CS data. Figure 2-12 illustrates constituents of the E-ECU data. The control program is common to all engine models and cannot be customized per customers.

  • Page 48: General

    CONTROL SYSTEM General Speed sensor input The Eco-governor detects the engine speed with 12 pulsers attached to the camshaft. See Figure 2-13. Assuming that the frequency of pulses provided by the pulsers is fp [Hz], the engine speed N rpm [min ] is given by Nrpm[min...
  • Page 49 CONTROL SYSTEM Rack position sensor input The Eco-governor controls the fuel injection quantity by adjusting the rack position of the fuel injection pump. The rack position is converted into voltage by the rack position sensor, and the voltage signal is applied to E- ECU terminal RPS and sent to an AD converter.
  • Page 50 CONTROL SYSTEM A high-accuracy coolant temperature sensor will also be able to connect to terminal TFO (E16). The measurement error of the high-temperature coolant temperature sensor will be approximately ±2°C at 0 to 110°C. The high-accuracy coolant temperature sensor can double as a coolant temperature switch (121250-44901) whose measurement accuracy is required to be 110±3°C.
  • Page 51 CONTROL SYSTEM Contact input There are two schemes for contact input of the E-ECU: High-side input and Low-side input. See Figure 2-17. The contact input of the E-ECU has been designed with the same sink current and source current of 1.0 mA typ.
  • Page 52 CONTROL SYSTEM Figure 2-19 illustrates the voltage levels at the input terminal for the low-side contact input. When the switch turns on, the input terminal goes low for the switch with NO contact and goes high for the switch with NC contact. 1.2k 1.2k Contact input...
  • Page 53 CONTROL SYSTEM Rack actuator output The rack actuator output is a high-side output. See Figure 2-21. The E-ECU adjust the magnitude of current flowing through the rack actuator solenoid by shortening or lengthening the ON-duration of the output transistor. The rack position of the fuel injection pump varies depending on the magnitude of current flowing through the rack actuator.
  • Page 54 CONTROL SYSTEM Control map As already mentioned in "Control software", the E-ECU software can be divided into the control program, engine model-specific control map and individual data. This section describes the engine model-specific control map. Map data can be categorized into the following types: 1.

  • Page 55: Engine Control - General

    CONTROL SYSTEM Engine control - General Self-holding of the E-ECU power The E-ECU saves engine logs including faults and running hours in the internal EEPROM. And it has a power self-holding feature that allows the power supply to be held until the engine logs are completely saved in EEPROM.
  • Page 56 CONTROL SYSTEM Torque curve and engine regulation Standard engine torque curves are outlined in Figure 2-25. Details of the curves varies depending on the engine models. For the Eco-governor, engine regulations are available in the following variations: (a) Isochroous The engine speed is constant, regardless of the load (regulation 0%). (b) Virtual droop (torque curve of base engine) Approx.
  • Page 57 CONTROL SYSTEM Switching between "isochroous" and "virtual droop" can be done with an external switch or through CAN communication, while the engine is running. Selection of either one as default is allowed on customer's request. Switching between "isochroous" and "virtual droop" can be done even while the engine is running. "Reverse droop" can also be enabled or disabled with an external switch or through CAN communication while the engine is running.
  • Page 58 CONTROL SYSTEM Speed control The target engine speed is defined by input signals from the accelerator sensor or through CAN communication. Figure 2-28 shows the flow of defining the target engine speed. Elements and optional settings in the flow will be described later. The accelerator input selection feature allows certain accelerator sensors to be selected as input source among others depending on the setting and status of accelerator sensors.
  • Page 59 CONTROL SYSTEM Figure 2-29 shows the engine speed control block diagram. [Speed control] The deviation of the actual engine speed (Nrpm) from the target engine speed (Nset) is used to determine the target rack position (Rset) with PID control. The target rack position is the basis for providing torque limitation or rack motion delay adjustment for transition control (described later).
  • Page 60 CONTROL SYSTEM EGR control The Eco-governor uses an electronic-controlled EGR valve to reduce the emission of NOx from 37 kW or more engines. The EGR valve is driven by a stepping motor. The opening (0 - 54 steps) of the EGR valve is adjusted depending on the engine speed and load factor so as to control recirculation of exhaust gas.
  • Page 61 CONTROL SYSTEM Calculation of load factor The load factor of the engine is determined as a percentage from the rack position at idling (Ridl), maximum rack position (Rmax), minimum rack position (Rmin) and actual rack position relative to Rmin (Ract). See Figure 2-32.

  • Page 62: Application Interface Outline

    CONTROL SYSTEM Application interface outline Accelerator input selection Accelerator sensors are available in three types: standard (analog voltage), backup (analog voltage) and CAN communication (communication command) types. See Figure 2-16. Using accelerator sensor setting flags allows combined use of these sensors. In standard mapping (1), the main accelerator sensor is solely used.
  • Page 63 CONTROL SYSTEM Table 2-9 Analog input assignment Assignment flag Sensor type APS: E35 REAN: E37 Foot pedal (SAE J1843 configuration) Analog + APP-IP2: NO Foot pedal (SAE J1843 configuration) Analog + APP-IP7: NC Atmospheric pressure sensor To connect the accelerator position sensor input (APS: E35) and the backup analog sensor input (REAN: E7) to the foot pedal (flag setting: 2 - 4), APP-IP2: E14 and APP-IP7: E13 must be configured to enable reception of signals from the foot pedal switch.
  • Page 64 CONTROL SYSTEM Figure 2-34 shows the foot pedal failure detection scheme. If the input voltage from the foot pedal is out of the range of 0.2 V to 4.6 V, the E-ECU detects a sensor failure. If APP-IP2: NO goes high or APP-IP7: NC goes low while the input voltage is 1.1 V or higher, the E-ECU detects a sensor failure (depending on the status of the active switch when the flag is set to 3 or 4).
  • Page 65 CONTROL SYSTEM Starting aid Using an optional air heater relay allows the starting aid (air heater or glow plug) to be controlled as follows. The air heater relay permits the E-ECU to check for disconnection or short-circuit. 1. ON-glow control (standard feature) When the key switch is moved to the "ON"...
  • Page 66 CONTROL SYSTEM Starter motor start prevention When the key switch is turned on, the Eco-governor performs rack self-diagnostics before starting the engine in order to ensure safety. The starter motor must therefore be prevented from starting until rack self- diagnostics is completed. Starter motor staring prevention can be implemented by connecting a starter relay to the E-ECU.
  • Page 67 CONTROL SYSTEM START position ON position Ex: Safety pedal OFF position Self-diagnostics Starter Ena START manual SW Relay Key SW Battery E45, E47 Starting motor Enable Disable Figure 2-37 External switch and starter disable/enable circuit Utilizing features 1 and 2 above permits establishing an auto start/stop system that can be operated through an external sequence.
  • Page 68 CONTROL SYSTEM Speed selection The Eco-governor has a speed selection feature that allows the engine speed to be changed with external switch inputs. The speed selection feature includes three modes: (1) Constant speed mode where the engine speed is kept constant, (2) Constant deceleration mode where the engine speed is reduced from a specified value with a constant deceleration, and (3) Auto deceleration mode where the engine speed is set to a specified value after a specified time has elapsed.
  • Page 69 CONTROL SYSTEM (1) Constant speed mode Figure 2-39 shows the connection diagram for constant speed mode. Batt.12V Indicator lamp APP-OP2(E2) APP-IP6(E6) APP-IP4(E17) APP-IP3(E9) Speed1 Speed2 Speed selection enable E45,E47 Figure 2-39 Connection diagram for constant speed mode Figure 2-40 shows the operation timing for constant speed mode. The speed selection enable switch (E6) is available in two types: toggle and momentary.
  • Page 70 CONTROL SYSTEM (2) Constant deceleration mode Figure 2-41 shows the connection diagram for constant deceleration mode. Batt.12V Indicator lamp APP-OP2(E2) APP-IP6(E6) APP-IP4(E17) APP-IP3(E9) Speed1 Speed2 Speed selection enable E45,E47 Figure 2-41 Connection diagram for constant deceleration mode Figure 2-42 shows the operation timing for constant deceleration mode. The speed selection enable switch (E6) is available in two types: toggle and momentary.
  • Page 71 CONTROL SYSTEM (3) Auto deceleration mode Figure 2-43 shows the connection diagram for auto deceleration mode. Batt.12V Auto deceleration enable switch (On: enabled) APP-IP6(E6) APP-IP4(E17) APP-IP3(E9) Cancel Deceleration Speed1 switch switch enable relay Indicator lamp ON: Low idling OFF: 1800 min E45,E47 Figure 2-43 Connection diagram for auto deceleration mode Figure 2-44 shows the operation timing for auto deceleration mode.
  • Page 72 CONTROL SYSTEM Engine cutoff When the key switch is turned off and the rack actuator is shut off, the engine is cut off. (No stop solenoid is required). The engine can also be cut off by turning on terminal SHUDNSW to which an engine stop switch has been connected.
  • Page 73 CONTROL SYSTEM Idling speed up The feature allows the low idling speed to increase gradually until the coolant reaches a specified temperature, helping the engine warm up quickly. See the figure below. See Figure 2-46. By default, the "idling speed up" feature is disabled. automatically shorten warm up usual low idle speed...
  • Page 74 CONTROL SYSTEM Accelerator filter The accelerator filter regulates the trade-off between acceleration/deceleration time and overshoot/ undershoot during acceleration or deceleration. This feature is factory set appropriately, but a higher priority may have to be given to either the reduction of acceleration/deceleration time or the suppression of overshoot/undershoot depending on the engine applications.
  • Page 75 CONTROL SYSTEM Highland compensation (pending) This feature allows the injection quantity to be controlled so that the emission of black smoke due to a low oxygen concentration is minimized in high-attitude places. By default, the highland compensation feature (pending) will be disabled. Engine failure detection The E-ECU accepts the connection of engine failure detection sensors as shown in Figure 2-51.
  • Page 76 CONTROL SYSTEM Table 2-12 Diagnostic list Action/ Number Failure detection Item Operation when failure occurs condition for Category conditions recovery flashes Coolant tempera- Sensor voltage is Engine runs with a coolant temperature of Correct failure. Always ture sensor failure 4.8 V or more, or 30°C.
  • Page 77 CONTROL SYSTEM Table 2-12 Diagnostic list Action/ Number Failure detection Item Operation when failure occurs condition for Category conditions recovery flashes Backup speed Engine start signal Engine continues to run while main speed Turn key off. Default to sensor failure (E8) is on, but the sensor is used.
  • Page 78 CONTROL SYSTEM Table 2-12 Diagnostic list Action/ Number Failure detection Item Operation when failure occurs condition for Category conditions recovery flashes 19 Sensor 5V failure Monitoring voltage Engine runs normally. Turn key off. Always is approx. 0 V. enable Monitoring voltage is 4.5 V or less.
  • Page 79 CONTROL SYSTEM Flashing patterns of the failure lamp are shown in Figure 2-52. When accelerator sensor failure (flashing 5 time) and EGR valve failure (flashing 1 - 3 times) occur, the failure lamp flashes as shown in Figure 2-52. When two or more failures have occurred simultaneously, the failure lamp indicates all the failures in order of increasing number of flashes cyclically.
  • Page 80 CONTROL SYSTEM CAN communication The E-ECU is equipped with a CAN communication port that can be used to communicate with the service tool. The physical layer for CAN communication conforms to ISO 11898 Ver2.0B and uses 29-bit CAN arbitration ID. Baud rates of 250 kbps and 500 kbps (default) are available. The E-ECU supports communication protocols conforming to ISO 15765 and KWP 2000 for service toll and ASE J1939 for inter-E-ECU communication.
  • Page 81 CONTROL SYSTEM Terminal assignment Each of the E-ECU terminals listed in Table 2-14 is assigned multiple functions. The active function for each terminal can be changed by mapping. By default, function 1 is enabled. Contact Yanmar for setting change. Table 2-14 E-ECU terminals assigned multiple functions Terminal Terminal Function 1...
  • Page 82 CONTROL SYSTEM Table 2-16 lists E-ECU terminals whose functions must be mapped depending on whether or not the specific devices are connected to the terminals. Table 2-16 E-ECU terminals to be assigned a function Terminal Terminal Device connected Setting name Accelerator sensor 0: Non 1: Analog sensor (default)
  • Page 83 CONTROL SYSTEM Operational limitations in failure situations Operational limitations are applied to the engine when alarms or failures shown in Table 2-19 occur. These limitations can be changed depending on properties of the machine to which the engine is installed. Table 2-18 shows mapping flags to be used for limiting the engine operation.
  • Page 84 CONTROL SYSTEM Alarm/failure detection conditions depend on the setting of the flags shown in Table 2-20. Table 2-20 Alarm/failure detection condition setting flags Alarm/failure Detection condition setting flag Coolant temperature high alarm Coolant temperature alarm setting flag Accelerator sensor failure APS terminal function assignment flag Backup speed sensor activation RENRPM terminal function assignment flag...

  • Page 85: Fuel Injection Pump

    CONTROL SYSTEM FUEL INJECTION PUMP [Rack actuator] [Solenoid valve CSD] Mating connector: Yazaki Mating connector: Yazaki 7283-8850-30 7323-7414-40 RPS：E36 AVB：E43 Sol-L：E42 GND-A：E28 Sol-H：to VB [Speed sensor] Mating connector: Sumitomo 6189-0522 (housing), 6918-1260 (retainer) Terminal polarity: Non Figure 2-55 Connectors applicable to the fuel injection pump 2-66 TNV Application Manual...

  • Page 86: Egr Valve

    CONTROL SYSTEM EGR VALVE Mating connector: Sumitomo 6195-0021 or equivalent Drain hole ( φ 7) Connector pin arrangement Mating connector: Sumitomo 6195-0021 or equivalent Figure 2-56 EGR valve outline TNV Application Manual 2-67...

  • Page 87: Accelerator Sensor

    CONTROL SYSTEM ACCELERATOR SENSOR The Eco-governor has no governor lever unlike a mechanical governor and requires an accelerator sensor to set the engine speed. Use a Yanmar standard accelerator sensor (see Figure 2-57) or equivalent. For general requirements of the accelerator sensor, see Figure 2-2, Table 2-6, "Accelerator input" and "Accelerator input selection".
  • Page 88 CONTROL SYSTEM Installation requirements of the Yanmar standard accelerator sensor: 1. To protect against water and corrosion • Ensure no water is trapped inside the sensor axis or connector of the sensor. • Install the sensor in such an area that is not subject to steam or high-pressure water for cleaning. •...

  • Page 89: Main Relay

    CONTROL SYSTEM MAIN RELAY The main relay provides power to the E-ECU, rack actuator, EGR valve etc. It contains a diode that prevents contact operation in case of reverse connection of the excitation coil. See Figure 2-4 for electrical connection of the main relay.

  • Page 90: Sub Relay

    CONTROL SYSTEM SUB RELAY The sub relay provides power to the failure lamp on the panel or external switches. The standard sub relay is the same as the main relay. It contains a diode that prevents contact operation in case of reverse connection of the excitation coil.
  • Page 91 CONTROL SYSTEM Part Number 129927-77920 Coil rated voltage 12 Vdc Rated excitation current 117 mA Contact type a-contact Contact rated voltage 12 Vdc Contact rated current 83 A for 200 seconds Section A-A Detail of B Section C-C Figure 2-60 Bracket for ISO relay (129927-77910) 2-72 TNV Application Manual...

  • Page 92: Starting Aid Relay

    CONTROL SYSTEM STARTING AID RELAY The starting aid relay controls power to the air heater or glow plug. See Figure 2-4 for electrical connection of the starting aid relay. Three types of starting aid relays are available depending on the load capacity. For 400 W air heater (glow plug) Plane A Fixed with epoxy resin...

  • Page 93: For 500/800 W Air Heater

    CONTROL SYSTEM For 500/800 W air heater The relay for 500/800 W air heater is the same as the starter relay (129927-77920). For 1000 W air heater Housing (black) [ISO mini-relay] Mating connector: Yazaki 7223-6146-30 or equivalent Circuit diagram Base (black) Figure 2-62 ISO relay (90 A) Part Number 129927-77900...

  • Page 94: Coolant Temperature Sensors

    CONTROL SYSTEM COOLANT TEMPERATURE SENSORS The coolant temperature sensor comprises a thermister and provides control to the Eco-governor. Gold-clad Denso mark, part number, serial number Mating connector: Tyco 1-178392-4 (housing), 171662-5 (receptacle contact), 172888-2 (rubber plug) Figure 2-63 Coolant temperature sensor (119254-44910) TNV Application Manual 2-75...
  • Page 95 CONTROL SYSTEM 2-76 TNV Application Manual...

  • Page 96: Appendix Standard Harness

    Appendix Standard harness (1)
  • Page 97 Appendix Standard harness (2)
  • Page 98 TNV – Series service tool Operation Manual...
  • Page 99 Contents Page 1. Overview ………………………………………………………… 1 2. System Requirements ………………………………………… 1 3. Installing the Software ………………………………………… 2 4. Description of the System …………………………………… 4 4.1 Description of the Program …………………………………………………… 4 4.2 Authority and Password Management ………………………………………… 4 5. Starting/Quitting the Software ……………………………… 5 5.1 Starting the Software ……………………………………………………………...
  • Page 100 7.5 Data Logging 【Mechanic Function】 ……………………………………… 31 7.5.1 Data Monitor …………………………………………………………………………31 7.5.2 Stored Data …………………………………………………………………………37 7.5.3 Trend Graph 【Mechanic Function】 ……………………………………………38 7.6 Historical Data …………………………………………………………………… 39 7.6.1 Lifetime Data 【Universal Function】 ……………………………………………39 7.6.2 RPM-Load Profile 【Mechanic Function】 ………………………………………40 7.7 ECU Identification 【Mechanic Function】 ………………………………… 41 7.7.1 Analog Channels ……………………………………………………………………41 7.7.2 Digital Channels 【Mechanic Function】...

  • Page 101: Overview

    1. Overview, 2. System Requirements ―― 1. Overview The YANMAR Engine Diagnostic Service Tool（YEDST）for the TNV series is software to support troubleshooting and installation/maintenance services for electronic control engines. It runs on personal computers（PC/AT）running Windows operating system. 2. System Requirements The following are required to operate the YANMAR Engine Diagnostic Service Tool（YEDST）...

  • Page 102: Installing The Software

    ―― 3. Installing the Software 3. Installing the Software 1）Log in as an administrator. 2）Run the Setup.exe file on the CD-ROM. The screen as shown below appears. Press the button. Next> The screen as shown below appears. Enter your name and organization. Enter the serial number of your product, and press the button.
  • Page 103 3. Installing the Software ―― Choose a folder to install the program, and press the button. The confirmation screen appears. Next> Press the button. Installation starts. Next> When the installation is completed, the screen as shown below appears. Click the button.

  • Page 104: Description Of The System

    ―― 4. Description of the System 4. Description of the System 4.1 Description of the Program 1）Diagnostic software This is the main software to support troubleshooting and installation/maintenance services by connecting the ECU and your PC（Figure 4-1） ．At startup, you can change ECU's ID number and communication speed settings.

  • Page 105: Starting/Quitting The Software

    5. Starting/Quitting the Software ―― 5. Starting/Quitting the Software 5.1 Starting the Software 5.1.1 Connecting the System Components 　① Connect the USB cable between the USB port of the PC and the USB port of the interface box. 　② Connect the diagnostic cable to CN1（D-SUB 9P male connector）of the interface box. 　③...
  • Page 106 ―― 5. Starting/Quitting the Software Choose the ¥Setup¥Driver folder under the folder where you installed the application in Chapter 3, and click Next> For Windows XP, the screen as shown below appears. Click to continue the installation. Continue Anyway The location where the driver file exists is asked. Choose ¥Setup¥Driver under the folder where you installed the application, and click Now, the driver has been installed.

  • Page 107: Startup Screen

    5. Starting/Quitting the Software ―― 5.1.4 Startup Screen 1）Registering a user ID and password（first session） Double click the icon created during the installation（Engine Diagnostic Tool） ．Only in your first session, the screen as shown in Figure 5-1 appears. Enter the following items. Be sure to memorize the administrator-level password.
  • Page 108 ―― 5. Starting/Quitting the Software 2）Entering the user ID and password The entry screen as shown in Figure 5-2 appears after the registration in the first session and in second and later sessions. ① ：Enter a registered ID. User ID ②...
  • Page 109 5. Starting/Quitting the Software ―― 3）System settings The following screen lets you set the conditions of communication with the ECU, including ECU's hardware address number, communication speed, and other conditions. Note that this function is included also in the tool function of the diagnostic software. ①...

  • Page 110: Quitting The Software

    ―― 5. Starting/Quitting the Software 5.2 Quitting the Software You can quit the program in the same way as other Windows applications. Before you turn off the system, you need to quit the PC program. ① or［File（F） ］-［Exit］ ：The confirmation menu to quit the program appears. ②...

  • Page 111: Screen Components

    6. Screen Components ―― 6. Screen Components 6.1 Basic screen 1）Tool bar ① Standard tool bar： The standard tool bar provides basic operations of ② to ④ . Shortcut keys,［Alt］key +［Parenthesized character］ ， are available. ② Operation tool bar： This tool bar provides operations available on each screen. Unavailable operations are displayed dim.

  • Page 112: Standard Tool Bar

    ―― 6. Screen Components 6.1.1 Standard Tool Bar This tool bar lets you select a function, screen, operation, and tool by clicking the corresponding button. Alternatively, you can select an item by pressing the parenthesized character after the item and the［Alt］key at the same time（shortcut key）with the menu displayed.

  • Page 113: Operation Tool Bar

    6. Screen Components ―― 6.1.2 Operation Tool Bar This tool bar lets you select an operation available on each screen by clicking the corresponding button. Unavailable operations are displayed dim. …Screen Print …Screen BMP Save …File Save …Refresh …Cont …Start …Stop …Option Set …Trigger Set...
  • Page 114 ―― 6. Screen Components Table 6-1 Operation Tools Available on Each Menu Control（Toll Bar Button） Menu Submenu System Information SI ○ ○ ○ ○ ○ ○ Fault Code Active DTC ○ ○ ○ ○ ○ Logged DTC ○ ○ ○ ○ ○...

  • Page 115: Function Select Tool Bar

    6. Screen Components ―― 6.1.3 Function Select Tool Bar This tool bar lets you select a service tool function by clicking the corresponding button. It corresponds to View on the standard tool bar. Image Name Abbreviation Description System Information Trouble data Fault Code Trouble data Freeze Frame Data...

  • Page 116: Main Menu

    ―― 7. Main Menu 7. Main Menu 7.1 System Information 【Universal Function】 7.1.1 System Information The key system information stored in the ECU is displayed. 1）Operation tool bar ① ：Prints a hardcopy of the screen. ② ：Saves the screen in BMP format. ③...

  • Page 117: Fault Code

    7. Main Menu ―― 7.2 Fault Code This function is used to display current and past faults detected by the ECU. By clicking on the Screen Select tool bar, you can select Active Diagnostic Trouble Code or Logged Diagnostic Trouble Code. 7.2.1 Active Diagnostic Trouble Code 【Universal Function】...

  • Page 118: Logged Diagnostic Trouble Code 【Mechanic Function

    ―― 7. Main Menu 7.2.2 Logged Diagnostic Trouble Code 【Mechanic Function】 This screen lists logged troubles stored in the nonvolatile memory of the ECU. For each trouble code, its description, the number of occurrences, and the first and last occurrence clock times are displayed. You can delete logged troubles item by item or all at once.

  • Page 119: Freeze Frame Data 【Mechanic Function

    7. Main Menu ―― 7.3 Freeze Frame Data 【Mechanic Function】 This function is used to display related data before and after the detection of recent serious troubles. By clicking the Screen Select tool bar, you can view the data list and trend graph. 7.3.1 Stored Data 1）Additional Information view Stored FFD items are listed.
  • Page 120 ―― 7. Main Menu 5）Data Select sub-window You can select data to be displayed on the Main view. ① "DATA" ：Displays the list of data items that can be displayed. ② ：Selects/deselects a data item to be displayed. ③ ：Restores the default settings. Default ④...

  • Page 121: Trend Graph

    7. Main Menu ―― 7.3.2 Trend Graph 1）Additional Information view（Cursor Value） The data item names selected in graph setting operation and the values at the cursor position are displayed. <Graph 1>：Cursor values of Graph Top. <Graph 2>：Cursor values of Graph Bottom. ①...

  • Page 122: Diagnostic Test

    ―― 7. Main Menu 7.4 Diagnostic Test This function lets you check input/output devices individually. To select an test item, click one of the tabs for input/output tests and active control on the Screen Select tool bar. Some of the functions requiring output are available only when the clutch is in neutral and the engine is in low idle or stopped.

  • Page 123: Digital Input Test 【Universal Function

    7. Main Menu ―― 7.4.2 Digital Input Test 【Universal Function】 This function is used to check the operation of the input devices after troubleshooting and repair. You can check the ON/OFF status of the contact inputs. When the screen is selected, the screen display is automatically refreshed at intervals of 2 seconds by default.

  • Page 124: Digital Output Test 【Mechanic Function

    ―― 7. Main Menu 7.4.3 Digital Output Test 【Mechanic Function】 This function is used to check the operation of output devices after troubleshooting and repair. You can turn ON/OFF contacts forcibly only when the engine is stopped. When the screen is selected, the screen display is automatically refreshed at intervals of 2 seconds by default.
  • Page 125 7. Main Menu ―― 3）Screen Shift sub-window This sub-window appears when you make any changes on the screen in manual control mode. ⑪ ：Returns to auto control mode. ⑫ ：Keeps values in manual mode. ① ② ③ ④ ⑦ ⑤ ⑥...

  • Page 126: Active Control 【Mechanic Function

    ―― 7. Main Menu 7.4.4 Active Control 【Mechanic Function】 The functions in this screen are used to check feedback control（rack position control, speed governing control, etc）and auto calibration（idle rack position, etc）and measurement. They are categorized into 2 groups：functions available only when the engine is stopped, and functions available only when the clutch is in neutral and the engine is running.
  • Page 127 7. Main Menu ―― 3）Data Set sub-window ① ：Shows the name of an item for which active control is enabled. Data Name ② ：Displays the current measured value of the feedback item. Measured ③ ：Shows the maximum value that can be set for the desired value. ④...

  • Page 128: Active Control Graph

    ―― 7. Main Menu 7.4.5 Active Control Graph The graph is displayed only when you select "It receives［graph display］" of Reception Mode of Active Control. 1）Additional Information view（cursor value） The data item name selected in graph setting operation and the value at the cursor position are displayed. <Graph 1>：Cursor value of Graph Top.

  • Page 129: Hysteresis Measure（Graph Display

    7. Main Menu ―― 7.4.6 Hysteresis Measure（Graph Display） The following functions are enabled by acquiring data from the ECU when you execute AUTO HYSTERESIS MEASUREMENT of Active Control. 1）Additional Information view（data display） ① ： Cursor Data 　　Displays data at the cursor point.（only on the trend graph screen） ②...
  • Page 130 ―― 7. Main Menu ⑥ ⑦ ⑧ ⑨ ⑤ ④ ③ ② ① Figure 7-13 ［Diagnostic Test］-［Hysteresis Measure］-［X-Y］Screen < Trend graph >： The graph is displayed with the time（0.1 second/point）on the X axis and with the alternative value of the rack position（digital encode value of voltage）and the alternative value of the rack actuator electric current（pulse duty value）on the Y axis.

  • Page 131: Data Logging 【Mechanic Function

    7. Main Menu ―― 7.5 Data Logging 【Mechanic Function】 This tool lets you perform troubleshooting and analyze running status while operating the engine. You can select a submenu from：Data Monitor that displays logged data in real time, Stored Data that displays stored data, and Trend Graph that shows data in graphic format.
  • Page 132 ―― 7. Main Menu ① ② ⑨ ③ ④ ⑥ ⑦ ⑧ ⑤ ⑩ ⑪ ⑫ Figure 7-15 ［Data Logging］-［Data Monitor］Screen...
  • Page 133 7. Main Menu ―― 3）Additional Information view （i）Trigger Setting Displays trigger setting information. ① Manual Trigger ：Lets you generate a trigger manually. ② ：Displays the trigger setting status. Trigger ③ ：Displays the acronym of data for which a trigger is set. Data ④...
  • Page 134 ―― 7. Main Menu 4） ［Data Set］sub-window This function lets you set data items to be displayed and the display order freely. To use this function, click button on the Operation tool bar. You can select and register 10 points of data freely from data pieces categorized and pre-registered in addition to FFD.
  • Page 135 7. Main Menu ―― 6）Trigger Setting sub-window Clicking the button on the Operation tool bar enables the trigger setting operation. ① ：Sets whether to enable the trigger. Trigger （ON） ② ：Selects data to which the trigger is applied. Data Select ③...
  • Page 136 ―― 7. Main Menu 7）Sampling Setting sub-window Clicking the button on the Operation tool bar enables the sampling frequency setting operation. ① ：Select a sampling frequency by checkmarking one of the buttons. Select ② ： These buttons are available when you select the radio button that lets you enter any value. You can increase/decrease the sampling frequency in steps of 1, 10, or 100.

  • Page 137: Stored Data

    7. Main Menu ―― 7.5.2 Stored Data You can display values of received data, and check and save them. You cannot select this item during receiving data. Note that, if you stop the operation without a trigger, no item is displayed because no data is stored.

  • Page 138: Trend Graph 【Mechanic Function

    ―― 7. Main Menu 7.5.3 Trend Graph 【Mechanic Function】 This function is used to display data during reception and stored data in graphic format. By grouping data items in advance, you can superimpose related items in graphic format. Digital information can be displayed as 1/0 graph by specifying the data bit position.

  • Page 139: Historical Data

    7. Main Menu ―― 7.6 Historical Data This function is used to display the operation/maintenance information of the engine stored in the ECU. It consists of the Lifetime Data and RPM-Load Profile submenus. 7.6.1 Lifetime Data 【Universal Function】 You can check total cumulative operation time and operation time in delayed status, and clear trip time. 1）Operation tool bar ①...

  • Page 140: Rpm-Load Profile 【Mechanic Function

    ―― 7. Main Menu 7.6.2 RPM-Load Profile 【Mechanic Function】 This function displays the histogram of the load percentage frequencies for rpm ranges to express the running status visually. You cannot delete the lifetime data. 1）Operation tool bar ① ：Prints a hardcopy of the screen. ②...

  • Page 141: Ecu Identification 【Mechanic Function

    7. Main Menu ―― 7.7 ECU Identification 【Mechanic Function】 This function is used to display engine system/ECU's ID information, and ECU I/O channel assignment information. A level-2 password is required to display the data. 7.7.1 Analog Channels This screen displays the analog signal information including the channel assignment, unit, scaling, etc. 1）Operation tool bar ①...

  • Page 142: Digital Channels 【Mechanic Function

    ―― 7. Main Menu 7.7.2 Digital Channels 【Mechanic Function】 This screen displays the information of the contact input/output signals including the channel assignment and logic. For outputs, it also displays whether active output is allowed. 1）Operation tool bar ① ：Prints a hardcopy of the screen. ②...

  • Page 143: Ecu Id Information

    7. Main Menu ―― 7.7.3 ECU ID Information This screen displays engine system/ECU's ID information. 1）Operation tool bar ① ：Prints a hardcopy of the screen. ② ：Saves the screen in BMP format. 2）Main view ③ ：Data manage number stored in the ECU. ECUID ④...

  • Page 144: System Installation

    ―― 7. Main Menu 7.8 System Installation This function is required for the initial setting after installing the engine and repair, and installation and adjustment when replacing the ECU and so on. It consists of the Configuration, Calibration, and Tuning submenus.
  • Page 145 7. Main Menu ―― ① ② ③ ⑯ ⑰ ④ ⑤ ⑬ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑭ ⑮ Figure 7-27 ［System Installation］-［Configuration］Screen...
  • Page 146 ―― 7. Main Menu 7.8.1.1 ECU Exchange 〇 Information that must be copied when replacing the ECU. 1）Correction information ： ① Pump injection quantity correction value, ② Engine output correction value（） 2）Configuration value 3）Calibration value 4）Tuning value 6）Serial number：① Engine serial number, ② Pump serial number 7）...
  • Page 147 7. Main Menu ―― 7.8.1.1.2 Writing Data Received from the PDM If the ECU is broken and data cannot be read, you can receive data from the PDM and write the correction values to the ECU using the following procedure. First, you need to receive the pump correction data file （pump_serial.excp）and the engine correction data file（engine_serial.exce）for the model name and serial number of your engine in advance.
  • Page 148 ―― 7. Main Menu 7.8.1.1.3 Manual Entry If the ECU is broken, data cannot be read, and you cannot receive data from the PDM, you can manually write the correction values to the ECU. In this case, first, you need to obtain the pump correction data and the engine correction data（eg, paper document）for the model name and serial number of your engine in advance from the PDM.
  • Page 149 7. Main Menu ―― 7.8.1.1.4 Creating a Report When you write the injection quantity correction value to the ECU, a menu to create a report opens automatically. When you perform maintenance, you can save the current ECU settings to a report file manually. <Procedure>...
  • Page 150 ―― 7. Main Menu 7.8.1.2 Replacing the Pump 〇 Information that must be written when replacing the pump. 1）Correction information：① Pump injection quantity correction value 2）Serial number：① Pump serial number 3） Additional information：① Calibration date（data inside PC） ，② Calibration device number（license key） 7.8.1.2.1 Writing Data Received from the PDM When you replace the pump, you need to receive data from the PDM and write the correction values to the ECU using the following procedure.

  • Page 151: Calibration 【Mechanic Function

    7. Main Menu ―― 7.8.2 Calibration 【Mechanic Function】 This screen provides the function to calibration（correct）the sensor. You can perform the digital calibration of the reference position for the accelerator position sensor, and check the origin calibration value at the time of injection.

  • Page 152: Tuning 【Mechanic Function

    ―― 7. Main Menu 7.8.3 Tuning 【Mechanic Function】 This screen provides the function to set engine's low idle rotation, select the torque pattern, and fine-tune the speed governing performance. You can make correction within the range according to the emission regulations. 1）Operation tool bar ①...

  • Page 153: Graph Function

    8. Graph Function ―― 8. Graph Function The basic functions to display and operate graphs are common to the following screens. ①［FFD］-［Trend Graph］ ， ②［Diagnostic Test］-［Active Control Graph］ ， ③［Data Logging］-［Trend Graph］ 8.1 Setting the Graphs The following functions are available for graph settings. 1）...

  • Page 154: Saving And Loading Setting Values

    ―― 8. Graph Function 8.1.2 Saving and Loading Setting Values You can save graph settings, and load and use them later. 8.1.2.1 Saving a File ① Opening the Graph Set screen： Click the button on the Operation tool bar. The sub-window opens.

  • Page 155: Digital Mode

    8. Graph Function ―― 8.1.3 Digital Mode This mode is used to display the ON/OFF information of digital inputs/outputs and control flags. You need to know the parameters and bit numbers corresponding to the necessary information in advance. Data items you can select are DIS1, DIS2, DOS1, and DOS2.

  • Page 156: Graph Operations

    ―― 8. Graph Function 8.2 Graph Operations ① Reducing the time axis： You can check a rough data trend by clicking the button to reduce Reduction the time axis. The display magnification is shown to the right of the button. *1 is the minimum.

  • Page 157: Print Function

    9. Print Function, 10. Saving and Loading Data ―― 9. Print Function You can print the displayed screen by clicking the button on the Operation tool bar. 10. Saving and Loading Data You can save data in tabular format into a comma separated value format file by clicking the button on the Operation tool bar.

  • Page 158: Tool Functions

    ―― 11. Tool Functions 11. Tool Functions 11.1 System Setting You can change parameters for the CAN communication. To change the parameters, you need sufficient knowledge about CAN. If you change them incorrectly, the communication may become unavailable. So, do not change them without good reason.

  • Page 159: User Management

    11. Tool Functions ―― 11.2 User Management This screen lets you register new users and change/delete IDs and passwords. Choose the Standard tool bar -［Tool（T） ］-［User Set（U） ］. The sub-window opens. 1）Additional registration There is a restriction to user IDs that can be added depending on the authority of the user ID used to log in. User IDs with a higher authority level than the login user ID cannot be added.

  • Page 160: Changing A Password

    ―― 11. Tool Functions 11.3 Changing a Password This screen is used to change the password for the current login user ID. Change the password periodically. Choose the Standard tool bar -［Tool（T） ］-［Password Change］. The sub-window opens. ① ：Enter the current password. An old password ②...

  • Page 161: Glossary

    12. Glossary，13. Appendix ―― 12. Glossary Block Size Variable related to flow control used in ISO15765. Controller Area Network Communication standard used for in-vehicle LAN. Comma Separated Value File format used for PCs. Destination Address ID information in CAN communication data. D-SUB Connector standard.

  • Page 162: References

    ―― 14. References 14. References For information on details of "Probable cause" and "Action" displayed when a trouble occurs, see the separate manual "Troubleshooting Manual."...

This manual is also suitable for:

Yanmar 3tnv82a-bYanmar 3tnv88-zYanmar 3tnv88-uYanmar 3tnv88-eYanmar 4tnv84t-zYanmar 3tnv82a-z ... Show all

Table of Contents
