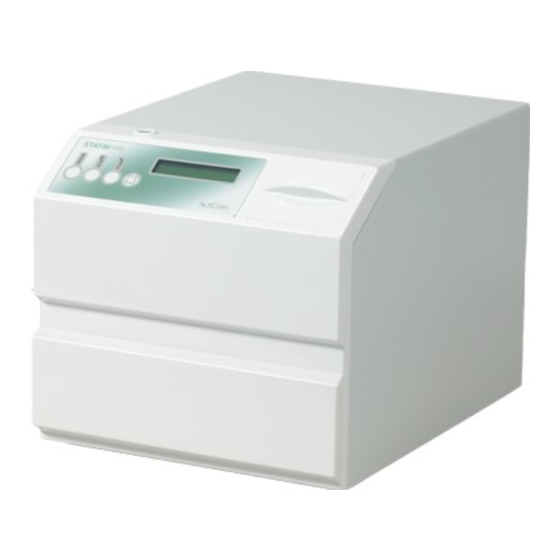

- Page 1 STATIM 900J AUTOCLAVE ® • Operator’s Manual...
-
Page 2: Table Of Contents
3.2 Unit Placement 5.4 Spare Parts List 3.3 Connecting The Waste Bottle 3.4 Filling The Statim Reservoir 6. Troubleshooting 3.5 Priming The Statim 900J Pump Problems ......22 3.6 Language Selection 7. The Communication Port ..24 3.7 Setting the Time and Date 7.1The RS232 Communication Port... -
Page 3: Introduction
Because of the unique operation of the Statim 900J, once the instruments are exposed to ambient conditions, their continued sterility cannot be assured. It is recommended to use these instruments immediately after they are comfortable to the touch. -
Page 4: Important Information
Do not permit any person other than certified personnel to supply parts for, service or maintain your Statim. SciCan shall not be liable for incidental, special or consequential damages caused by any maintenance or services... -
Page 5: Unit Overview
Disconnect supply before servicing When you recieve your Statim 900J packing carton, the items listed below will be included.If any of the items are missing, contact your dealer immediately so the situation can be corrected. Waste Bottle Power Cord... -
Page 6: Installation
Statim. Avoid multiple outlet receptacles. If using a surge suppressor power bar, plug in one Statim only. 3.2 Unit Placement To stabilize the Statim 900J, follow these steps: Figure 3 Align the bubble (1) in the level indicator... -
Page 7: Connecting The Waste Bottle
3.4 Filling the Statim Reservoir To fill the reservoir, follow these steps: 1. Remove the reservoir cap from the top of the Statim 900J and pour only steam- process distilled water into the reservoir until nearly full (a maximum of 3 litres). -
Page 8: Priming The Statim 900J Pump
2. Press and hold down the Hollow or Wrapped Instrument Cycle button on the front of the Statim 900J, and turn the power switch at the back of the unit ON. Release the Solid Instrument Cycle button. The current language selection will appear. -
Page 9: Preparing The Unit For Use
3.9 Shipping the Statim 900J If you must ship the Statim 900J, follow these instructions: 1. Drain the water from the reservoir. Carefully turn the Statim 900J backwards. Locate the drain tube beside the power switch on the back of the unit. -
Page 10: Instructions For Use
STATIM 900J Operator’s Manual 4. Instructions for Use 4.1 Using The Sterilization Chamber Drawer The Statim 900J keypad has four buttons. The first three buttons will initiate one of the three different sterilization cycles. These cycles are described in detail in section 4.4 Selecting A Cycle. -
Page 11: Preparing And Loading Instruments
Pouch each instrument individually. Place one pouch on the bottom rack and another one on the top rack of the basket. The Statim 900J unit does not have an active drying process and handling of wet pouches will compromise the sterility of the instruments. - Page 12 • Routine Monitoring SciCan recommends that chemical process indicators suitable for steam sterilizers be used in routine monitoring of the Statim 900J. Of the many brands on the market, it is important to choose the correct type. Use only indicators designed for steam sterilization at 134°C for the Solid Instrument and Hollow or...
-
Page 13: Instrument Mass Guide
3M Attest™ biological indicators or contact the manufacturer directly. To use the indicators with the Statim 900J, follow these steps: 1. Place the appropriate biological indicator in the Statim 900J chamber. 2. Process the load in the sterilizer according to your usual practice. -
Page 14: Selecting A Cyle
Because of the unique operation of the Statim 900J, once the instruments are exposed to ambient conditions, their continued sterility cannot be assured. It is recommended to use these instruments immediately after they are comfortable to the touch. - Page 15 STATIM 900J Operator’s Manual 4. Instructions for Use 2. Hollow or Wrapped Instrument Cycle The Hollow or Wrapped Instrument Cycle is used to sterilize dental handpieces. The maximum recommended load for the Handpiece cycle is 1.0 kg. To select this cycle, press the Hollow or Wrapped Instrument Cycle button.
-
Page 16: Running A Cycle
STATIM 900J Operator’s Manual 4. Instructions for Use 4.5 Running a Cycle To operate each cycle, follow these steps and watch the LCD: Turn the power switch at the back of STATIM 900J R1.11 the unit ON. The LCD display reads:... - Page 17 Once exposed to a non-sterile environment at the end of a complete cycle, the continued sterility of the chamber contents can no longer be assured. Therefore, the Statim 900J should only be used for the prevention of cross-contamination, unless other steps are taken to ensure continued sterility.
-
Page 18: Stopping A Cycle
STATIM 900J Operator’s Manual 4. Instructions for Use 4.6 Stopping a Cycle To stop a cycle, press the MULTIFUNCTION button. If the MULTIFUNCTION button is pushed, or the unit detects a problem while operating, the cycle will stop and the amber active light will flash. Once a cycle has been interrupted, the MULTIFUNCTION button must be pressed before another cycle can be started. -
Page 19: Maintenance
5. Maintenance 5.1 Cleaning the Chamber It is good clinical practice to keep your Statim 900J sterilization chamber clean. We recommend that the interior surface of the chamber be cleaned at least once a week with dishwashing soap or mild detergent that does not contain chlorine. - Page 20 STATIM 900J Operator’s Manual 5. Maintenance The schedules below describes the necessary actions. Operator Daily Chamber Wash the interior of the sterilization chamber with a chlorine-free dishwashing detergent or soap. Rinse thoroughly with water. Unit After a week or period of extended non-use, run the first cycle with an empty load.
-
Page 21: Spare Parts List
STATIM 900J Operator’s Manual 5. Maintenance 5.4 Spare Parts List 01-100204S Exhaust Tube 01-101561S Packaging 01-101565S Condenser Bottle 01-101582S Replacement Cap 01-103636S Wire Basket Complete 01-104343S Plug - Drain Tubing 01-101562S Statim 900J Drawer 2OZPLUS Stat Dri Plus 2oz. bottle w/sprayer... -
Page 22: Troubleshooting Problems
Check that water was not spilled when refilling the the Machine reservoir. We recommend that you use a funnel when filling your Statim 900J . Make sure the plug in the drain tube is secured. If the leak persists, unload the chamber, unplug the unit, and call your dealer. - Page 23 The level of water in the reservoir is low. Refill the RESERVOIR” and reservoir, using steam-process distilled water and “EMPTY WASTE empty the waste bottle. Refer to the steps described BOTTLE”. Machine in Maintaining the Statim 900J. will not start.
-
Page 24: The Communication Port
For your Statim to communicate to a specific device, you must enable this function through the User Setup menu. Follow the instructions in section 7.2 Installing the SciCan Data Logger below to enable communication to either an external printer or the SciCan Data Logger. -
Page 25: Installing The Scican Data Logger
7.2 Installing the SciCan Data Logger SciCan’s USB Data Logger can record and store cycle information onto a mass storage device (MSD) such as a USB Flash Drive or SD memory card. These instructions are for units with a 9-pin communication (RS232) port located at the back of the unit. - Page 26 STATIM 900J Operator’s Manual 7. The Communication Port Setting the Serial Port Bitrate to 9600 Serial Port Biterate 9600 1. From the User Setup menu, use the Solid Instrument and Hollow or Wrapped Instrument Cycle buttons to scroll to the Serial Port Bitrate menu and select it using the Rubber and Plastic Cycle button.
- Page 27 Connecting the SciCan Data Logger 1. Ensure that both the Statim unit and the SciCan Data Logger are OFF. 2. Connect the SciCan Data Logger to the Statim unit by using the serial cable. 3. Power up the SciCan Data Logger HH:MM DD/MM/YYYY 4.
-
Page 28: Cycle Printout Overview
STATIM 900J Operator’s Manual 7. The Communication Port 7.3 Cycle Printout Overview Statim 900J SJ00R604 1. Model: STATIM 900J software: SJ00R604 Unit # : 2. Unit Identifier: autoclave CYCLE NUMBER 00006 has been set up as number 000 16:10 04/12/2007 3. -
Page 29: Warranty
STATIM 900J Operator’s Manual 8. Limited Warranty For a period of one year, SciCan Ltd. guarantees that the STATIM 900J, when manufactured by SciCan Ltd. in new and unused condition, will not fail during normal service due to defects in material and workmanship that are not due to apparent abuse, misuse, or accident. -
Page 30: Statim 900J Specifications
STATIM 900J Operator’s Manual 9. Statim 900J Specifications Length 384 mm (15.1 inches) Machine Dimensions Width 293 mm (11.5 inches) Height 282 mm (11.1 inches) Length 190 mm (7.5 inches) Chamber Size Width 90 mm (3.54 inches) Height 53 mm (2.1 inches) Usable volume: 3.0 litres (102 fl.oz.) - Page 31 STATIM 900J Operator’s Manual...
