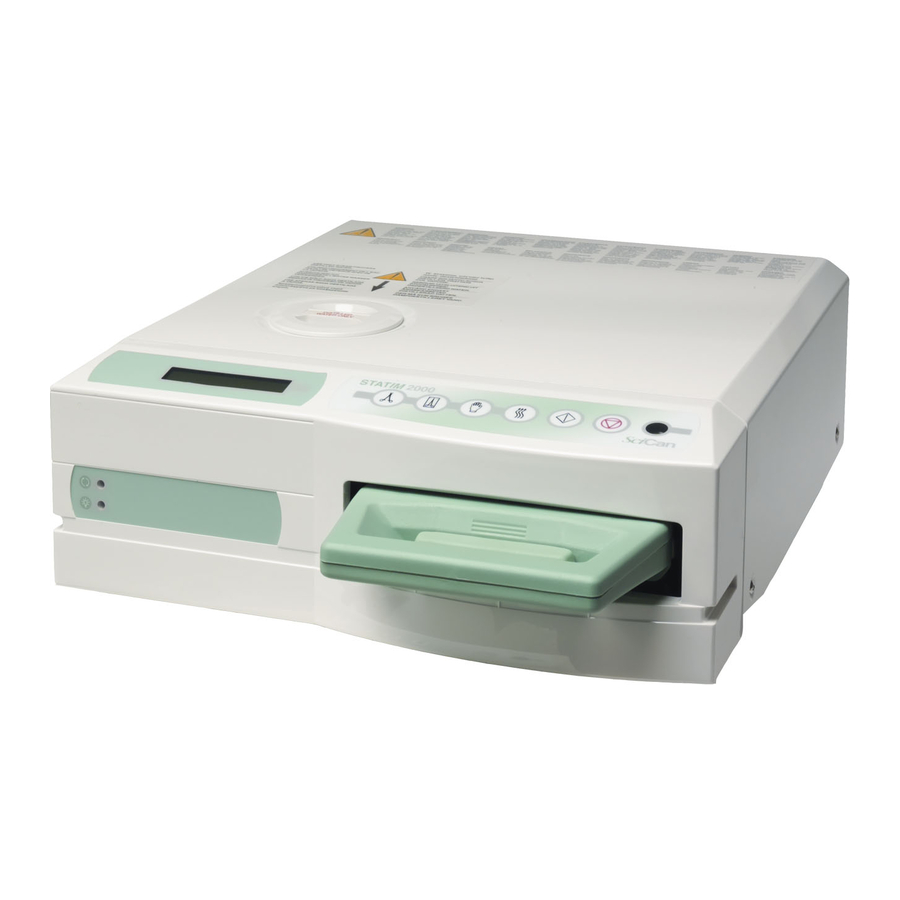

Statim 2000 & 5000

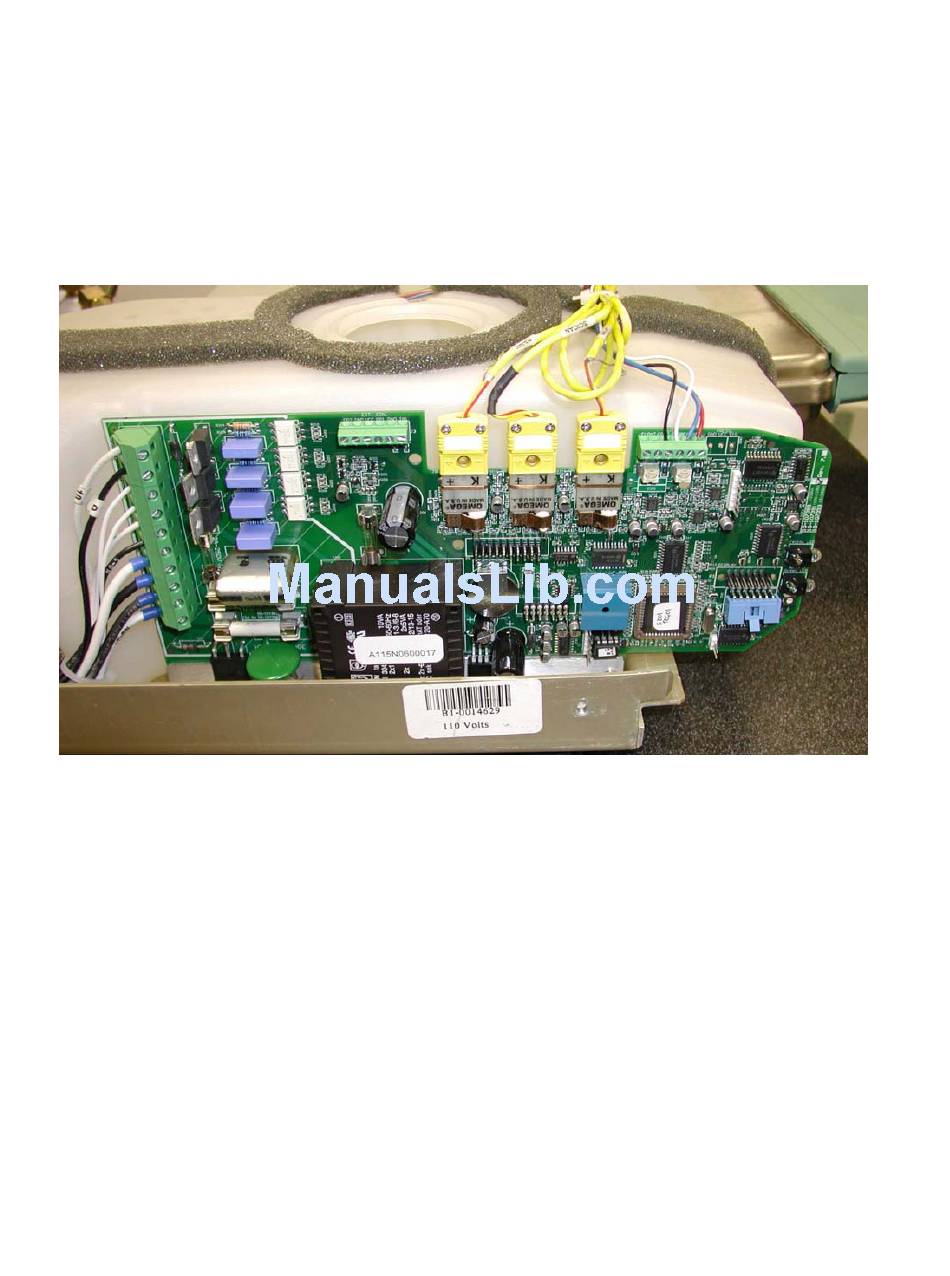

Rev. 7 PCB
Field
Training Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Statim 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for SciCan Statim 2000

Summary of Contents for SciCan Statim 2000

  • Page 1 Statim 2000 & 5000 Rev. 7 PCB Field Training Manual...

  • Page 2: User Setup Mode

    Statim Rev. 7 PCB User Setup User setup mode – To initially setup your Statim Hold down the Stop button and turn the unit ON. >Time/Date Setup Language Setup Unit ID Setup Water Quality Last Printout RS232 End Of Line CR/LF Serial Port Bit rate Printer user º...
  • Page 3 Language Setup – Display information in your desired language N. A. ENGLISH Available Languages N. A. English (North American English) U. K. English (United Kingdom English) Francais (French) Deutsch (German) Espanol (Spanish) Italiano (Italian) Dansk (Danish) Portugues Nederlands Japanese Svenska (Swedish) Polski (Polish) Magyar (Hungarian) Cesky (Czech)

  • Page 4: Water Quality

    Water Quality – Display detected water quality >Water Quality CD= x.xuS/NNN/y.yppm Screen Representation Water conductivity in uS (micro-Siemens) Water conductivity in ADC (Analog to Digital converter) counts (0…255) Water quality in ppm (parts per million) Keypad: Rubber and Plastics Return to main menu Stop Exit menu to normal mode of operation Last Printout...
  • Page 5 Select previous option. Second line shows the new value Rubber and Plastics Save & exit to main menu Stop Exit and return to normal mode of operation Printer user ° char SciCan Suggested End Of Line Serial Port Bit Rate External Printers CR/LF Epson...

  • Page 6: Save And Exit

    Serial Port Bit Rate – Choose bit rate for device connected to the serial port (Used with printer) Serial Port Bit Rate 9600 19200 57600 115200 1200 2400 4800 If USB FLASH/MSD is selected as the RS232 device, a Serial Port Bit Rate selection of 9600 will be required for the Data Logger to be operational.
  • Page 7 Statim Rev. 7 PCB Service Setup Service setup mode – To enter the Service Setup Mode, turn power switch ON while holding down Unwrapped and Wrapped buttons. The Service Setup Mode is password protected, a password must be entered to continue. The default password is, Unwrapped, Wrapped, Rubber and Plastics, Stop buttons pressed in this order.
  • Page 8 Time/Date Setup Mode – Set the proper time and date 18:00 07/09/2008 HH:MM MM/DD/YYYY Keypad: Unwrapped Increase current field (the flashing value on the display) Wrapped Decrease current field (the flashing value on the display) Rubber and Plastics Select next field Stop Save &...
  • Page 9 Unit ID Setup – Associate unit with an ID number (Used with printer) Unit # Keypad: Unwrapped Decrease current field (the flashing value on the display) Wrapped Increase current field (the flashing value on the display) Rubber and Plastics Select next digit Stop Save &...
  • Page 10 Water Cnd Tmp Comp - To enable or disable water conductivity temperature compensation >Water Cnd Tmp Comp Keypad: Unwrapped Select next option Second line shows the new value Wrapped Select previous option. Second line shows the new value Rubber and Plastics Select and return to main menu Stop Exit, without saving, to normal mode of operation...
  • Page 11 Devices Test On/Off – Toggle the unit’s devices on or off >Devices Test On/Off Pump Off Valve Off Compressor Off Yellow LED Off Extra 1L Off Extra 2L Off Drawer Relay Off Keypad: Unwrapped Select next option. Second line shows the new value Wrapped Select previous option.

  • Page 12: Voltage Calibration

    Voltage Calibration – Adjust voltage offsets (not used for Statim 2000 & 5000) >Voltage Calibration V = VVV VCal = CCC Screen Representation Voltage measured by unit Voltage calibration offset. This should be adjusted so that the VVV value is the same as the line voltage measured by the voltmeter.
  • Page 13 Select previous option. Second line shows the new value Rubber and Plastics Save & exit to main menu Stop Exit and return to normal mode of operation Printer user ° char SciCan Suggested End Of Line Serial Port Bit External Printers CR/LF Rate...

  • Page 14: Factory Default

    Serial Port Bit Rate – Choose bit rate for device connected to the serial port (Used with printer) Serial Port Bit Rate 9600 19200 57600 115200 1200 2400 4800 If USB FLASH/MSD is selected as the RS232 device, a Serial Port Bit Rate selection of 9600 will be required for the Data Logger to be operational.

  • Page 15: Change Password

    Change Password – Change the password required to access the service menu The unit will query for a 4 key password Type New Password **** The unit will require that the user re-enter the same 4 key password Type New Password **** The unit will confirm that the password has been changed or if changing the password failed, the unit will again query for a new 4 key password...
  • Page 16 Save and Exit – Saving settings and return to normal mode of operation Upon selection, current settings are saved and unit restarts in normal mode of operation Exit – Exit menu without saving settings Upon selection, current settings are discarded, not saved and unit restarts in normal mode of operation Water Pump Type –...
  • Page 17 Statim Rev. 7 PCB Revision 600 Software Low Threshold Water Conductivity Setup To correct Refill Reservoir/Empty Waste Bottle message Turn power switch ON while holding down Unwrapped and Wrapped buttons to enter Service Mode. The Service Mode is password protected, enter password to continue, default password is: Unwrapped, Wrapped, Rubber and Plastics and Stop buttons pressed in this order.
  • Page 18 Statim Rev. 7 PCB Water Conductivity Circuit Calibration 1. Disconnect conductivity sensor wires (J4-3 & J4-4). 2. Using a wire, short together the float pins (J4-5 & J4-6). 3. Turn power switch ON while holding down Unwrapped and Wrapped buttons to enter Service Mode.
  • Page 19 Statim Rev. 7 PCB Validation Thermocouple Calibration 1. Turn power switch ON while holding down Unwrapped and Wrapped keys to enter Service Mode. 2. The Service Mode is password protected, enter password to continue, default password is: Unwrapped, Wrapped, Rubber and Plastics and Stop keys pressed in this order. Keypad function at this time: Unwrapped Key: Select next item in the menu...
