Power Supply

The kit is powered through the USB port and contains two LDO regulators, one to generate 3.3V for the
on-board debugger, and an adjustable LDO regulator for the target microcontroller ATtiny1607 and its
peripherals. The voltage from the USB connector can vary between 4.4V to 5.25V (according to the USB
specification) and will limit the maximum voltage to the target. The figure below shows the entire power
supply system on ATtiny1607 Curiosity Nano.

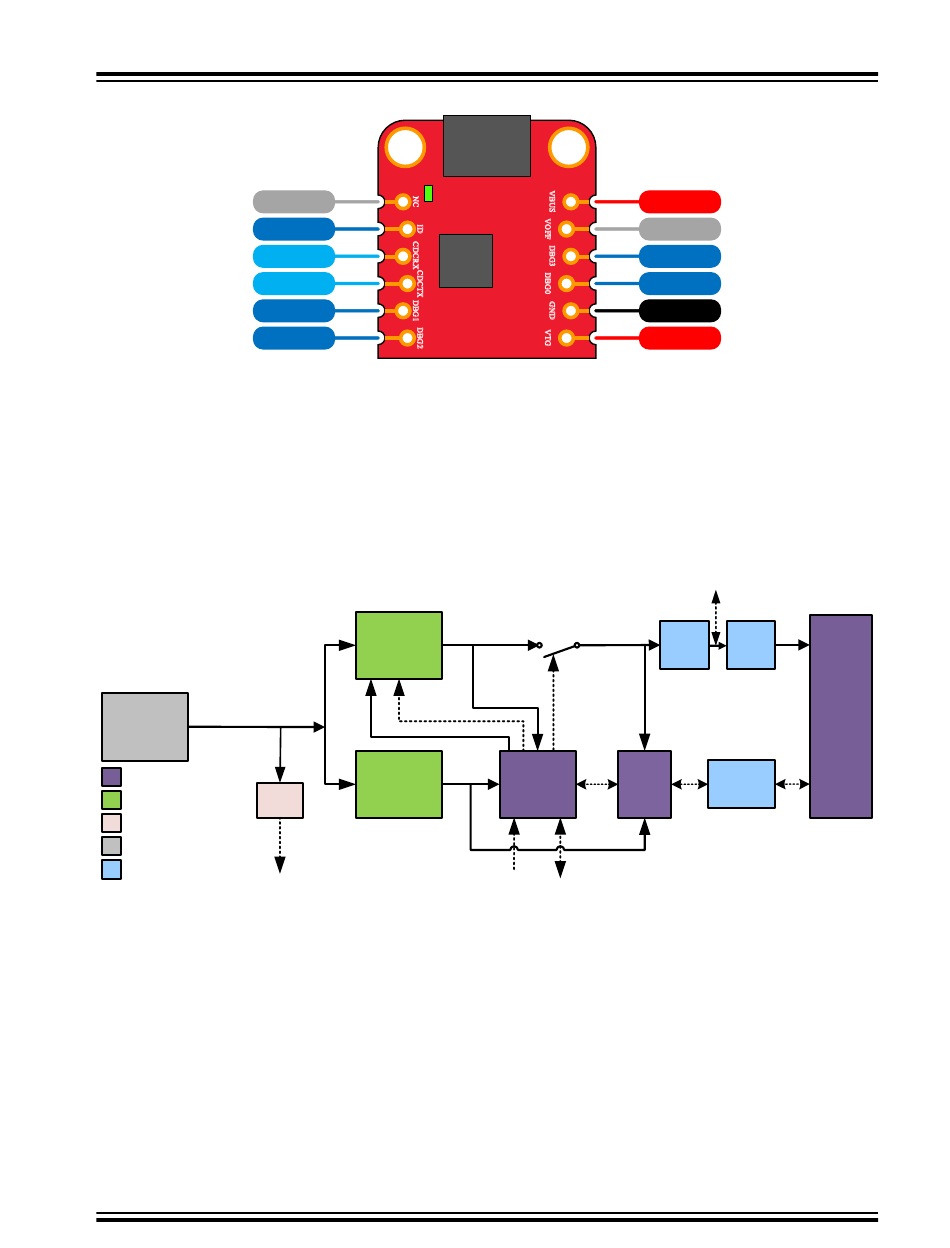

Figure 3-2. Power Supply Block Diagram
VUSB
USB
Power consumer
Power converter
Power protection
Power source
Cut strap
3.3.1

Target Regulator

The target voltage regulator is a MIC5353 variable output LDO. The on-board debugger can adjust the
voltage output supplied to the kit target section by manipulating the MIC5353's feedback voltage. The
hardware implementation is limited to an approximate voltage range from 1.7V to 5.1V. Additional output
voltage limits are configured in the debugger firmware to ensure that the output voltage never exceeds
the hardware limits of the ATtiny1607 microcontroller. The voltage limits configured in the on-board
debugger on ATtiny1607 Curiosity Nano are 1.8-5.1V.
©
