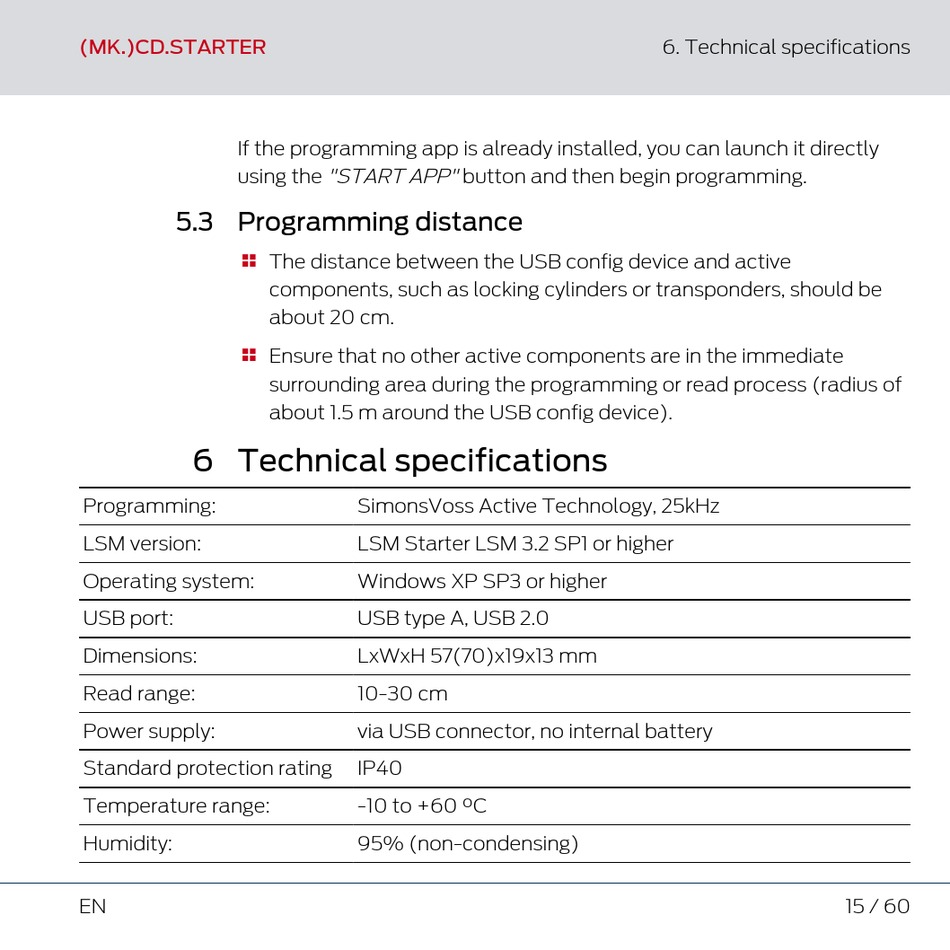

Programming Distance; Technical Specifications - Simons Voss Technologies MK.CD.STARTER Quick Manual

(MK.)CD.STARTER
If the programming app is already installed, you can launch it directly
using the "START APP" button and then begin programming.

5.3 Programming distance




6 Technical specifications

Programming:
LSM version:
Operating system:
USB port:
Dimensions:
Read range:
Power supply:
Standard protection rating
Temperature range:
Humidity:
EN
The distance between the USB config device and active
components, such as locking cylinders or transponders, should be
about 20 cm.
Ensure that no other active components are in the immediate
surrounding area during the programming or read process (radius of
about 1.5 m around the USB config device).
SimonsVoss Active Technology, 25kHz
LSM Starter LSM 3.2 SP1 or higher
Windows XP SP3 or higher
USB type A, USB 2.0
LxWxH 57(70)x19x13 mm
10-30 cm
via USB connector, no internal battery
IP40
-10 to +60 °C
95% (non-condensing)
6. Technical specifications
15 / 60
