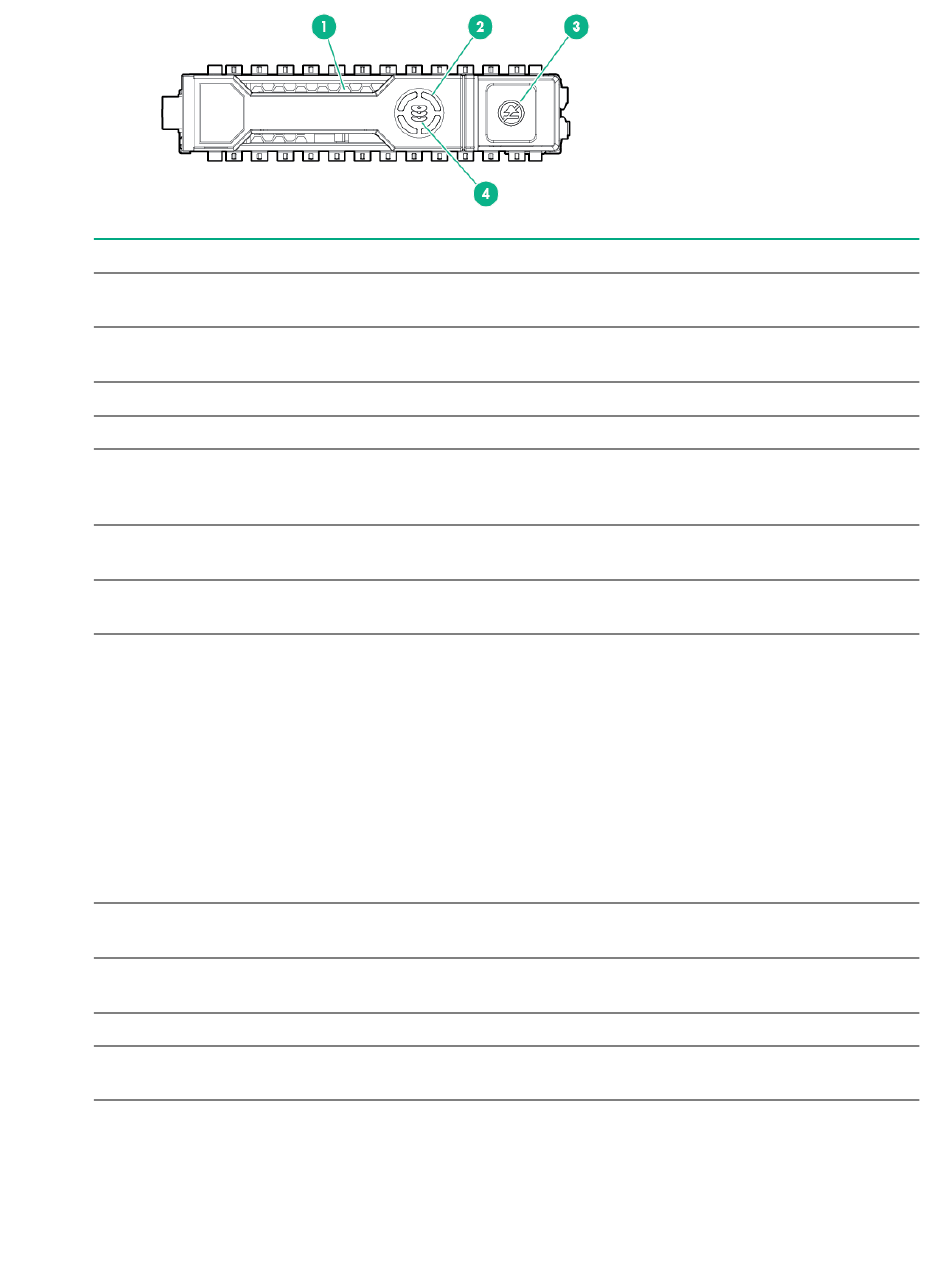

Item LED
1 Locate
2 Activity ring
3 Do not remove
4 Drive status
1
The blue Locate LED is behind the release lever and is visible when illuminated.
22 Features
Status
1
Solid blue
Flashing blue
Rotating green
Off
Solid white
Off
Solid green
Flashing green
Flashing amber/green
Flashing amber
Solid amber
Off
Definition
The drive is being identified by a host
application.
The drive carrier firmware is being updated
or requires an update.
Drive activity
No drive activity
Do not remove the drive. Removing the
drive causes one or more of the logical
drives to fail.
Removing the drive does not cause a logical
drive to fail.
The drive is a member of one or more
logical drives.
The drive is doing one of the following:
• Rebuilding
• Performing a RAID migration
• Performing a capacity expansion
• Performing a logical drive extension
• Erasing
• Spare drive activation
The drive is a member of one or more
logical drives and predicts the drive will fail.
The drive is not configured and predicts the
drive will fail.
The drive has failed.
The drive is not configured by a RAID
controller or is a spare drive.
