Additionally to the PLC logic, the project contains:
 5 LEDs for free use in the program (LEDs)
– Each LED uses 2 bit in the process output data of the device. They are automatically mapped to
the output bits %QX8000.0 to QX8001.1 (see
 Local IO (Local_IO)
– Process data and configuration of the device's local I/Os and the VAUX diagnostics
– Diagnostics of the local I/Os and module status.
 2 serial interfaces (COM0 and COM1)
– Connection of RS232 and RS485 devices
 1 CAN interface (CANbus)
Use of the device as CANopen Device, CANopen Manager or as 
–
SAE J1939 Manager
2.3

Configuring the Network

Double clicking the entry "Device (TBEN-Lx-PLC-1x)" opens the "device" tab.
 Scan the network for TBEN-L...-PLC-10 via the "scan network..." button and select the device.

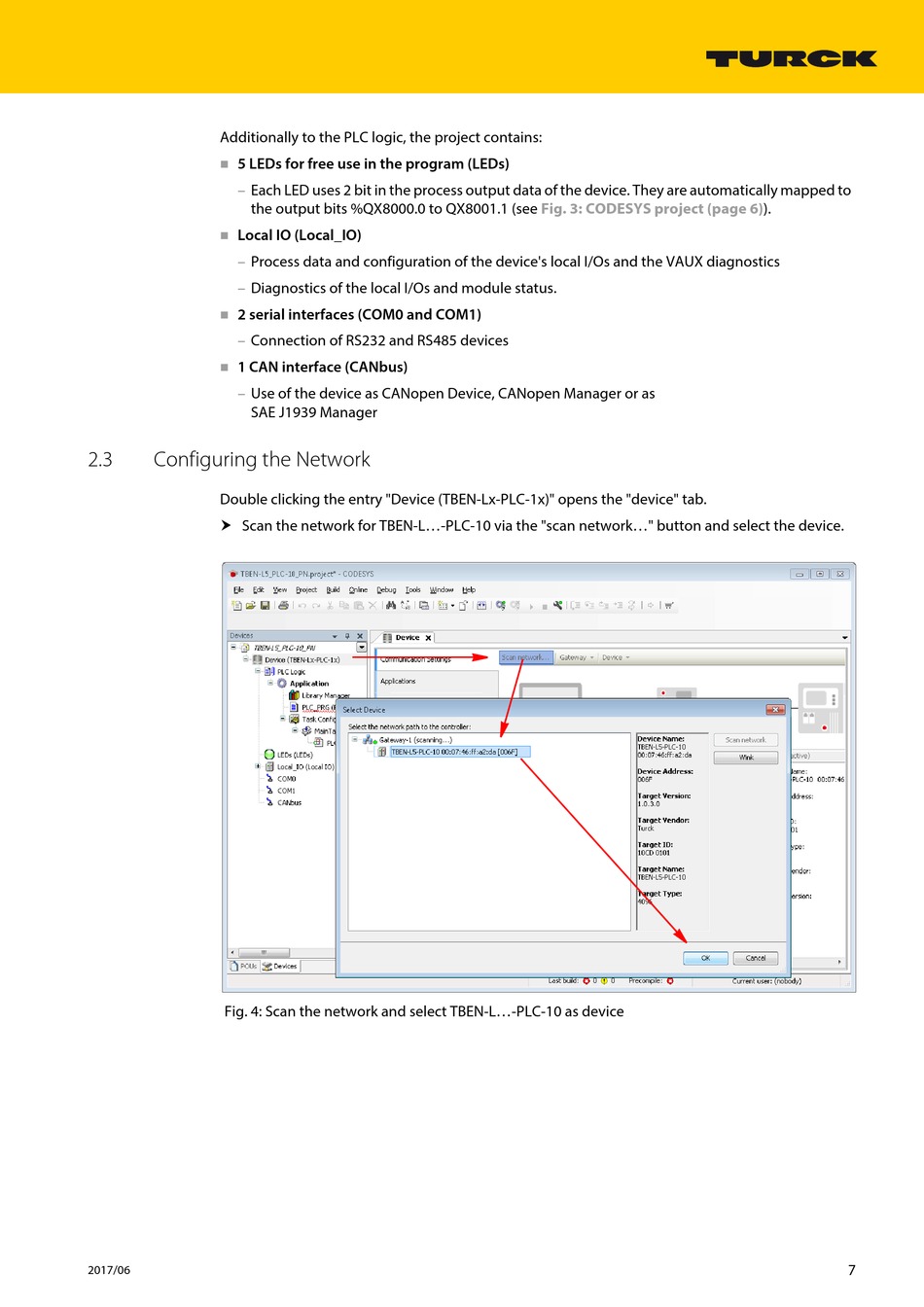

Fig. 4: Scan the network and select TBEN-L...-PLC-10 as device
