Using the Device as PROFINET Device
Which data will be mapped into the configured input and output data, depends on assignments in
the PLC program or in the I/O mapping of the TBEN-L-PLC-. 

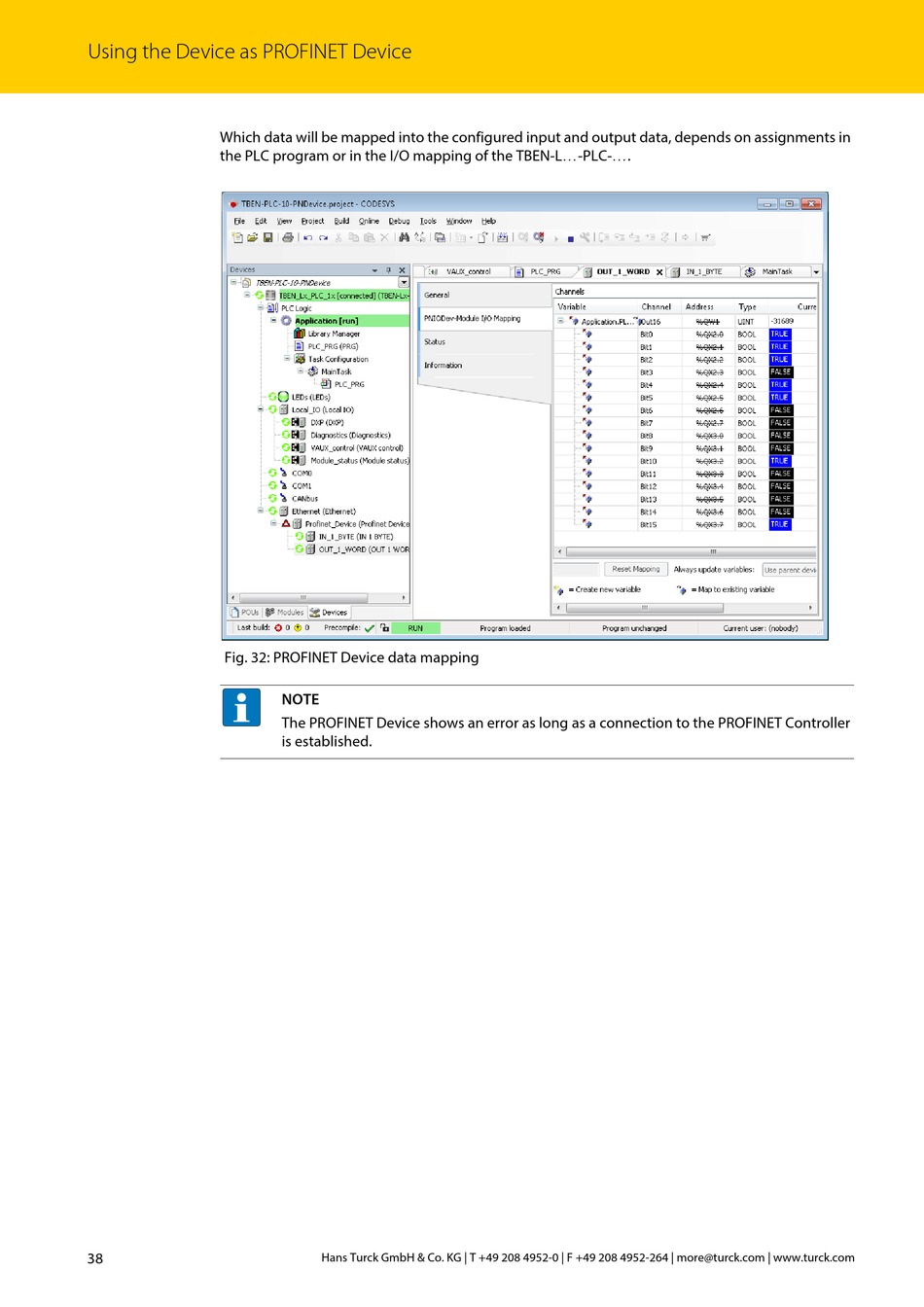

Fig. 32: PROFINET Device data mapping
38
NOTE
The PROFINET Device shows an error as long as a connection to the PROFINET Controller
is established.
