Configuring the Empty Slots 6 – 8 (Diagnostics, IO-Link-Events, Module Status)
The empty slots 6 to 8 allow the mapping of channel diagnostics, IO-Link Events and the modules
status to the process image of the IO-Link master.
Select the entry for the respective empty slot using the "Plug device..." function.

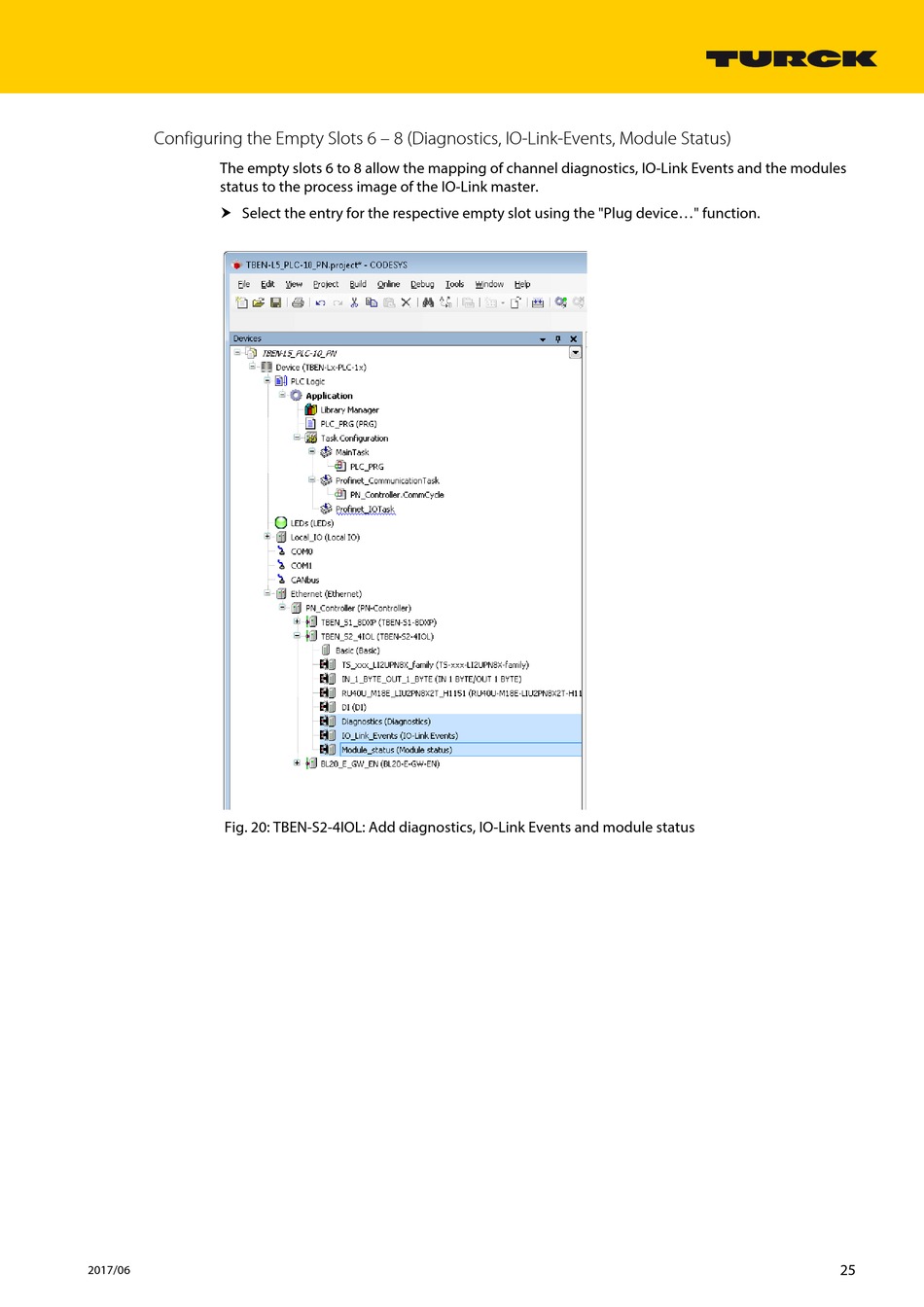

Fig. 20: TBEN-S2-4IOL: Add diagnostics, IO-Link Events and module status
25
2017/06
