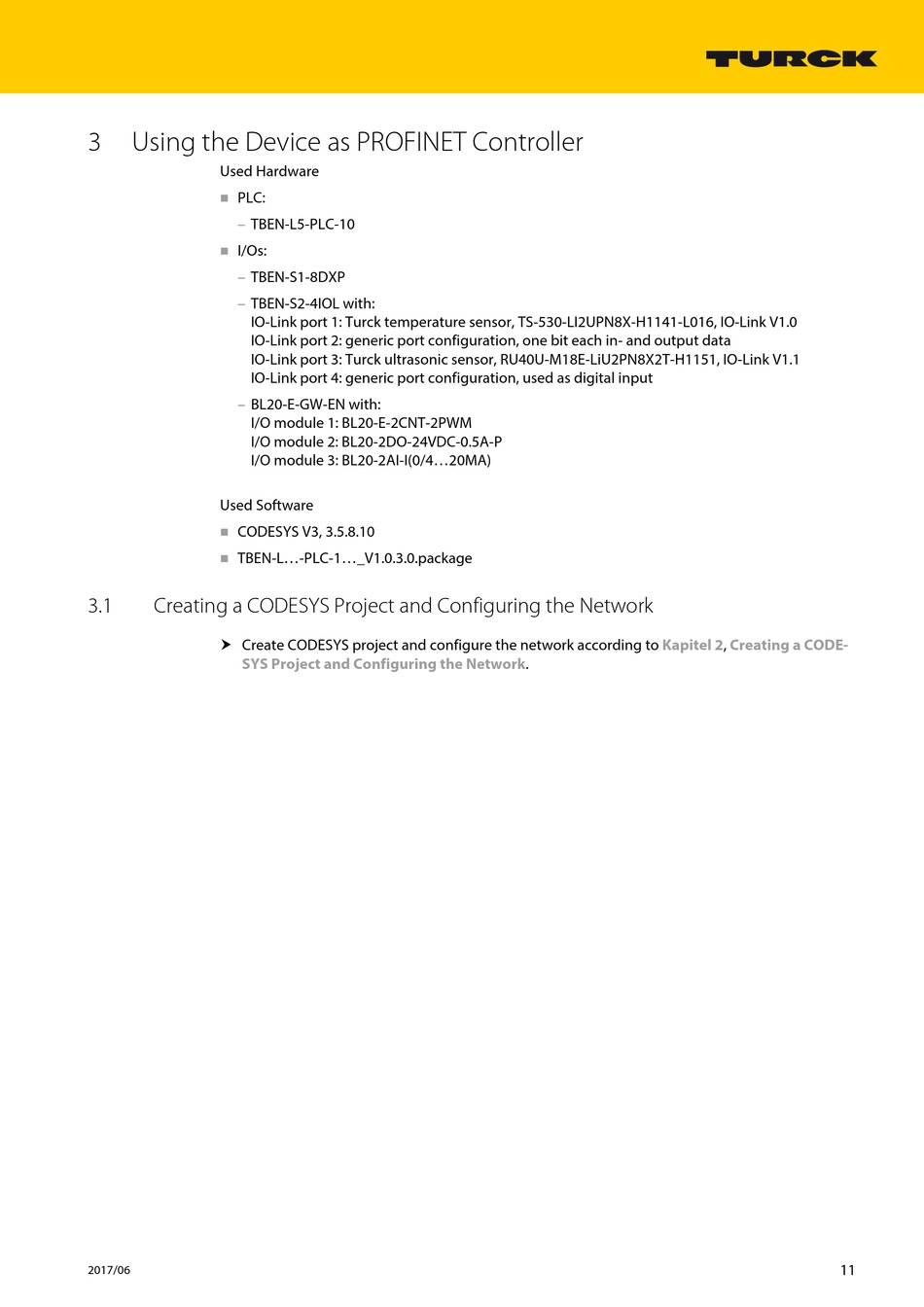

Using the Device as PROFINET Controller

Used Hardware
 PLC:
– TBEN-L5-PLC-10
 I/Os:
– TBEN-S1-8DXP
– TBEN-S2-4IOL with:
IO-Link port 1: Turck temperature sensor, TS-530-LI2UPN8X-H1141-L016, IO-Link V1.0
IO-Link port 2: generic port configuration, one bit each in- and output data 
IO-Link port 3: Turck ultrasonic sensor, RU40U-M18E-LiU2PN8X2T-H1151, IO-Link V1.1
IO-Link port 4: generic port configuration, used as digital input
– BL20-E-GW-EN with:
I/O module 1: BL20-E-2CNT-2PWM
I/O module 2: BL20-2DO-24VDC-0.5A-P
I/O module 3: BL20-2AI-I(0/4...20MA)
Used Software
 CODESYS V3, 3.5.8.10
 TBEN-L...-PLC-1..._V1.0.3.0.package
3.1

Creating a CODESYS Project and Configuring the Network

 Create CODESYS project and configure the network according to
SYS Project and Configuring the
2017/06
Network.
Kapitel 2, Creating a CODE-
